Ignition Coil: Service and Repair

Ignition Coil Housing Replacement

Removal Procedure

1. Remove the accelerator and cruise control cables from the bracket, if equipped.
2. Remove the bracket.
3. Remove the ignition control module (ICM).

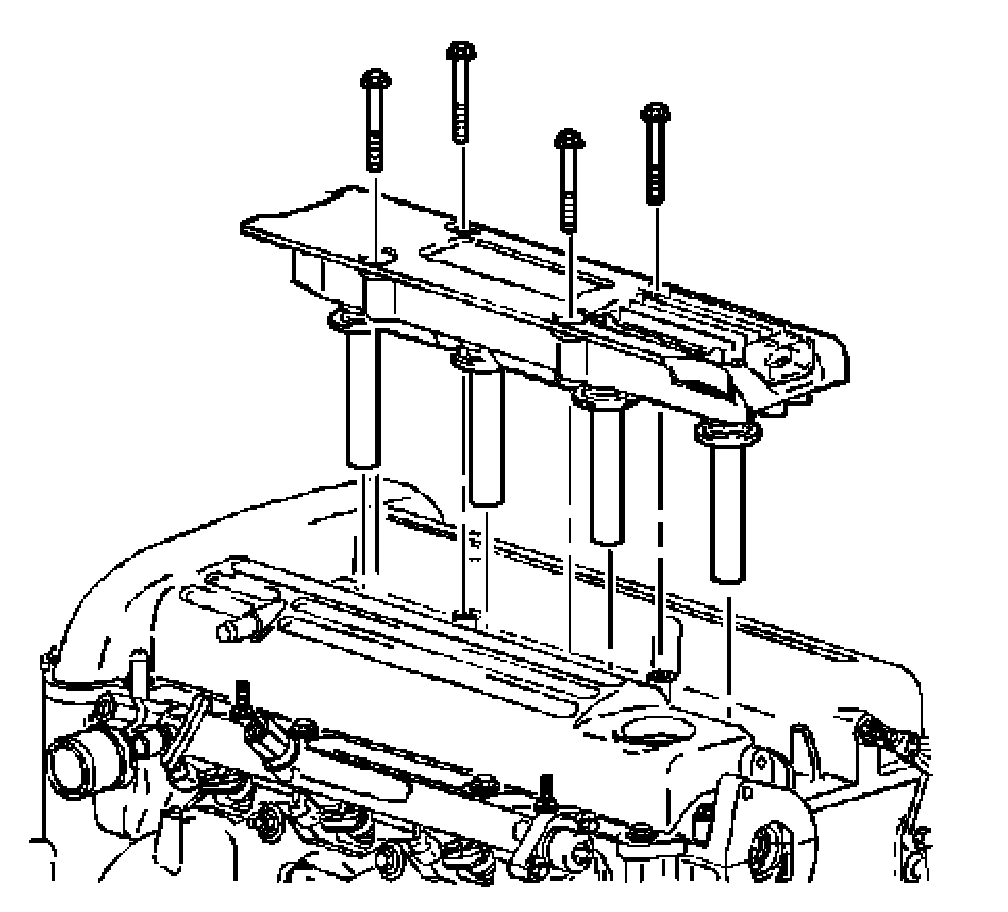

4. Remove the ignition coil housing retaining bolts.
5. Remove the ignition coil housing from the camshaft cover.

Installation Procedure




1. Install the ignition coil housing to the camshaft cover.

Notice: Refer to Fastener Notice.

2. Install the ignition coil housing retaining bolts.

Tighten the retaining bolts to 10 N.m (89 lb in).

3. Install the ICM.
4. Install the accelerator and cruise control cables bracket.
5. Install the accelerator and cruise control cables bracket bolts.

Tighten the retaining bolts to 10 N.m (89 lb in).

6. Install the accelerator and cruise control cables to the bracket.
