Positive: Service and Repair



Battery Positive Cable Replacement (2.2L (L61))

Removal Procedure

Important:
* Always use replacement cables that are of the same type, diameter and length of the cables that you are replacing.

* Always route the replacement cable the same way as the original cable.

1. Disconnect the negative battery cable from the battery.
2. Disconnect the positive battery cable from the battery.




3. Remove the UHJB cover (1).
4. Disconnect the positive battery cable (2) from the UHJB.

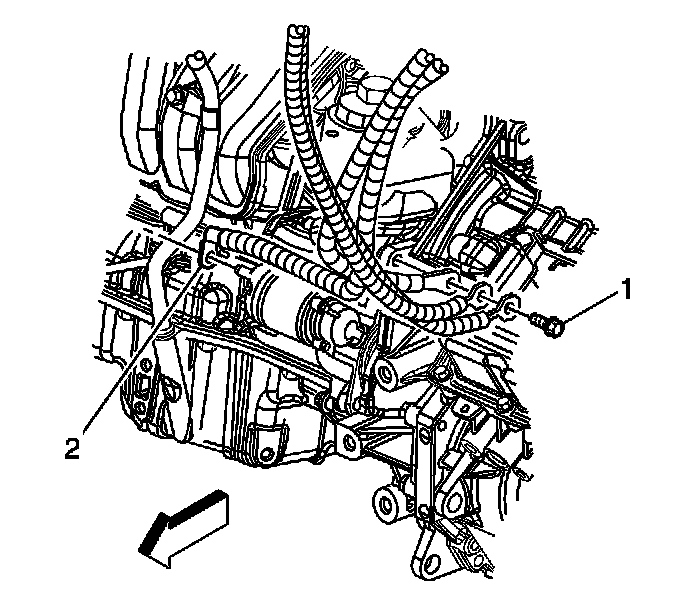

5. Disconnect the positive battery cable from the starter (2).
6. Disconnect the positive battery cable from the retainers.
7. Disconnect the positive battery cable from the generator.
8. Remove the positive battery cable from the vehicle.

Installation Procedure




1. Route the battery cable through the engine compartment and connect to the cable retainers.
2. Connect the positive battery cable to the generator.
3. Connect the positive battery cable to the starter (2).






Notice: Refer to Fastener Notice.

4. Connect the positive battery cable to the UHJB (2).

Tighten the positive cable to UHJB to 17 N.m (13 lb ft).

5. Install the UHJB cover (1).
6. Connect the positive battery cable to the battery.
7. Connect the negative battery cable.
