Steering Column Trim Covers Replacement



Steering Column Trim Covers Replacement

Removal Procedure

1. Disable the SIR system.

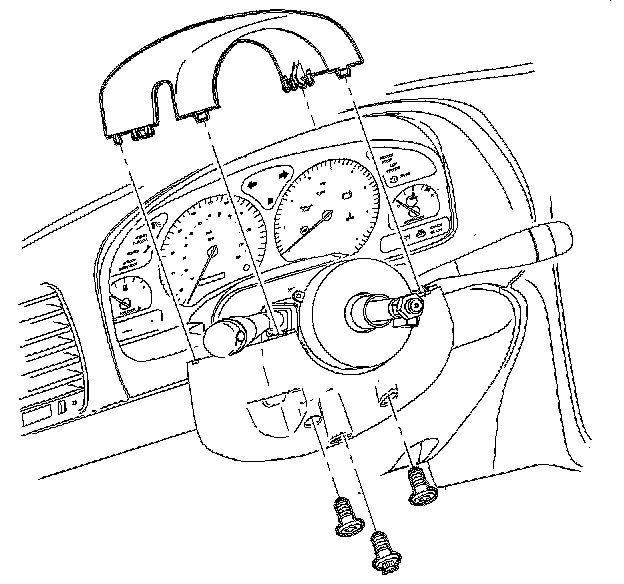

2. Remove the upper to lower steering column cover fasteners.
3. Unsnap and remove the upper steering column cover.
4. Remove the lower steering column cover screws.




5. Unsnap and remove the ignition switch bezel.
6. Remove the lower trim cover.

Installation Procedure

1. Position the upper and lower shrouds.




2. Apply light pressure until they snap in place.




3. Install the ignition switch bezel.

Notice: Refer to Fastener Notice.

4. Install the steering column fasteners.

Tighten the lower steering column cover screws to 2 N.m (18 lb in).

5. Enable the SIR system.
