Cruise Control Connector End Views



Cruise Control Connector End Views

Steering Wheel Control Switch - Left

Steering Wheel Controls - Left:

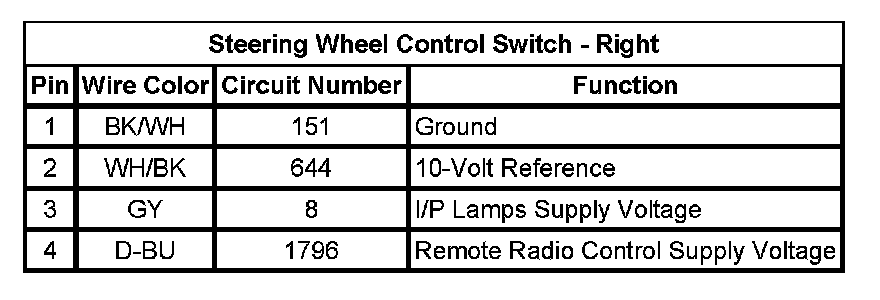

Steering Wheel Control Switch - Right

Steering Wheel Controls - Right (UK3):
