Operation CHARM
: Car repair manuals for everyone.
Home
>>
Saturn
>>
2007
>>
VUE FWD L4-2.4L Hybrid
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
Master Connector List
Master Connector List

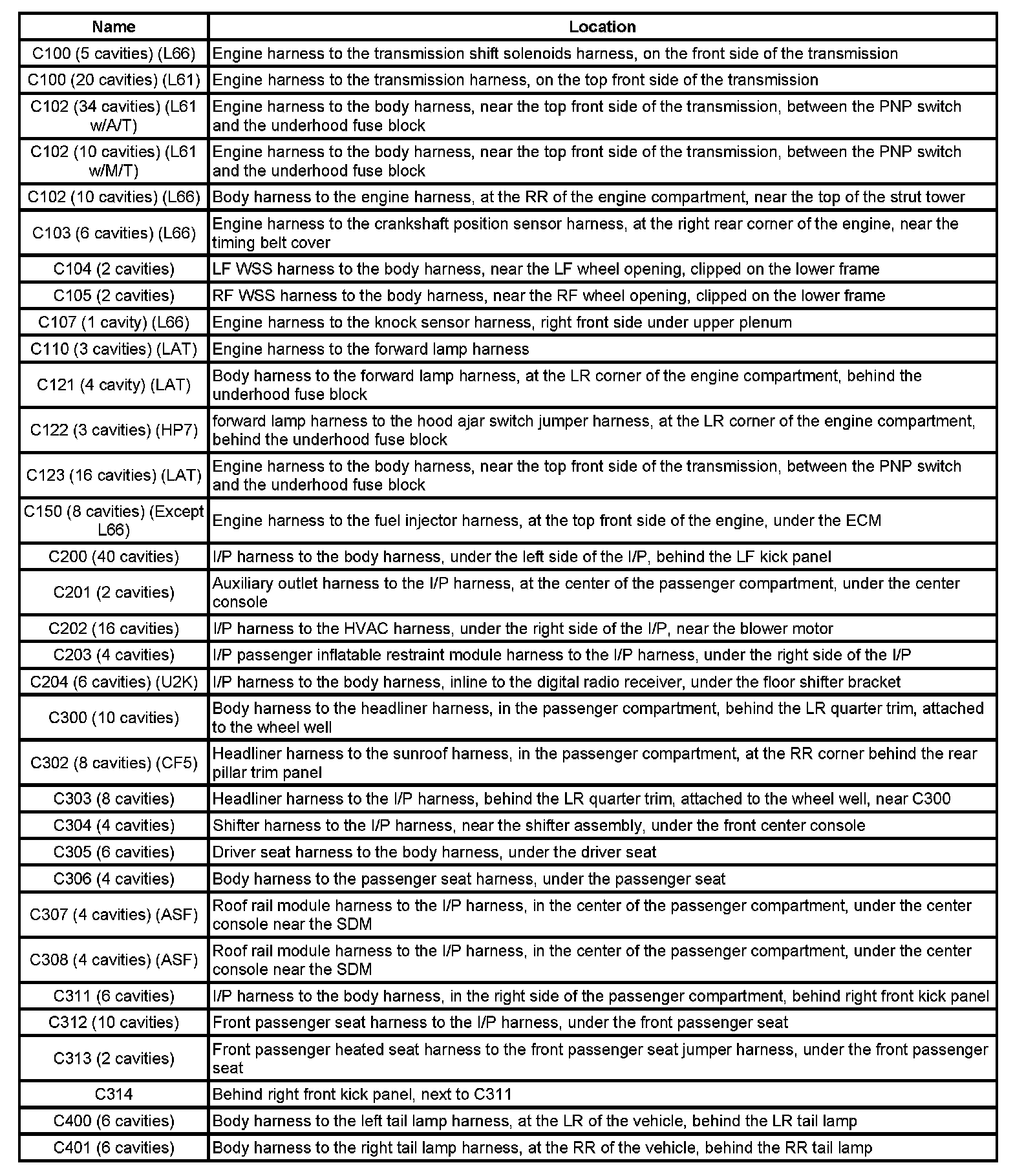

C100 - C401:

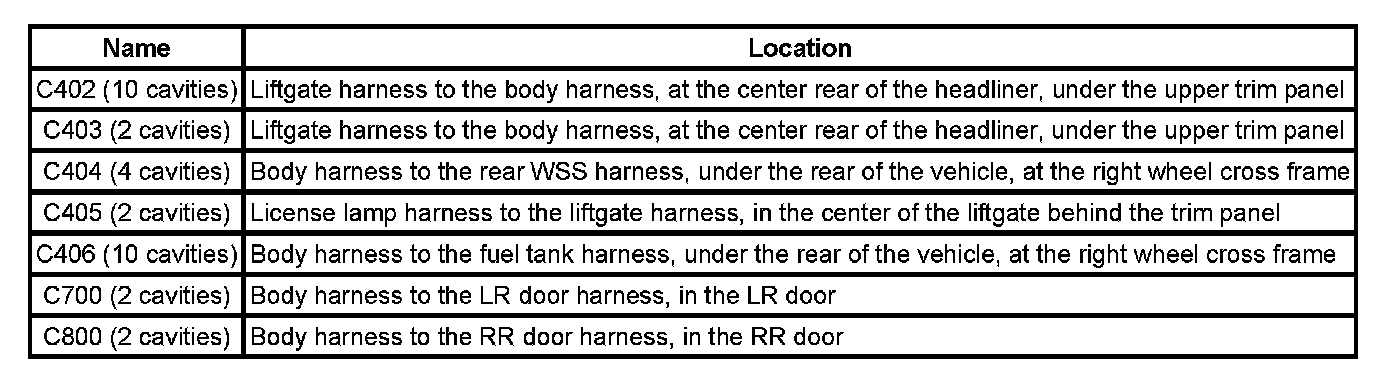

C402 - C800:
