C303

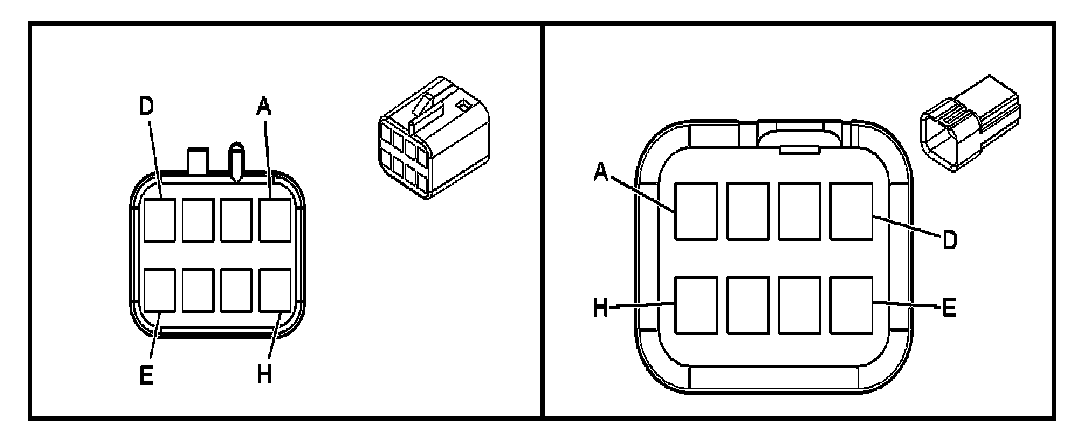

Inline Harness Connector End Views

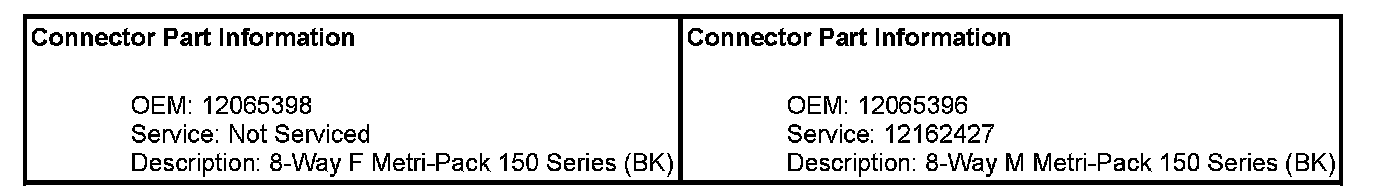

C303 - Body Harness to the Battery Disconnect Unit Harness (HP7)
