Mainshaft Components

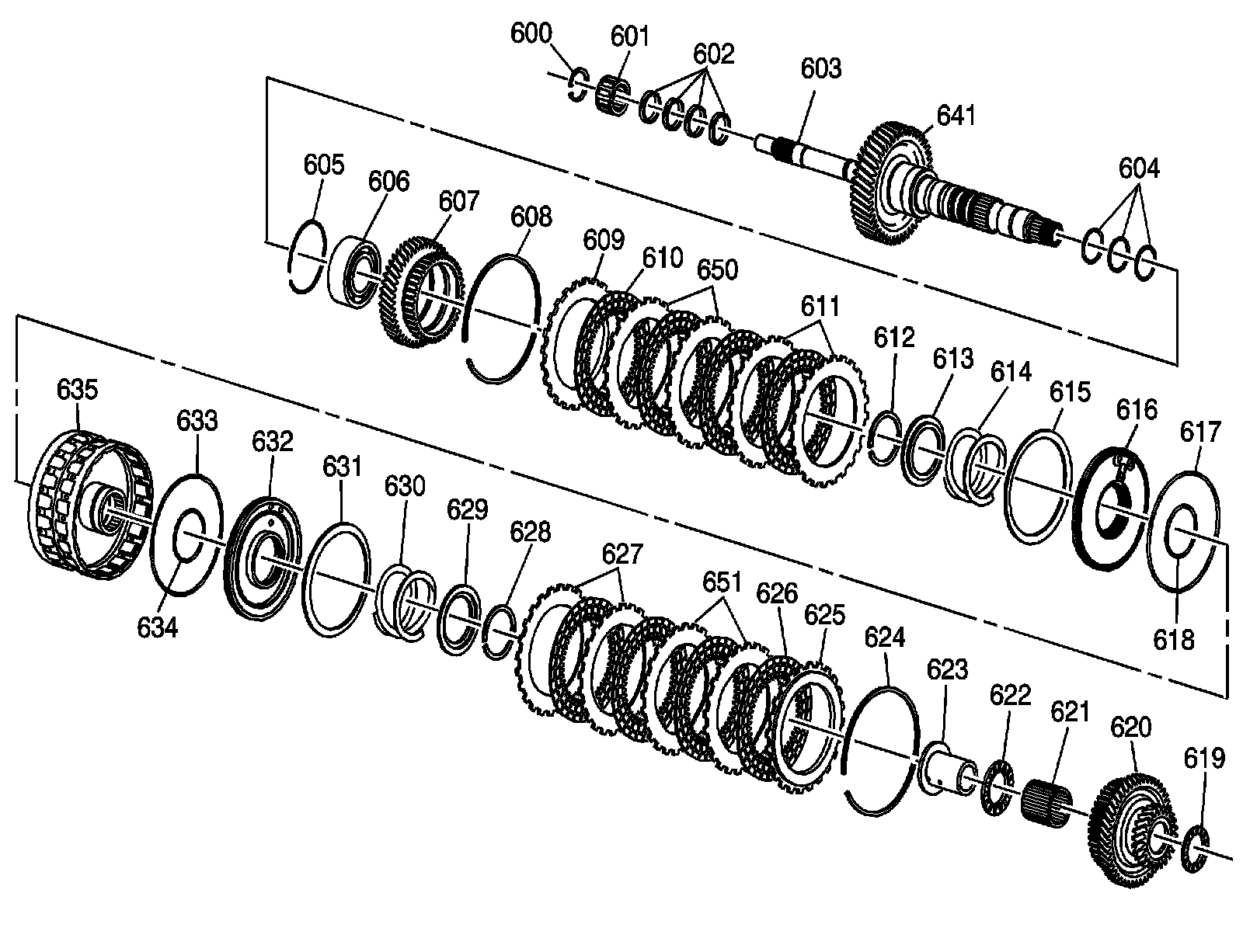

Disassembled Views

Mainshaft Components

Mainshaft Components:

600 - Mainshaft Front Bearing Retainer Ring - 23 mm
601 - Mainshaft Front Bearing - 23 x 31 x 21.8 mm
602 - Mainshaft Fluid Passage Seal - 31 mm
603 - Mainshaft
604 - 4th /5th Reverse Clutch Housing Fluid passage O-ring Seal - 33 x 1.9 mm
605 - 4th Drive Gear and Hub Bearing Retainer Ring - 81 mm
606 - 4th Drive Gear and Clutch Hub Bearing - 38 x 78 x 37/27 mm
607 - 4th Drive with Clutch Hub Gear
608 - 4th Clutch Backing Plate Retainer Ring - 137 mm
609 - 4th Clutch Selective Backing Plate
610 - 4th Clutch Fiber Plate Assembly
611 - 4th Clutch Steel Flat Plate
612 - 4th Clutch Piston Retainer Ring - 44 mm
613 - 4th Clutch Piston Retainer Cap
614 - 4th Clutch Piston Return Spring
615 - 4th Clutch Spring Plate
616 - 4th Clutch Piston
617 - 4th Clutch Piston Outer Seal - 119.1 x 2.3 mm
618 - 4th Clutch Piston Inner Seal - 44.1 x 2.2 mm
619 - 5th/Reverse Drive Gear and Clutch Hub End Bearing - 40 x 53 x 2.5 mm
620 - 5th/Reverse Drive Gear with Clutch Hub Gear
621 - 5th/Reverse Drive Gear and Clutch Hub Inner Bearing - 40 x 46 x 34 mm
622 - 5th/Reverse Drive Gear and Clutch Hub End Bearing - 40 x 59 x 3 mm
623 - 5th/Reverse Drive Gear and Clutch Hub Bearing Race - 33 x 40 x 48.7 mm
624 - 5th/Reverse Clutch Backing Plate Retainer Ring - 137 mm
625 - 5th/Reverse Clutch Selective Backing Plate
626 - 5th/Reverse Clutch Fiber Plate Assembly
627 - 5th/Reverse Clutch Steel Flat Plate
628 - 5th/Reverse Clutch Piston Retainer Ring - 44 mm
629 - 5th/Reverse Clutch Piston Retainer Cap
630 - 5th/Reverse Clutch Piston Return Spring
631 - 5th/Reverse Clutch Spring Plate
632 - 5th/Reverse Clutch Piston Assembly
633 - 5th/Reverse Clutch Piston Outer Seal - 119.1 x 2.3 mm
634 - 5th/Reverse Clutch Piston Inner Seal - 44.1 x 2.2 mm
635 - 4th/5th/Reverse Clutch Housing Assembly
641 - 1st, 2nd, and 3rd Drive Gear
650 - 4th Clutch Steel Wave Plate
651 - 5th/Reverse Clutch Steel Wave Plate
