Rear Side Door Window Replacement

Rear Side Door Window Replacement

Removal Procedure




1. Remove the rear door outer belt seal.
2. Remove the inner rear door trim panel.

3. Remove the rear door water deflector.
4. Remove the rear door lower speaker to access the forward edge of the glass.
5. Lower window to access window bolts.

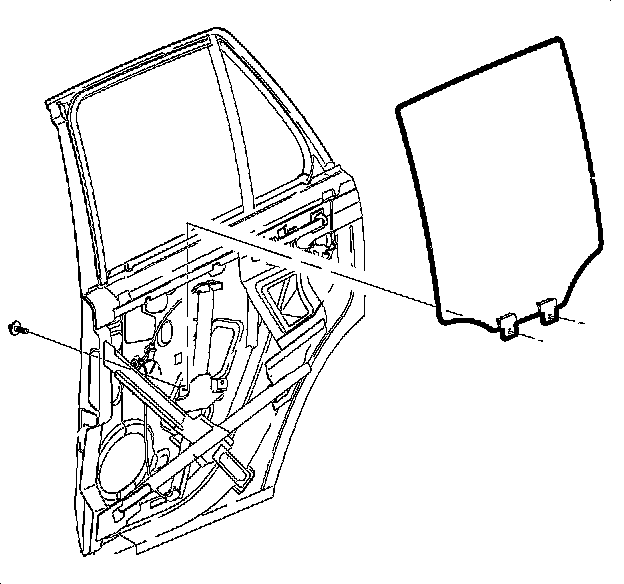

6. Remove the window bolts.
7. Pull the window out of the window regulator guide plate.
8. Slide the window down and out of the primary glass run channels.
9. Remove the window by tilting outboard and pulling the window out of the door through the door belt opening.

Installation Procedure




1. Install the window glass by sliding the window into the door through the outside door belt opening.
2. Install the window into the primary glass run channels and rest the window on the regulator guide plate.

Notice: Refer to Fastener Notice.

3. Install the window bolts.

Tighten the bolts to 10 N.m (89 lb in).

4. Install the rear door lower speaker.
5. Install the rear door water deflector.
6. Install the rear inner door trim panel.
7. Install the rear door outer belt seal.
8. Operate the window to inspect the operation.
