67. Oil Pump Pipe and Screen Assembly Installation

Oil Pump Pipe and Screen Assembly Installation

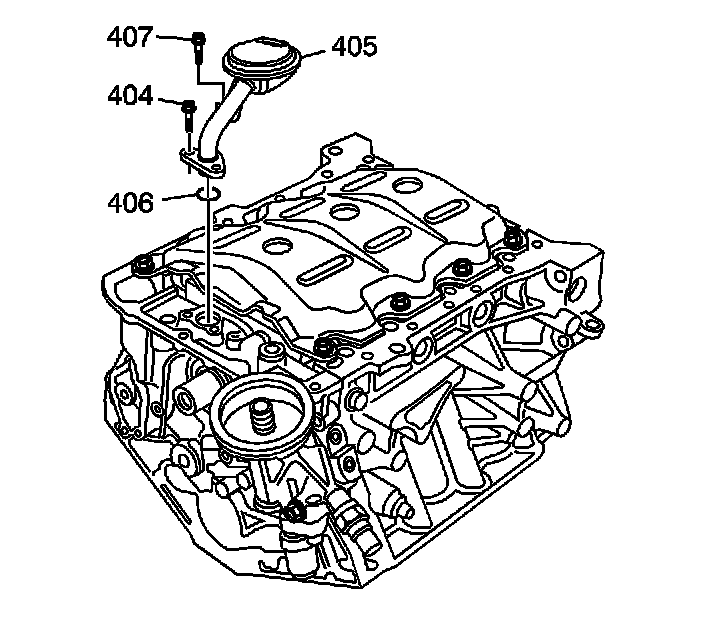

1. Install a NEW O-ring (406).

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the screen (405) and bolts (404, 407).

Tighten the bolts to 12 N.m (106 lb in).
