Power Distribution Diagram 3

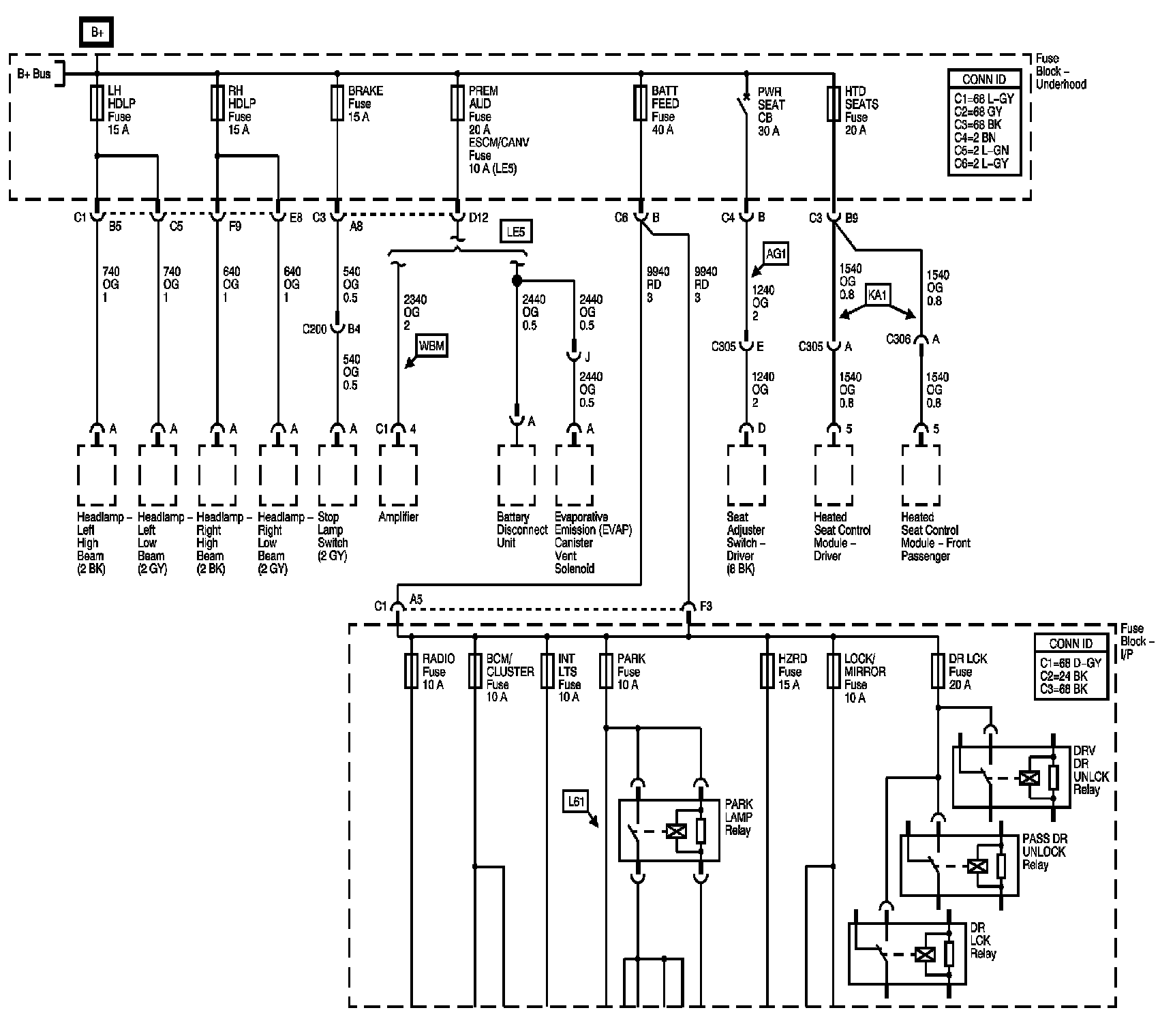

Power Distribution Schematics

PWR SEAT Circuit Breaker, LH HDLP, RH HDLP, BRKE, PREM AUD, BATT FEED, and HTD SEATS Fuses






Next Diagram: Power Distribution Diagram 4

Previous Diagram: Power Distribution Diagram 2

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
