Shift Interlock Solenoid: Locations
Shift Lock Control Component Views

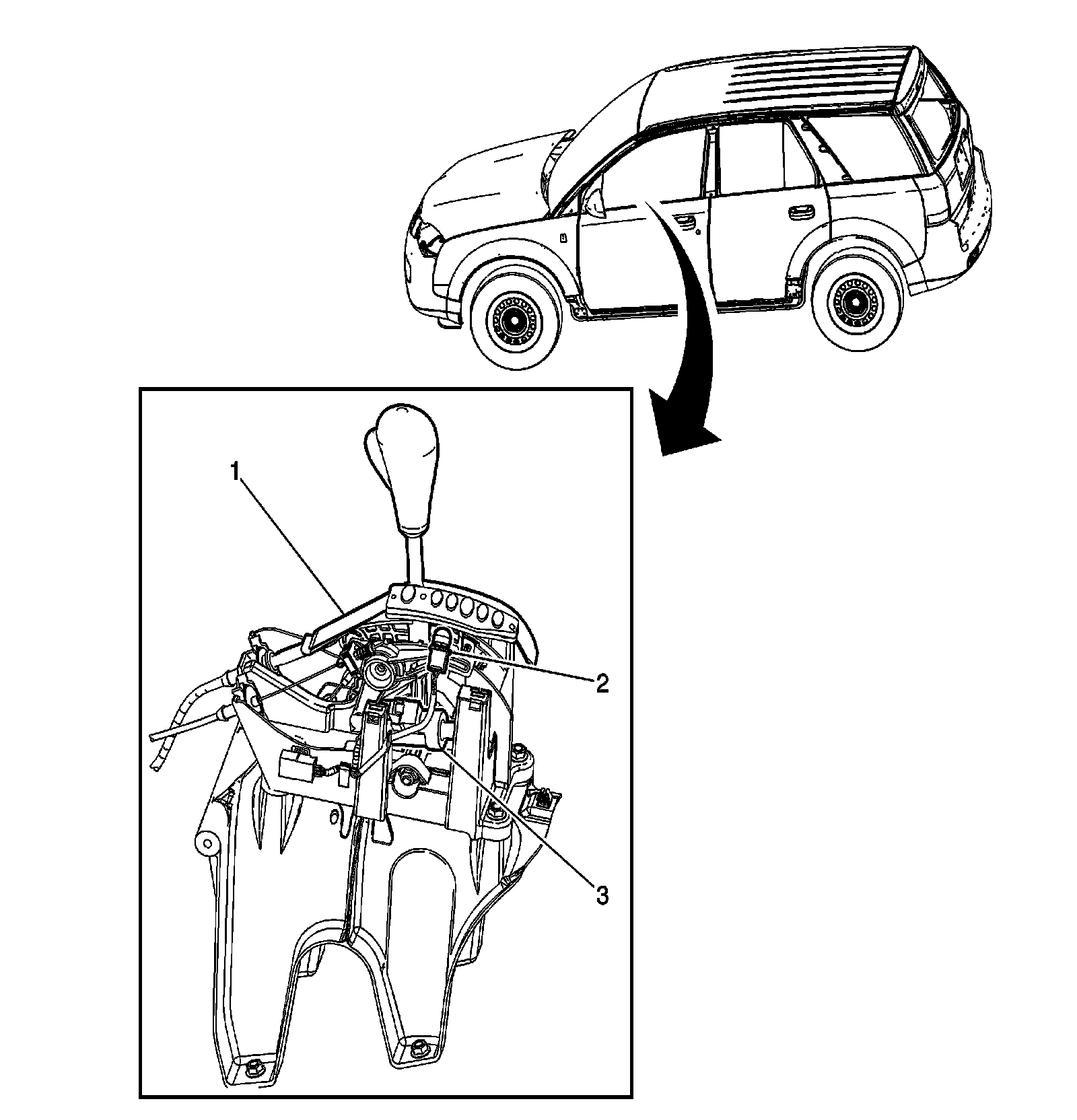

Floor Shift Components
Floor Shift Components:
1 - Floor Shift Assembly
2 - PRNDL Lamp
3 - A/T Shift Lock Control Solenoid (A/T)
Shift Lock Control Component Views
Floor Shift Components
1 - Floor Shift Assembly
2 - PRNDL Lamp
3 - A/T Shift Lock Control Solenoid (A/T)
