Control Valve Assembly and Transmission Fluid Pressure Switch Installation

Control Valve Assembly and Transmission Fluid Pressure Switch Installation




1. Install the control valve body assembly (18) onto the spacer plate with bonded gaskets (90).

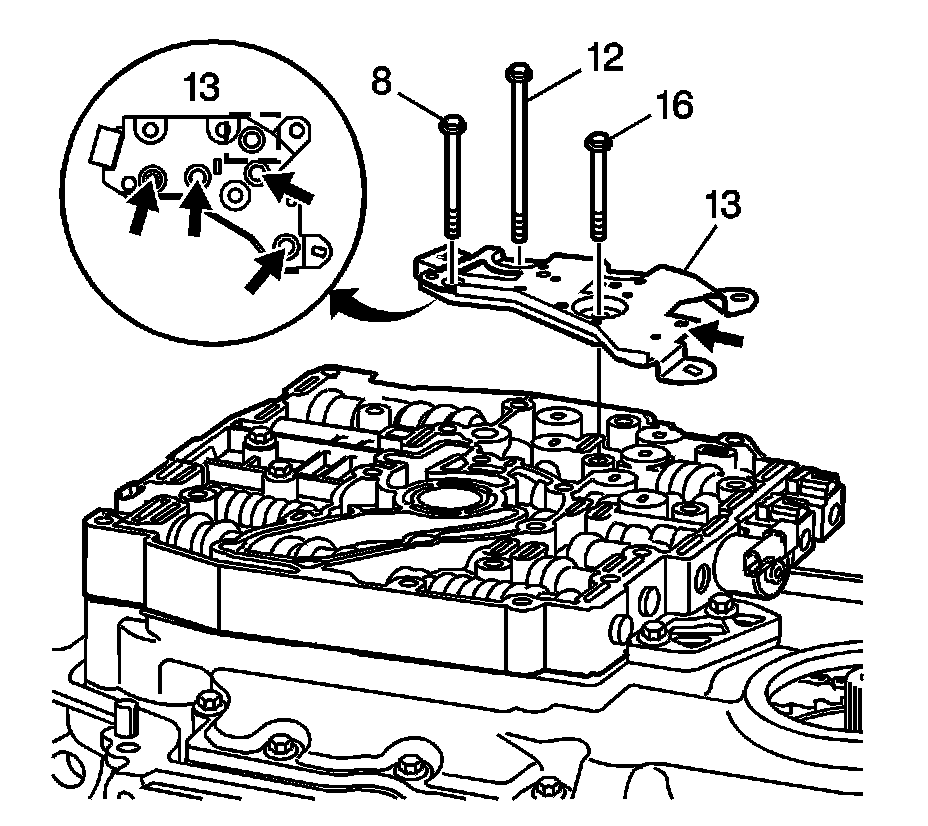

2. Inspect the TFP switch assembly (13) in order to verify the condition and correct location of the pressure switch O-rings.
3. If necessary replace the pressure switch assembly (13).




4. Install the TFP switch assembly (13) onto the control valve body assembly.




5. Install the 18 control valve body assembly bolts.





Notice: Refer to Fastener Notice in Service Precautions.

6. Hand start the bolts.

Tighten the bolts to 14 N.m (124 lb in).
