Front Seat Replacement - Bucket

Front Seat Replacement - Bucket

Removal Procedure

Caution: Refer to SIR Caution (SIR Caution).
1. Disable the SIR System. Refer to SIR Disabling and Enabling (Service and Repair).
2. Move the seat full forward.

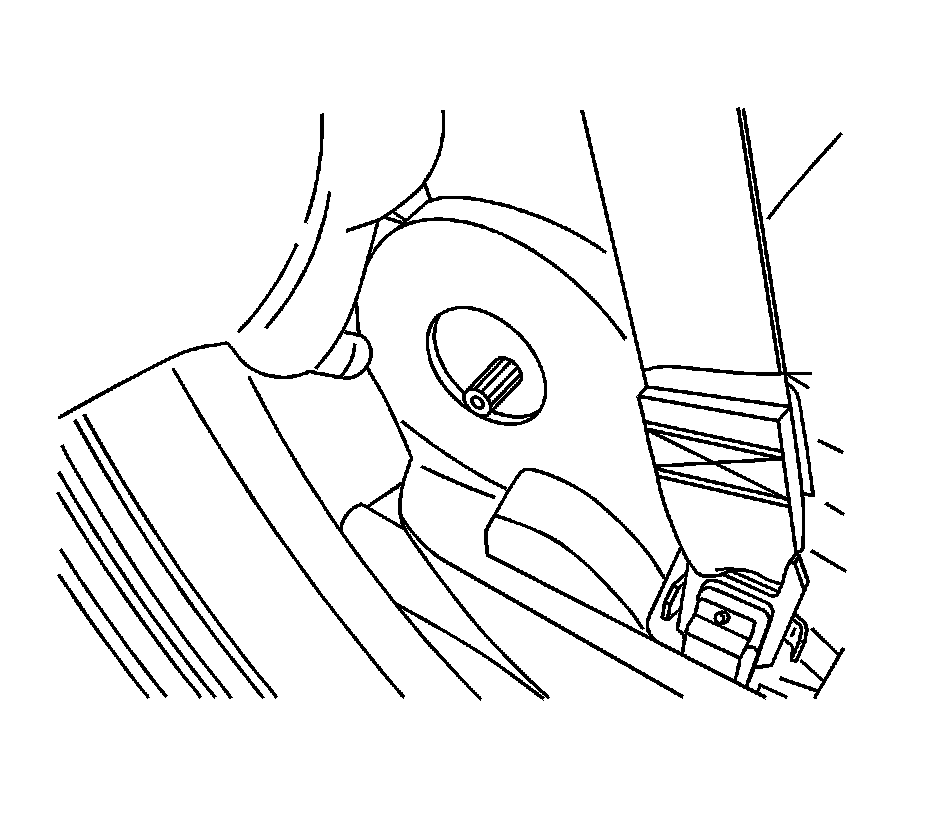

3. Remove the seat belt anchor from the front seat assembly.

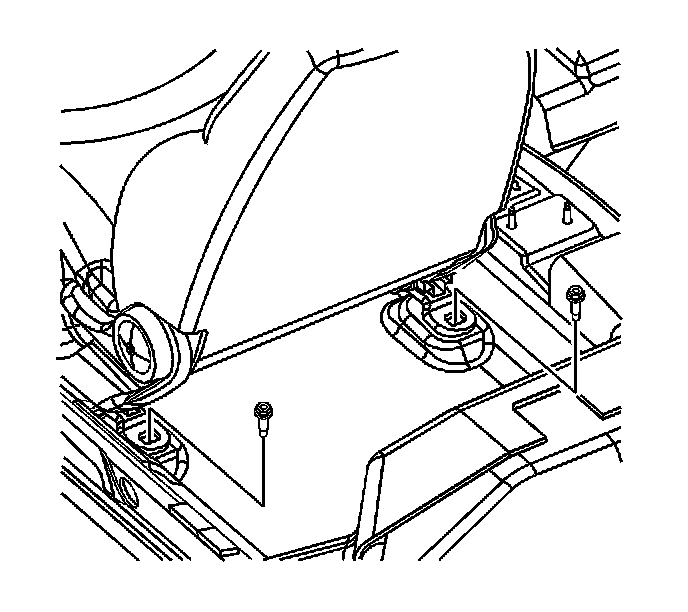

4. Remove the front seat mounting fasteners and tilt the seat forward.
5. Disconnect the electrical wire harness and remove the push-in fastener from beneath the seat.
6. Remove the seat.



Installation Procedure

1. Perform the front seat track synchronization. Refer to Front Seat Track Synchronization (Procedures)
2. Install the seat into the vehicle.




3. Connect the electrical wire harness and install the push-in fastener beneath the seat.

Notice: Refer to Fastener Notice (Fastener Notice).

4. Install the front seat mounting fasteners.

Tighten the fasteners to 45 N.m (33 lb ft).






Important: Verify that the shoulder belt is not twisted.


5. Install the seat belt anchor to the front seat assembly.
6. Enable the SIR System. Refer to SIR Disabling and Enabling (Service and Repair).
