Operation CHARM
: Car repair manuals for everyone.
Home
>>
Saturn
>>
2008
>>
Aura V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Alternator
Alternator
Component Connector End Views

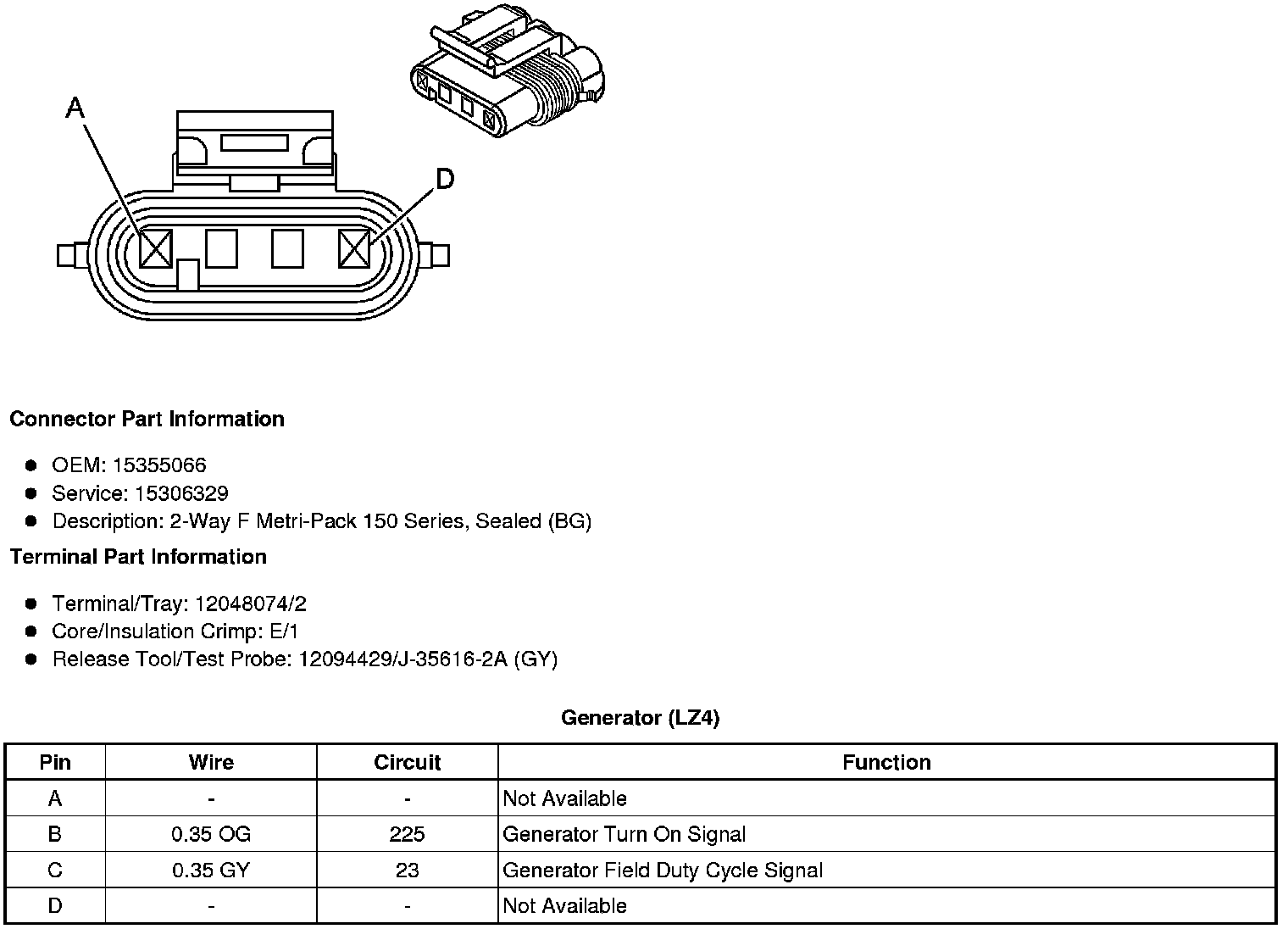

Generator (LZ4)

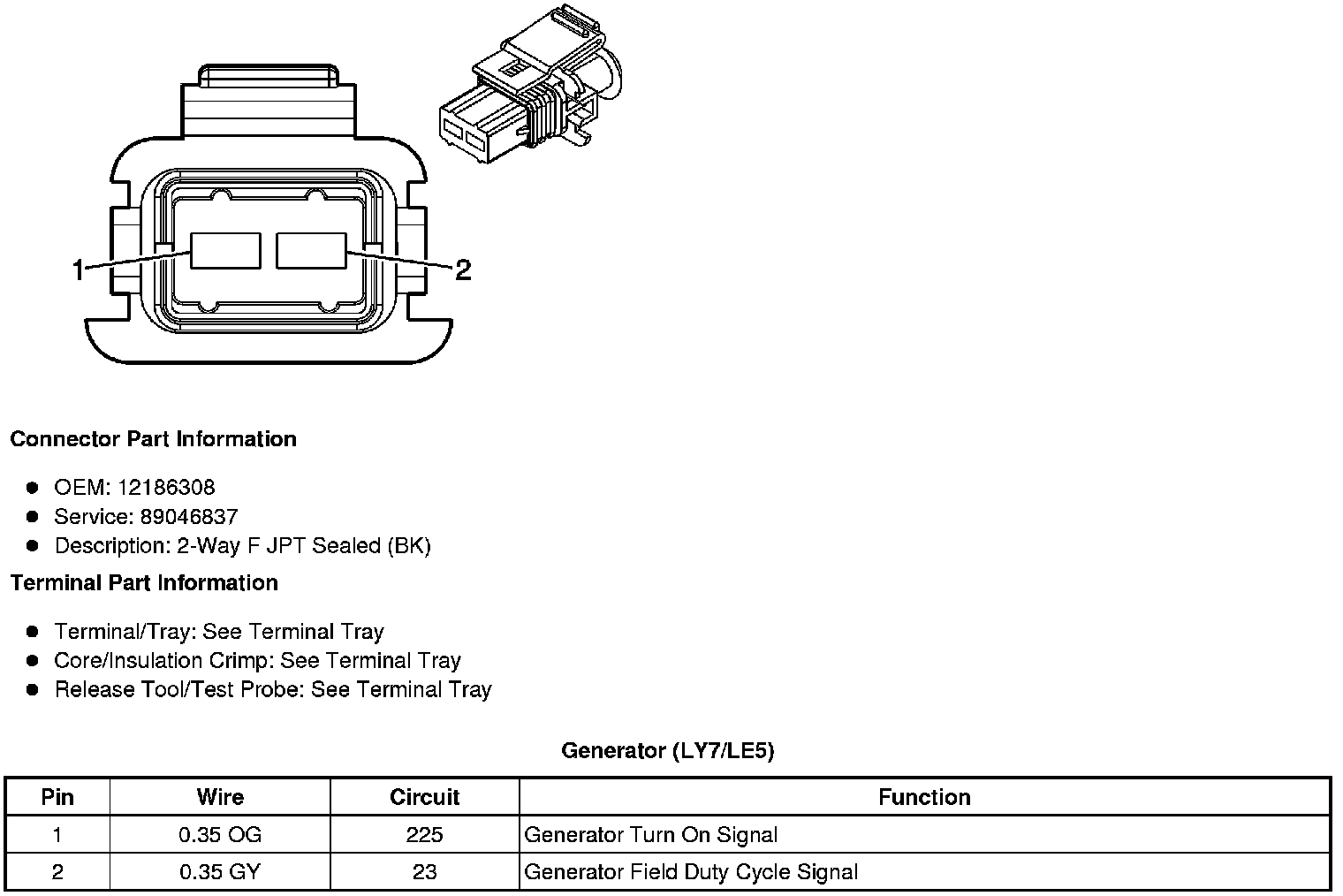

Generator (LY7/LE5)
