Component Connector End Views
>>
Body and Frame
>>
Sunroof / Moonroof
>>
Sunroof / Moonroof Switch
Sunroof / Moonroof Switch
Component Connector End Views

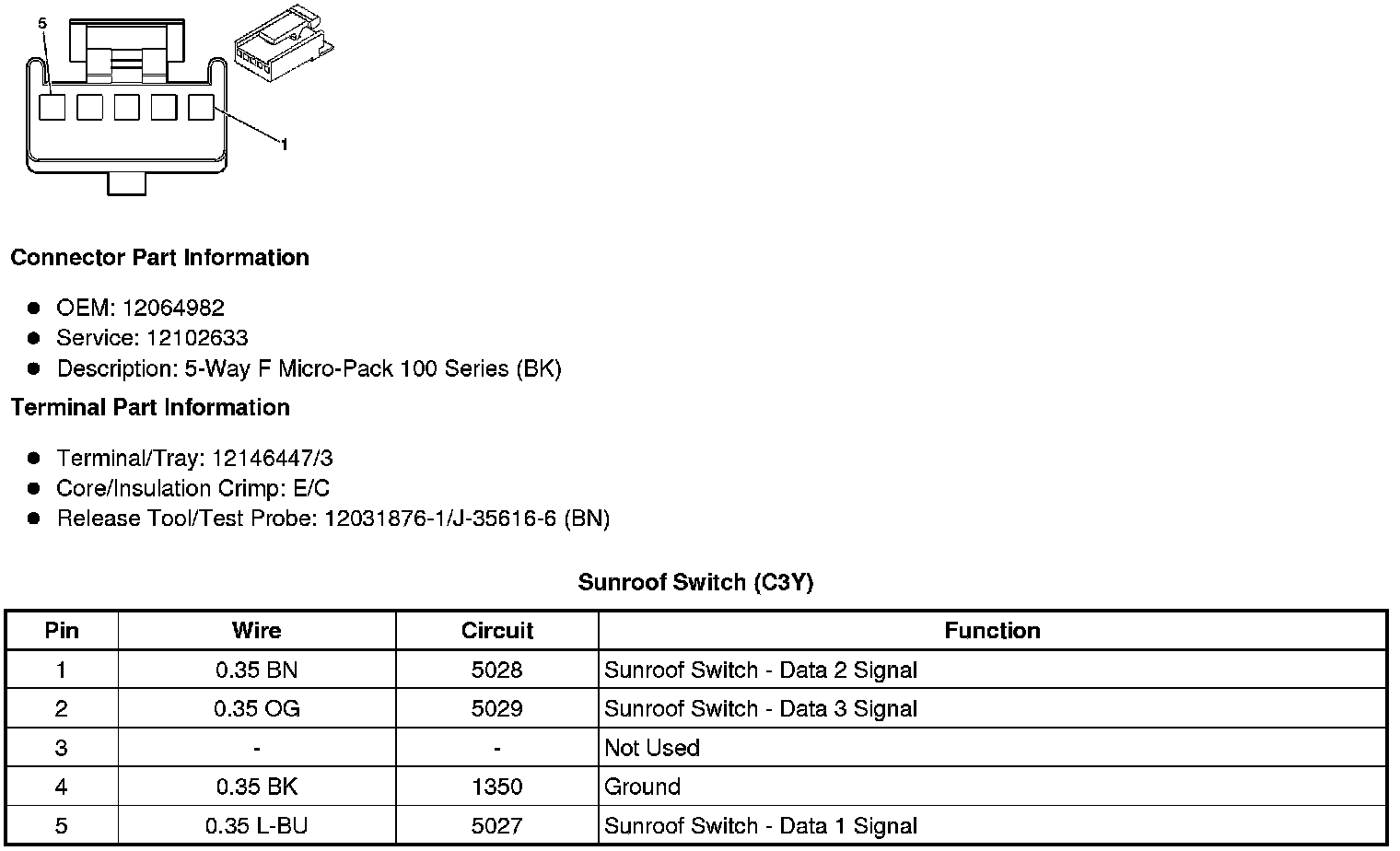

Sunroof Switch (C3Y)

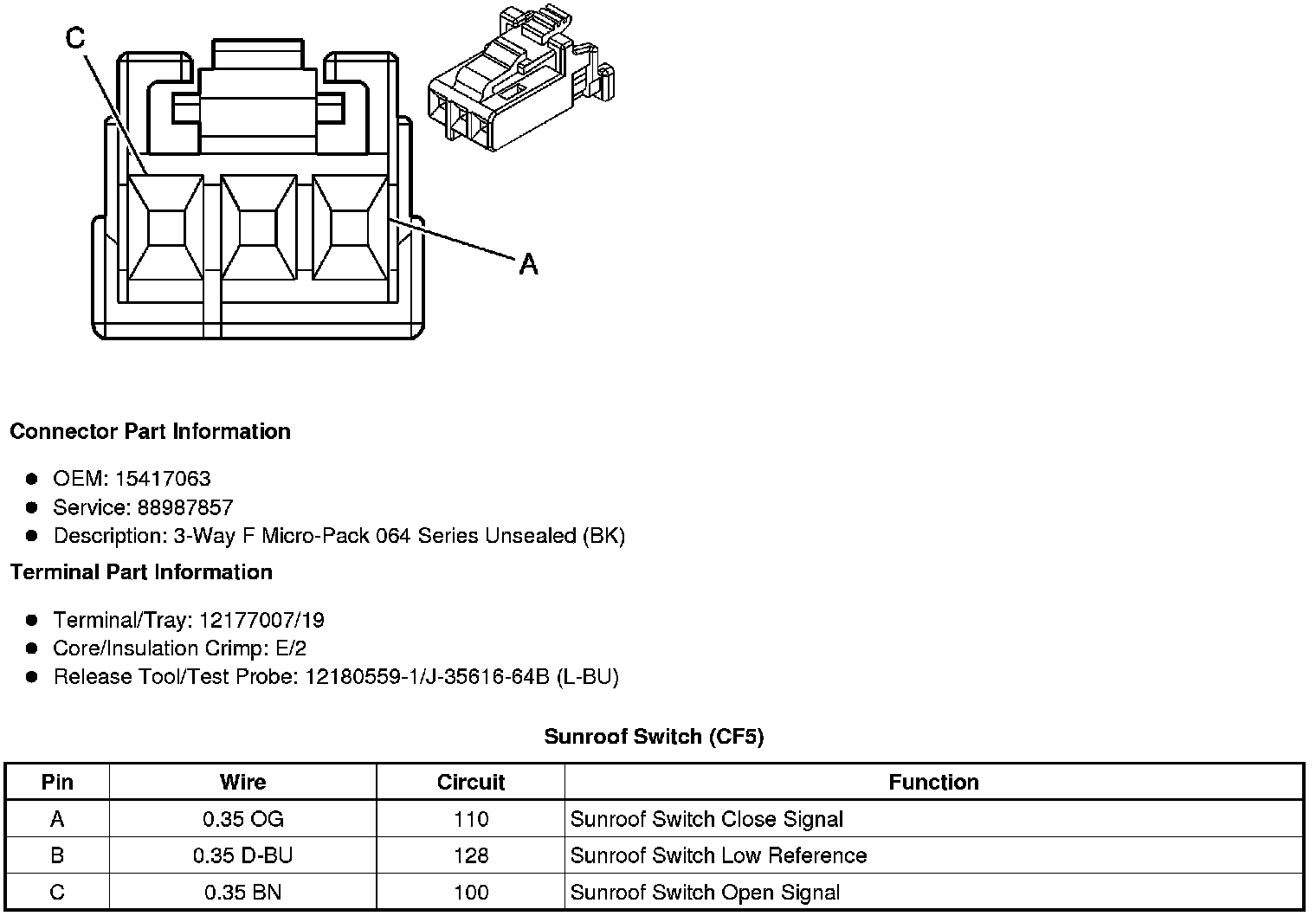

Sunroof Switch (CF5)
