Operation CHARM
: Car repair manuals for everyone.
Home
>>
Saturn
>>
2008
>>
Aura V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Component Connector End Views
>>
Lighting and Horns
>>
Horn
Horn
Component Connector End Views

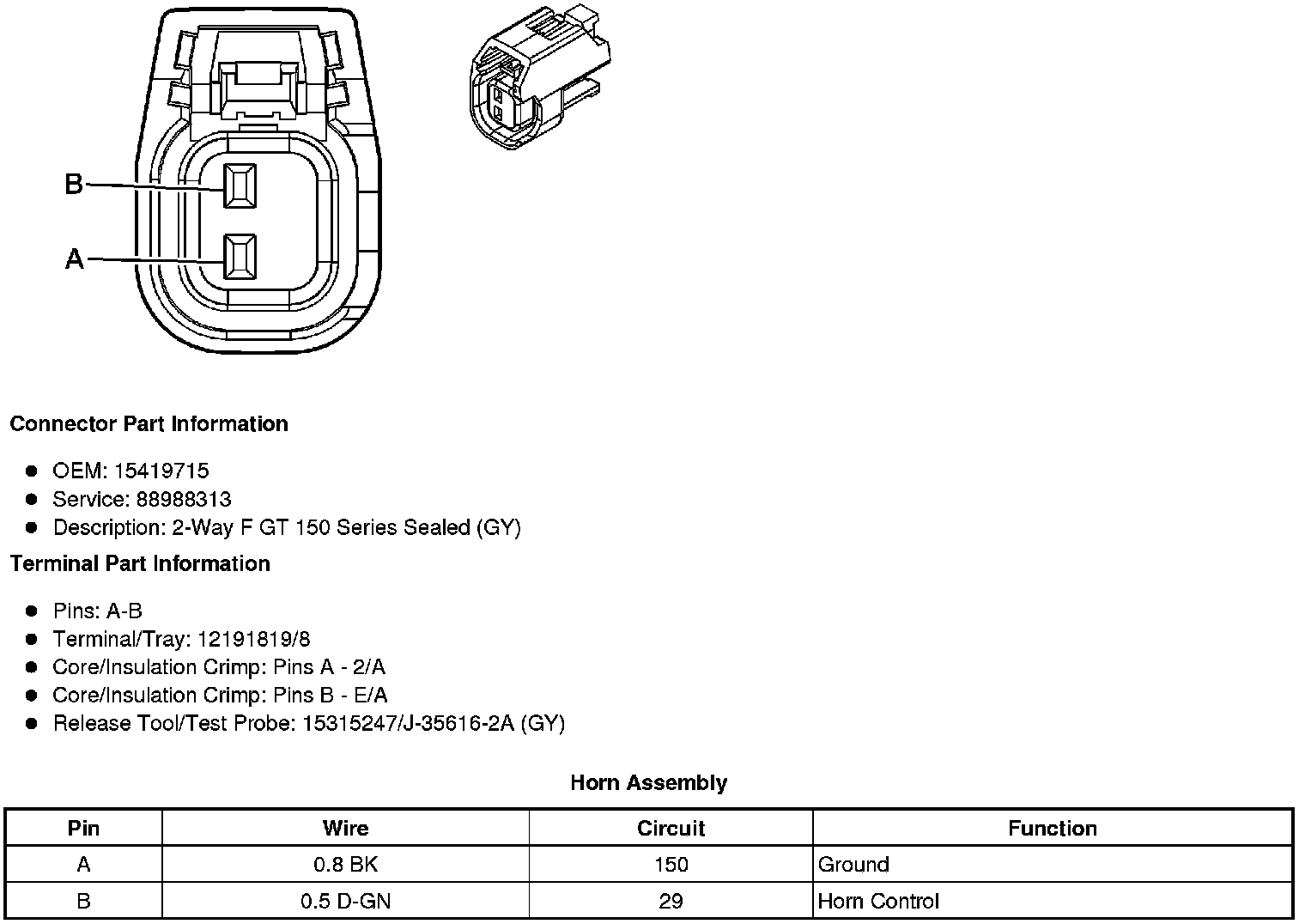

Horn Assembly

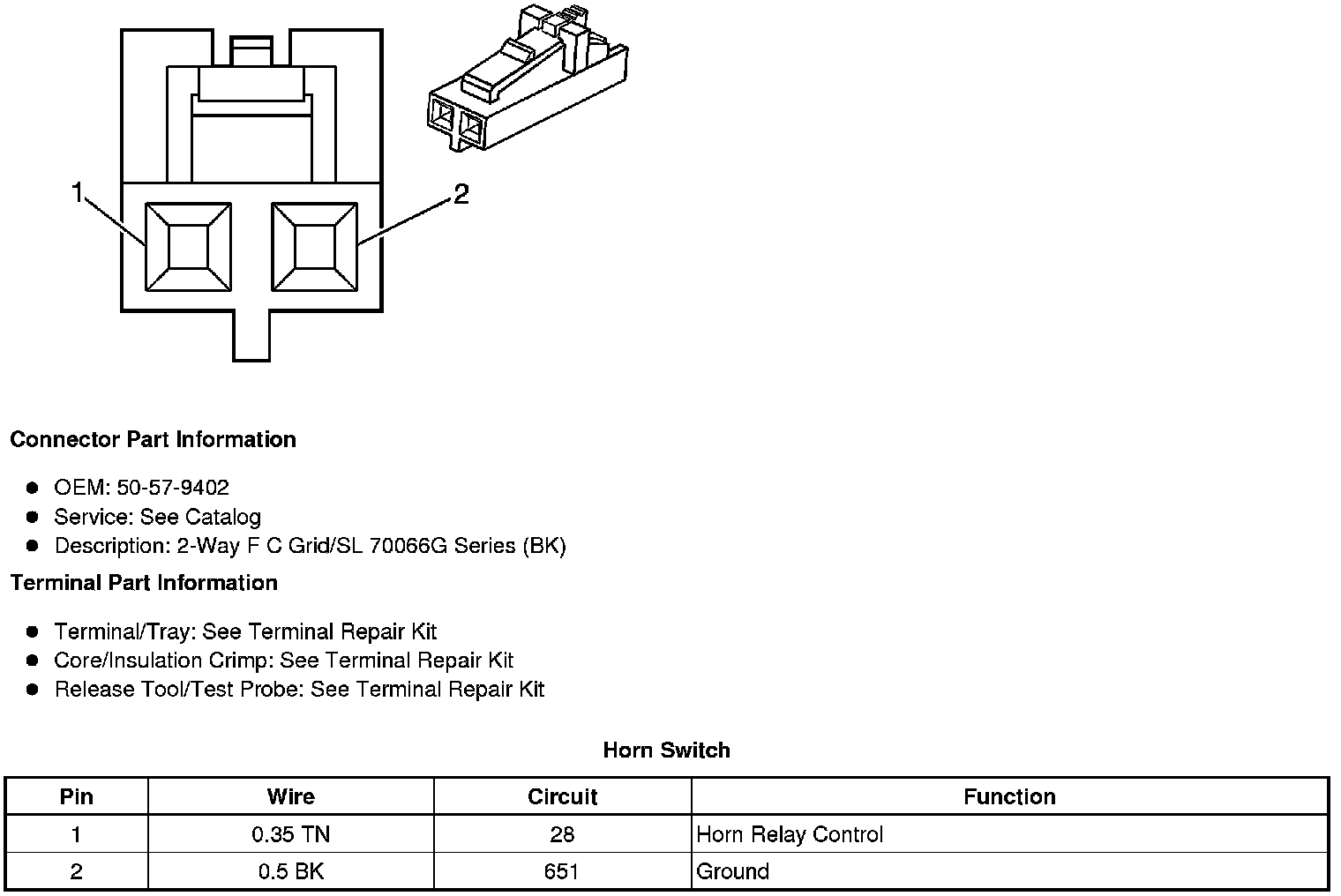

Horn Switch
