Home
>>
Saturn
>>
2008
>>
Aura V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Component Connector End Views
>>
Restraint Systems
>>
Air Bag
>>
Inflatable Restraint Instrument Panel Module
Inflatable Restraint Instrument Panel Module
Component Connector End Views

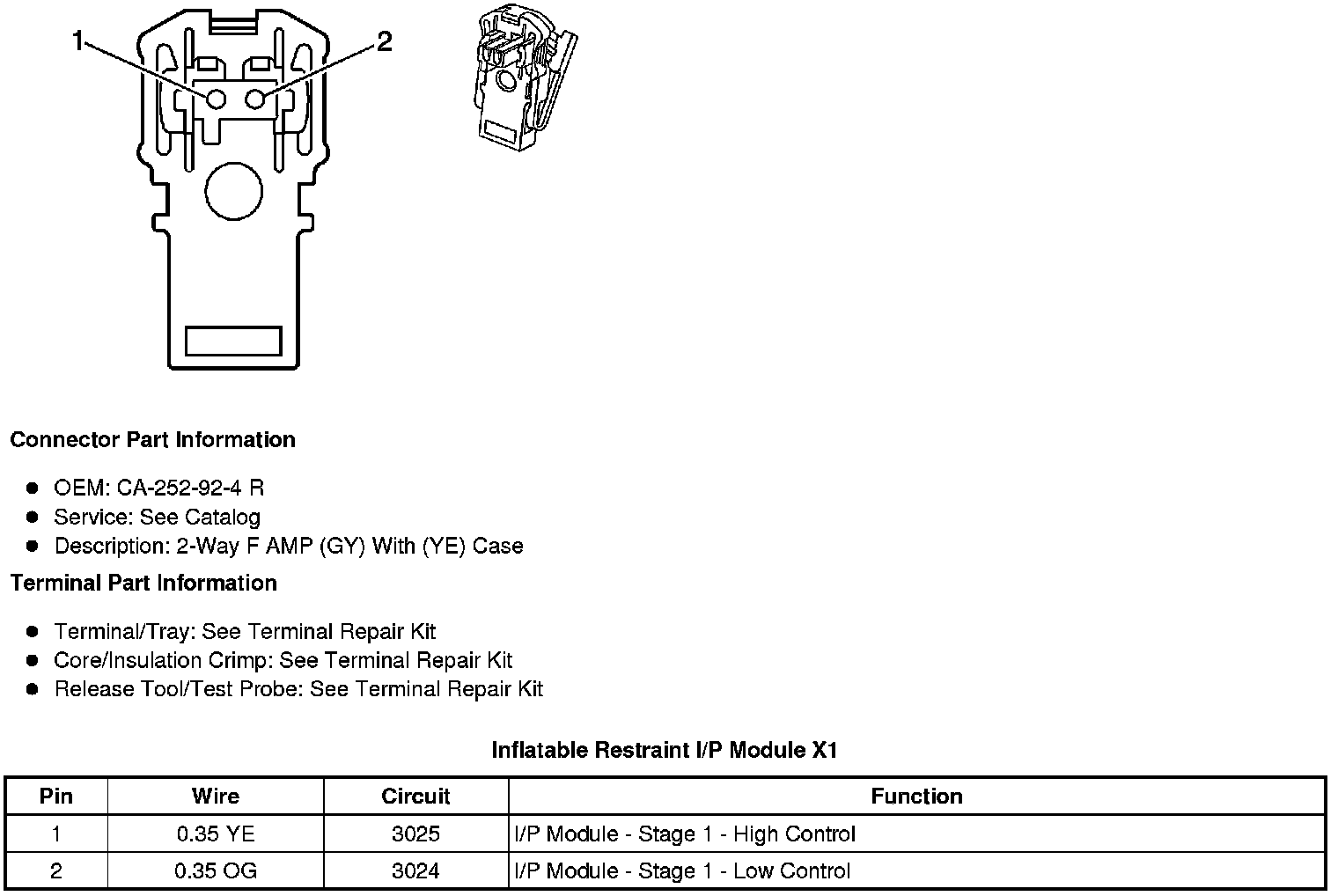

Inflatable Restraint I/P Module X1

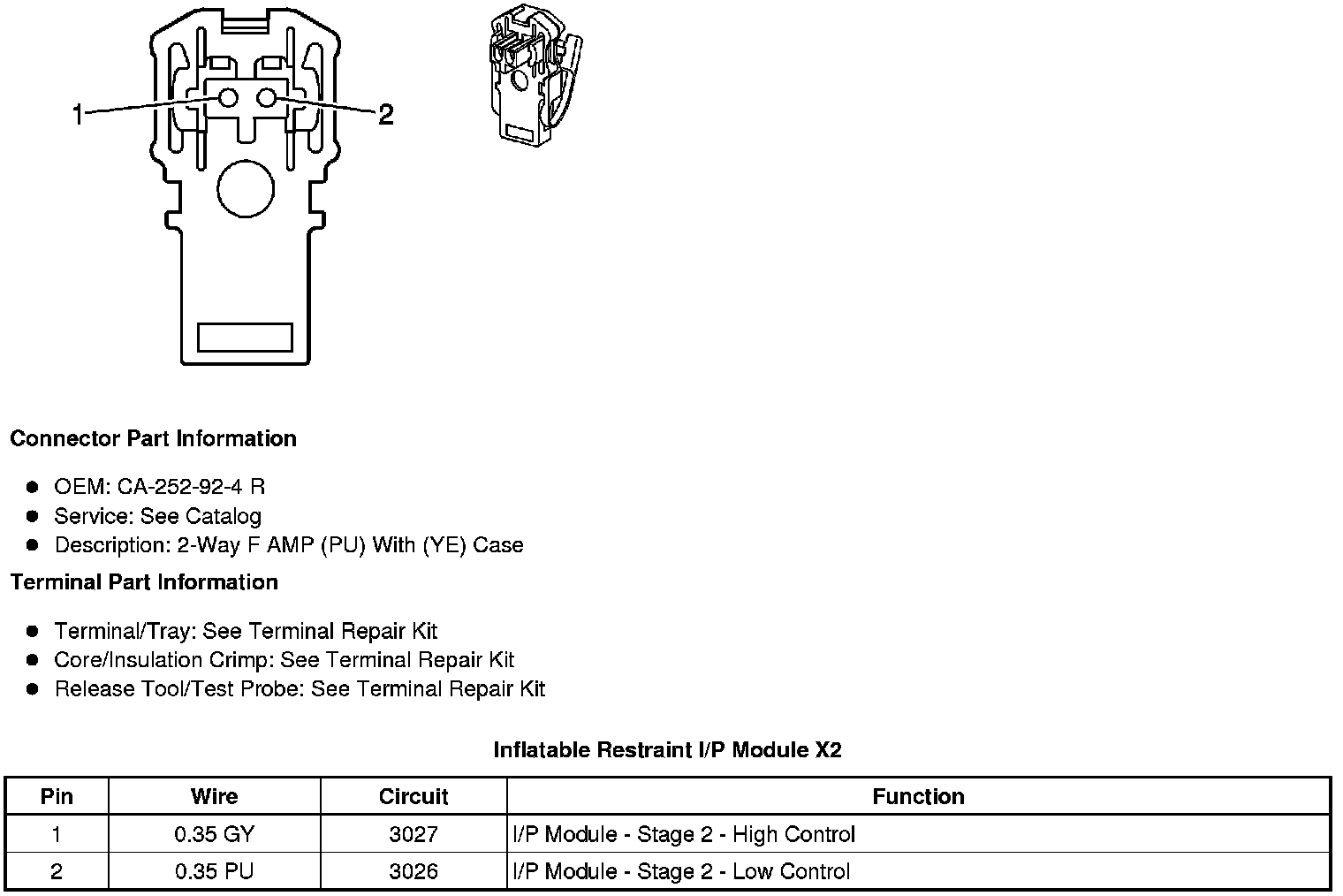

Inflatable Restraint I/P Module X2
