Fuel Pump



Component Connector End Views

Fuel Pump and Sender Assembly (LAT)

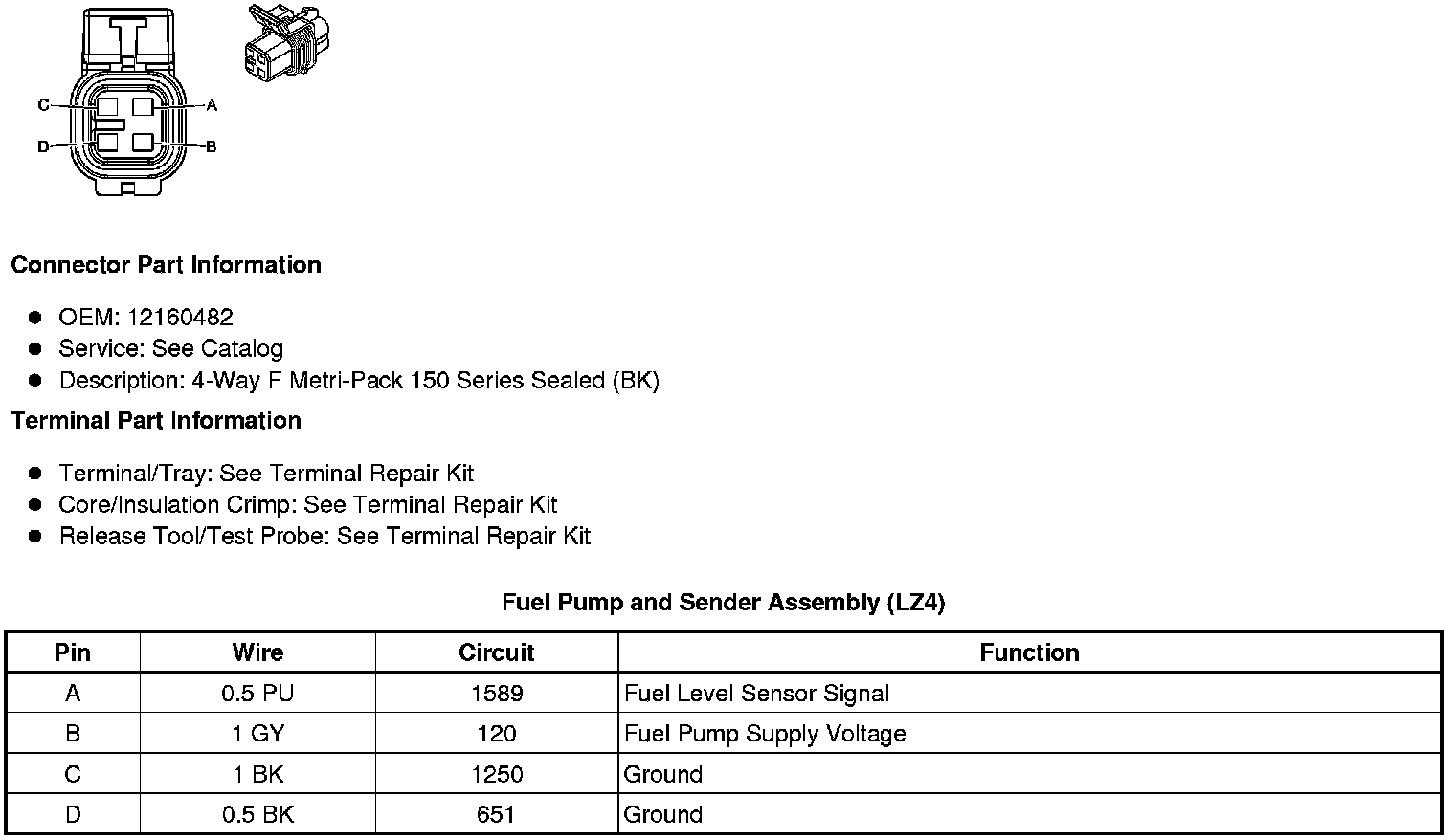

Fuel Pump and Sender Assembly (LZ4)
