13. Valve Rocker Arm Cover Removal - Right Side

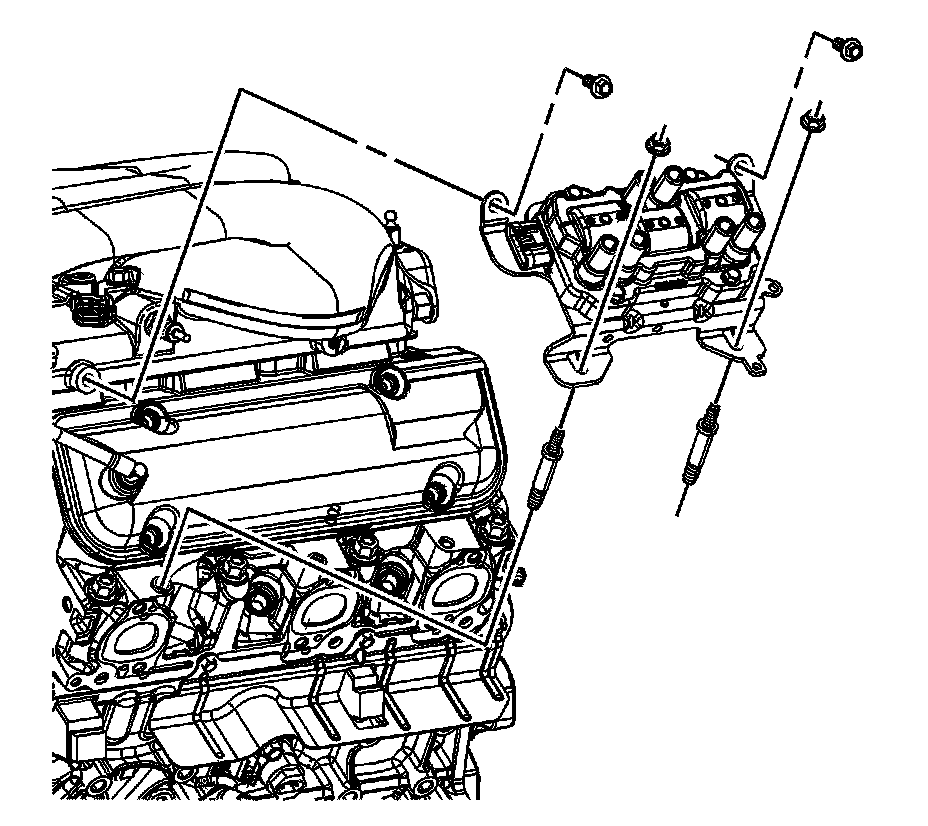

Valve Rocker Arm Cover Removal - Right Side





1. Remove any remaining spark plug wires from their retainers.
2. Remove the ignition coil assembly bolts and nuts.
3. Remove the ignition coil assembly.
4. Remove the ignition coil assembly studs, if necessary.

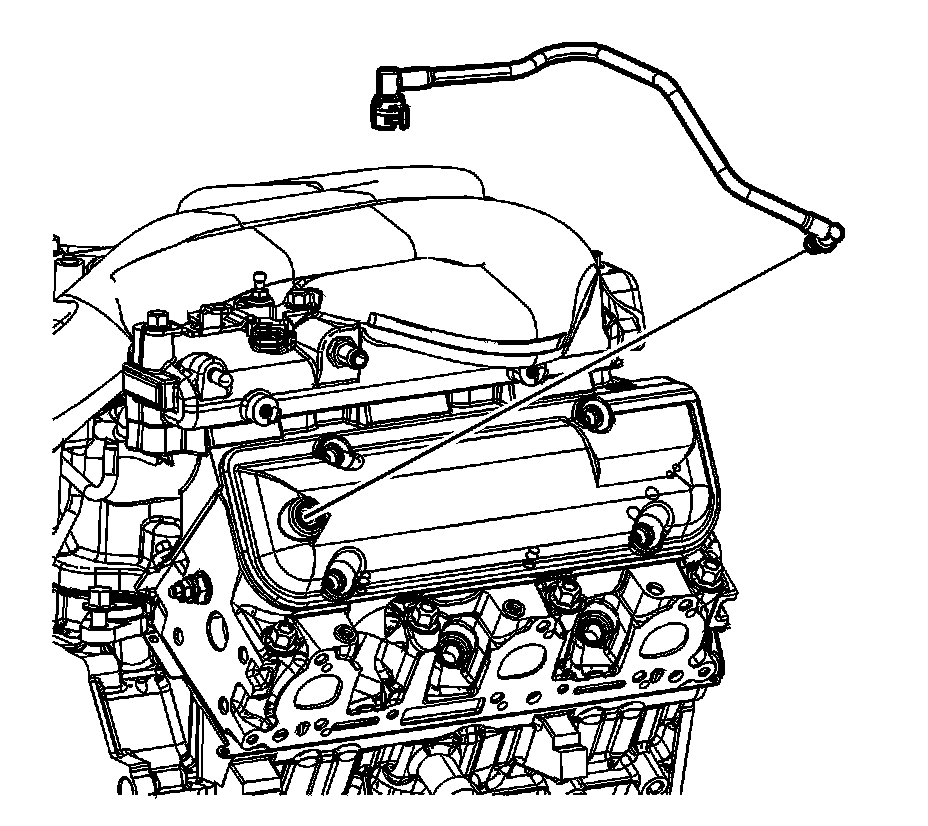

5. Remove the fresh air tube from the valve rocker arm cover.




6. Remove the valve rocker arm cover bolts.

Important: When removing the valve rocker arm cover make sure the gasket stays in place attached to the cylinder head.

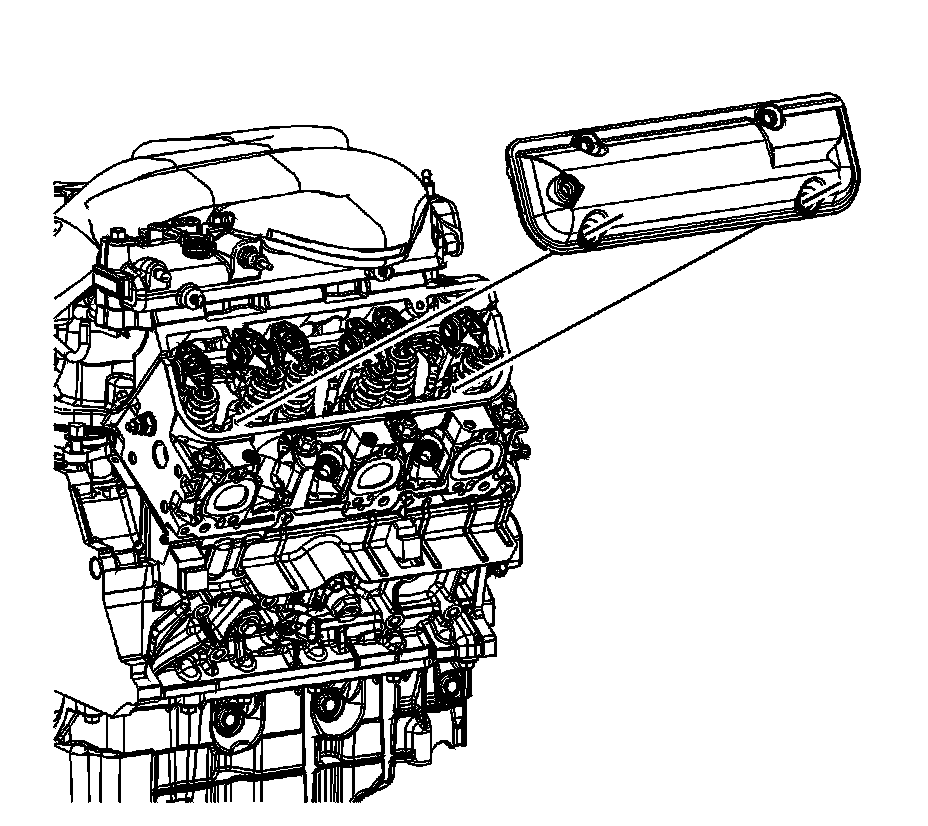

7. Remove the valve rocker arm cover.
8. Cut the room temperature vulcanizing (RTV) in the channel where the intake, cylinder head and valve rocker arm cover meet with a suitable tool.
9. Remove the valve rocker arm cover gasket.
