2. Crankshaft Balancer Removal

Crankshaft Balancer Removal


Tools Required
* J 41816 Crankshaft Balancer Remover
* EN 46359 Puller End Protector

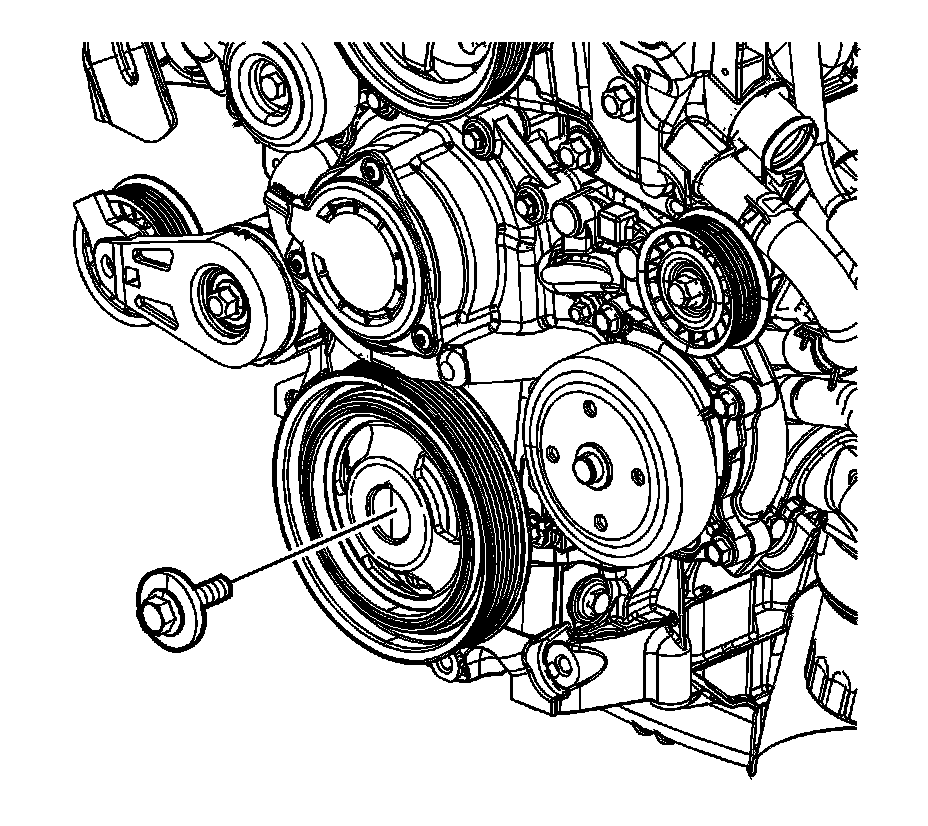

1. Remove the crankshaft balancer bolt and washer.





Notice: Do NOT use a power-assisted tool with the special tool in order to remove or install this component. You cannot properly control the alignment of this component using a power-assisted tool, and this can damage the component.

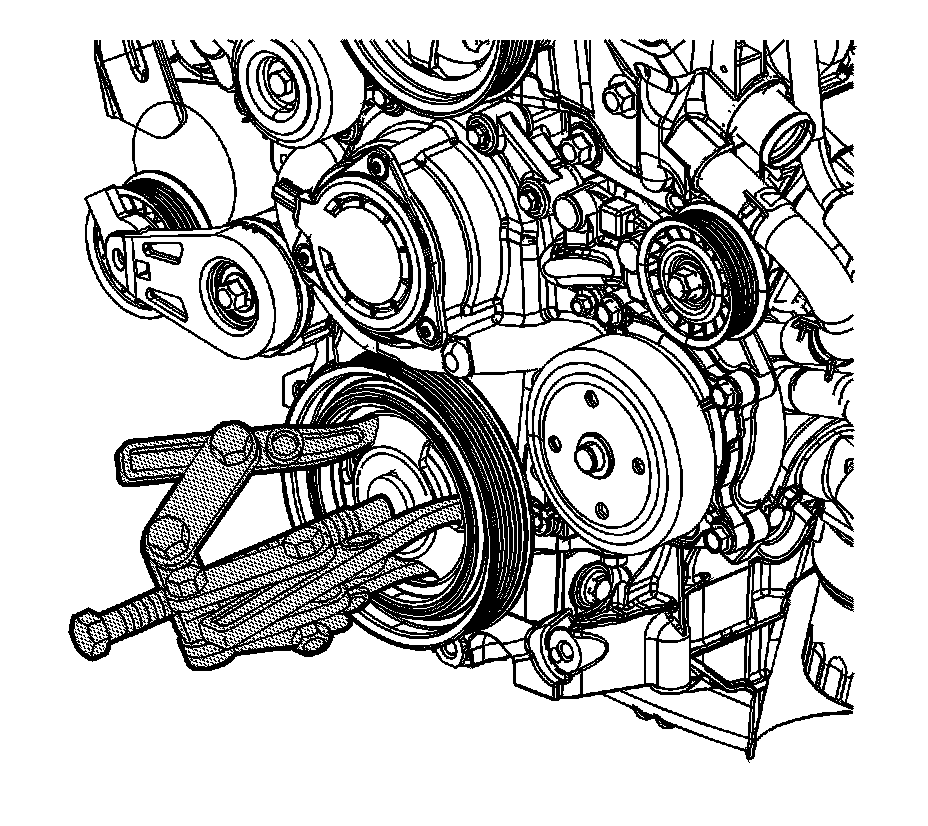

2. Remove the crankshaft balancer using the J 41816 along with EN 46359.
