Rear Suspension

Rear Wheel Bearing and Hub Replacement

Removal Procedure

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service Intervals).
2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (Service and Repair).
3. Remove the brake rotor. Refer to Rear Brake Rotor Replacement (Service and Repair).




4. Disconnect the electrical connector from the wheel speed sensor.

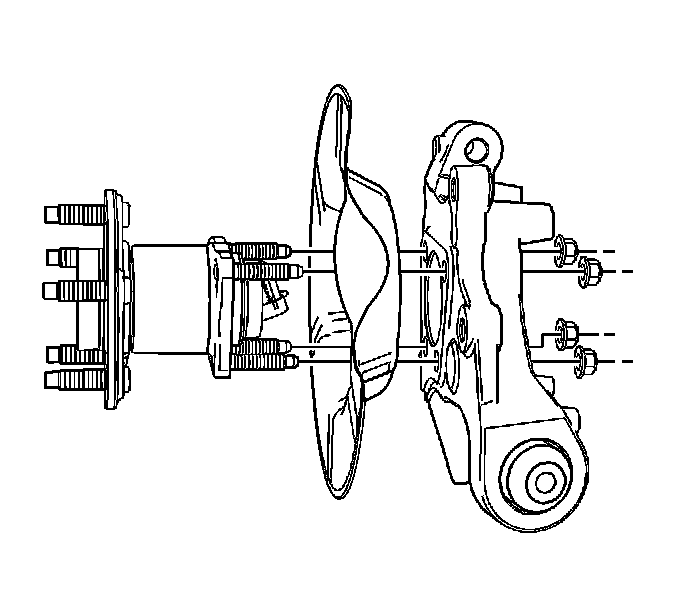

5. Remove the 4 wheel bearing/hub assembly nuts.
6. Remove the wheel bearing/hub assembly from the knuckle.



Installation Procedure





1. Install the wheel bearing/hub assembly to the knuckle.

Notice: Refer to Fastener Notice (Fastener Notice).

2. Install the 4 wheel bearing/hub assembly nuts.

Tighten the nuts to 63 N.m (47 lb ft).

3. Install the stabilizer link bolt at the knuckle. Refer to Stabilizer Shaft Replacement (Rear Suspension).
4. Connect the electrical connector to the wheel speed sensor.
5. Install the brake rotor. Refer to Rear Brake Rotor Replacement (Service and Repair).
6. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (Service and Repair).
7. Lower the vehicle.
