6T70/6T75 - Automatic Transaxle



Automatic Transmission Controls Schematics

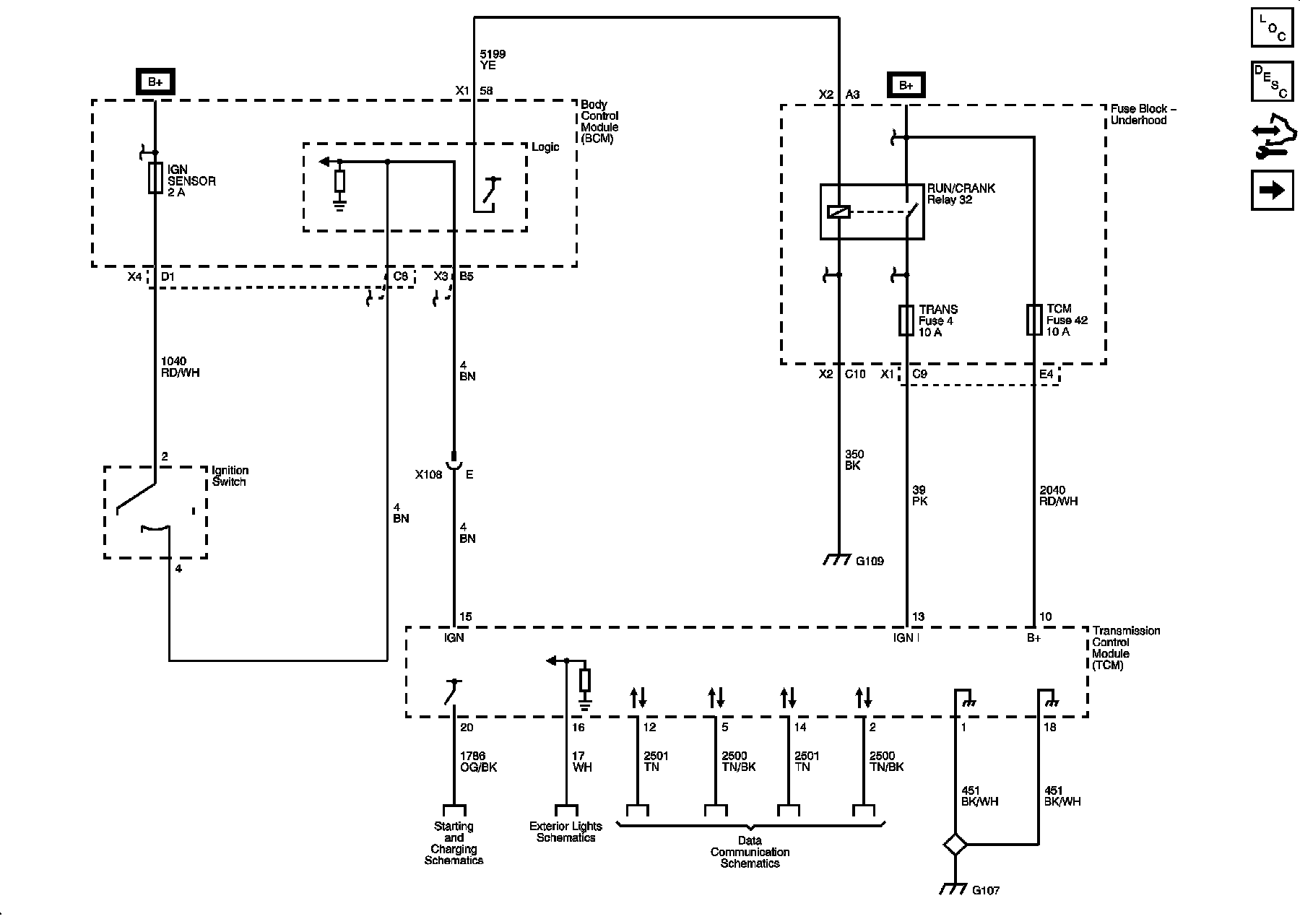

Power, Ground and Serial Data

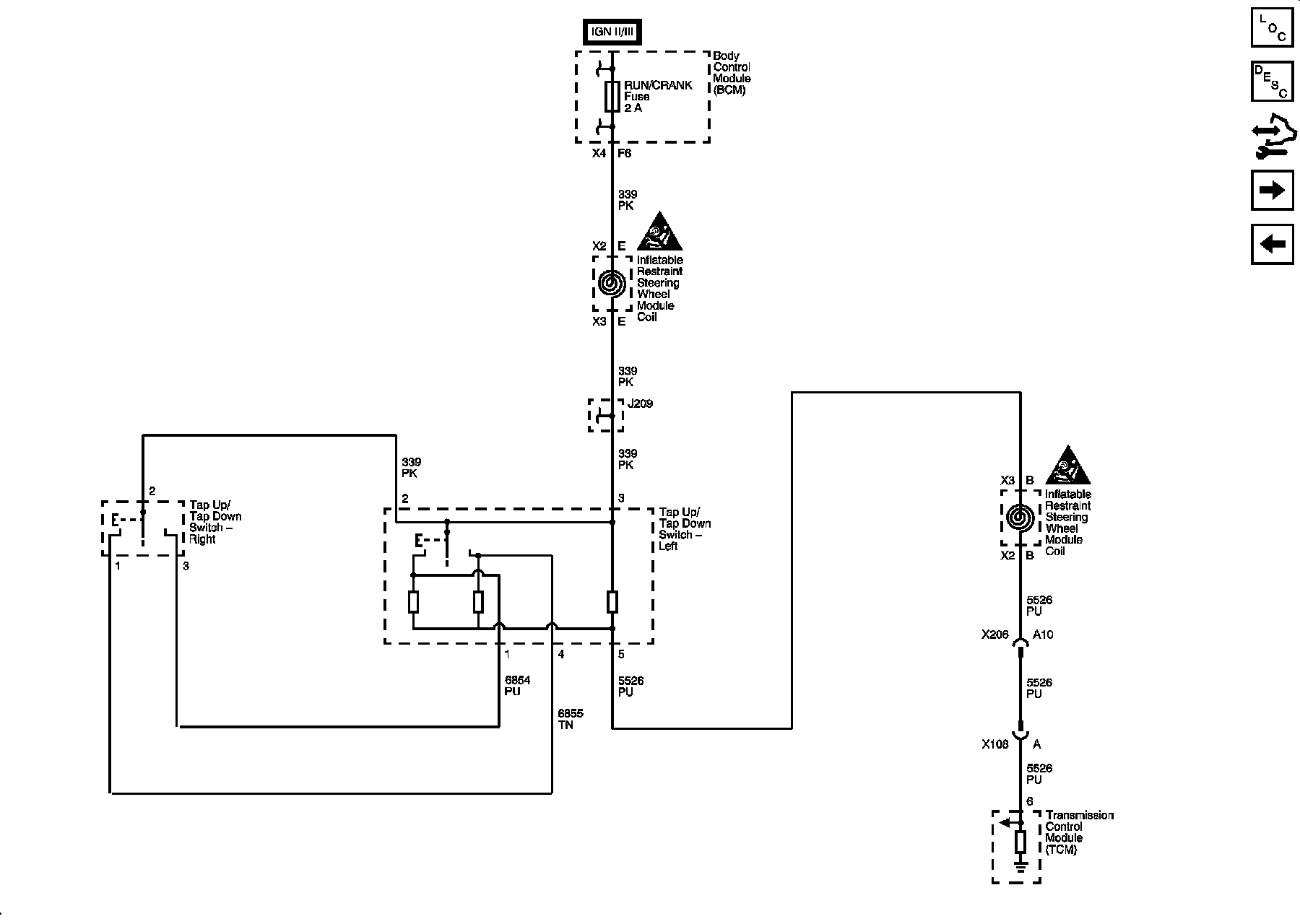

Tap Up/Tap Down Switch
