Headlamp Relay: Locations



Electrical Center Identification Views

Fuse Block - Underhood Label













Fuse Block - Underhood Top View






Fuse Block - Underhood Bottom View






Fuse Block - Underhood X1












Fuse Block - Underhood X2

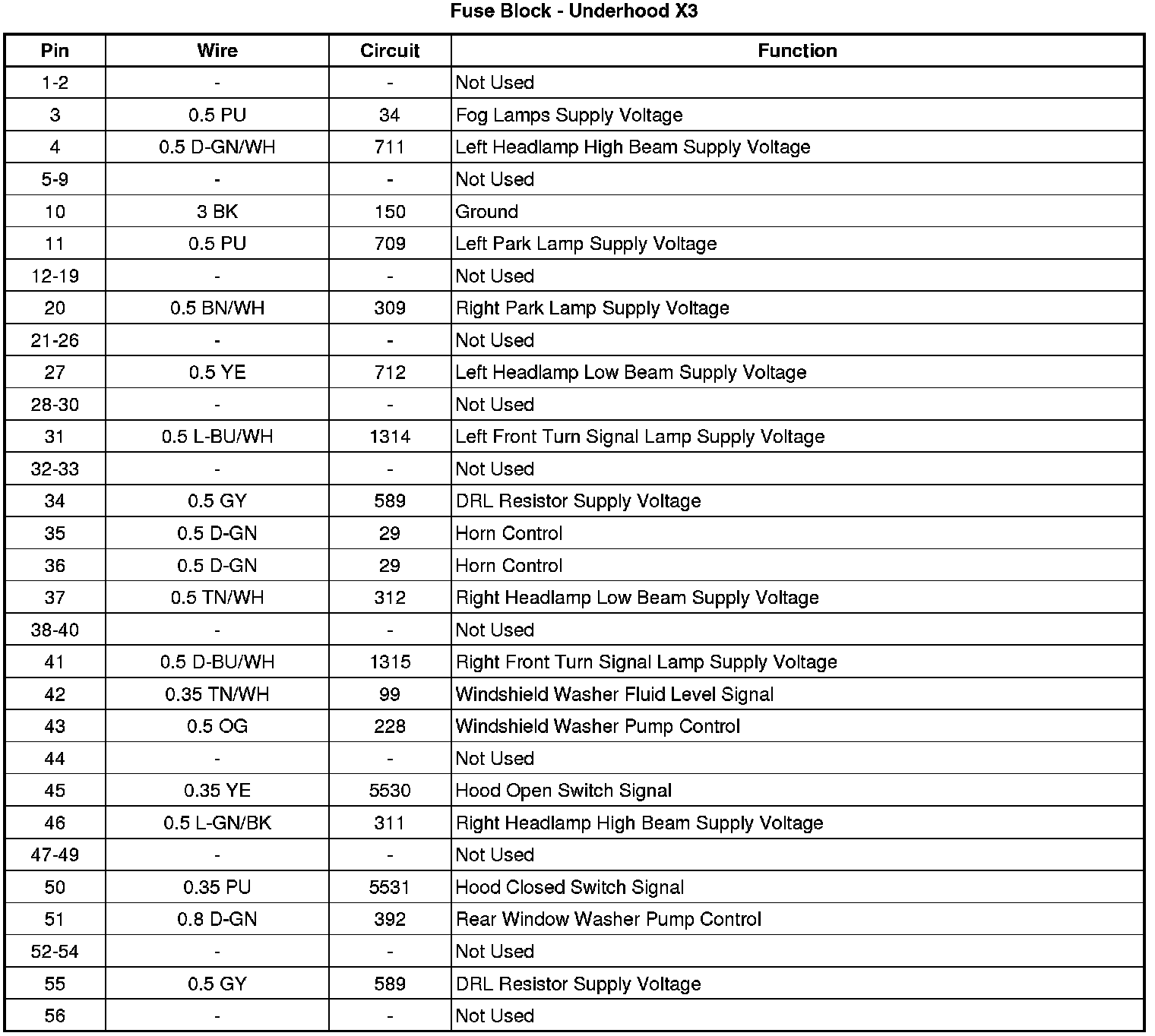

Fuse Block - Underhood X3









Fuse Block - Auxiliary (HP7) Label










Fuse Block - Auxiliary (HP7)
