Connector Views
>>
Fuse Block
>>
Fuse Block - I/P
Fuse Block - I/P
Electrical Center Identification Views

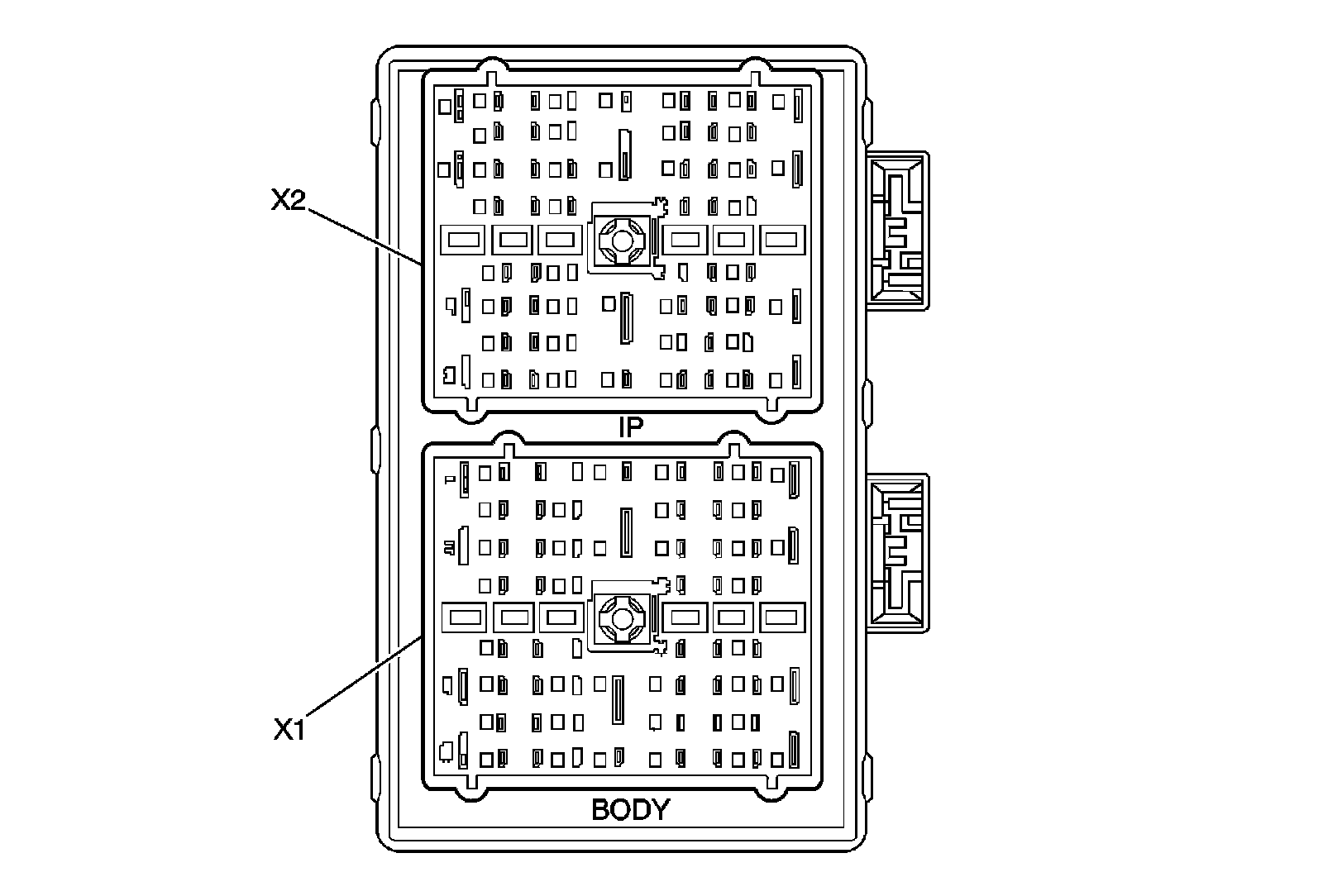

Fuse Block
- I/P Bottom View

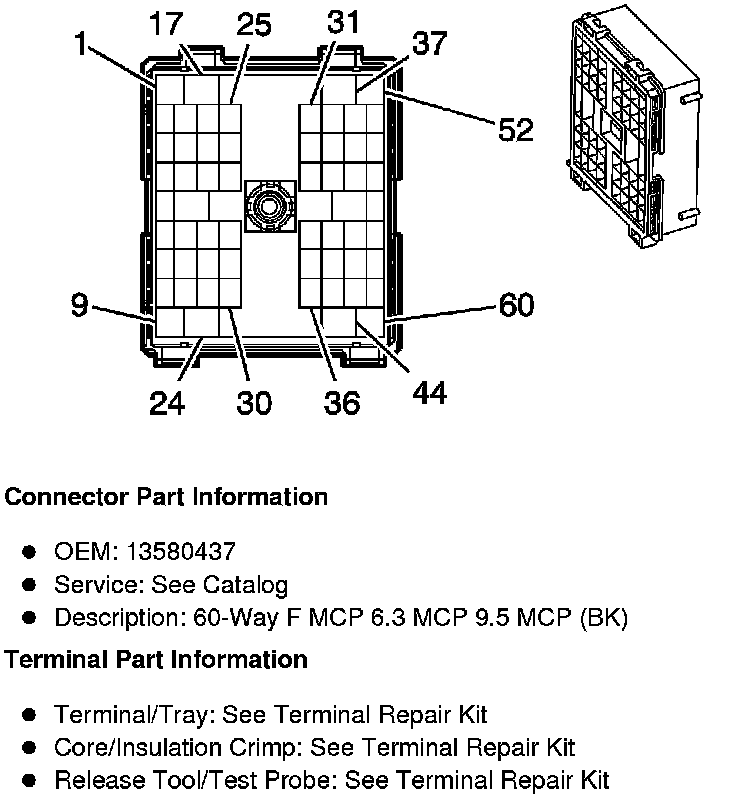

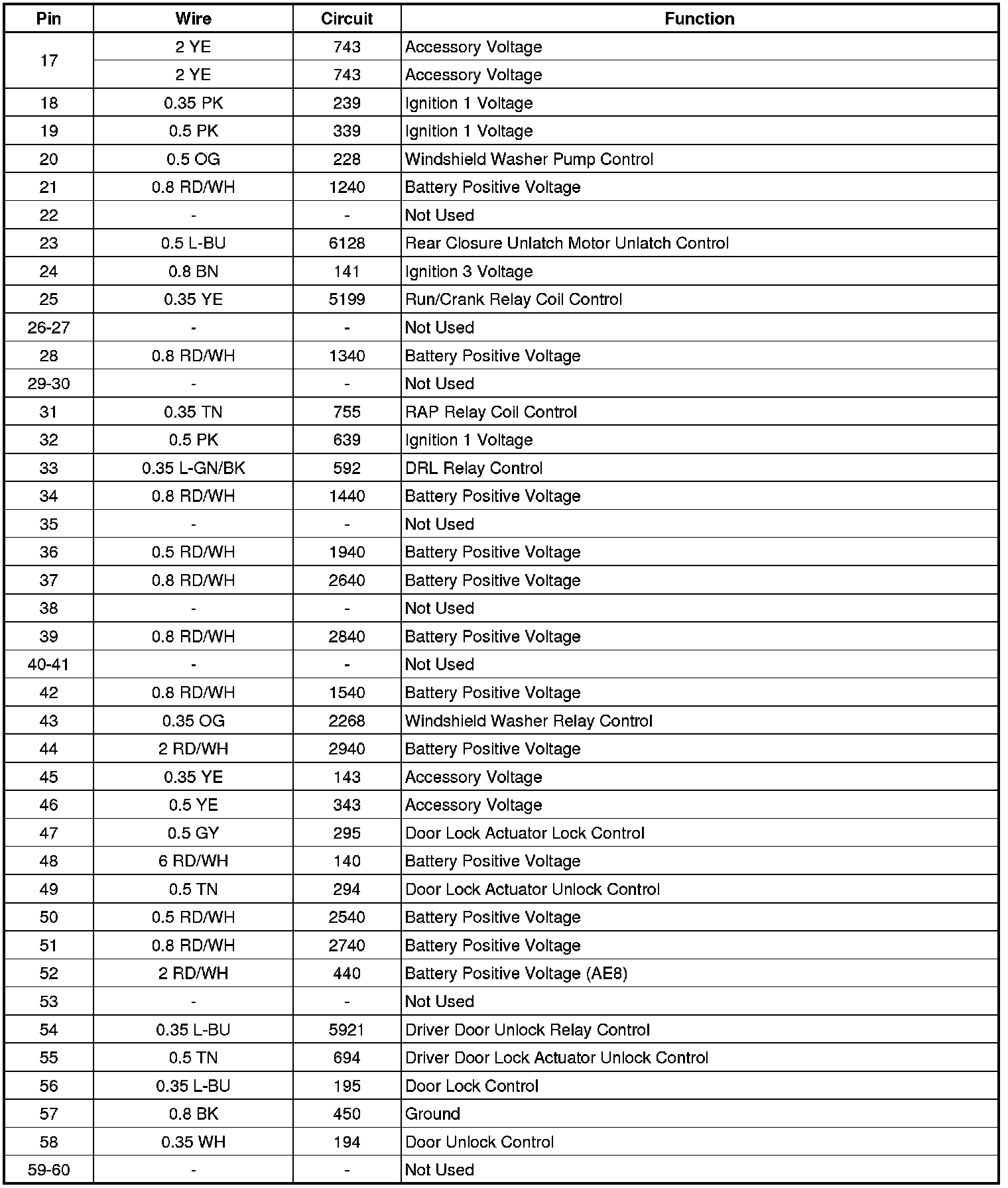

Fuse Block
- I/P X1
Fuse Block
- I/P X2
