Saturn
>>
2008
>>
VUE AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Windshield Washer Pump
Windshield Washer Pump

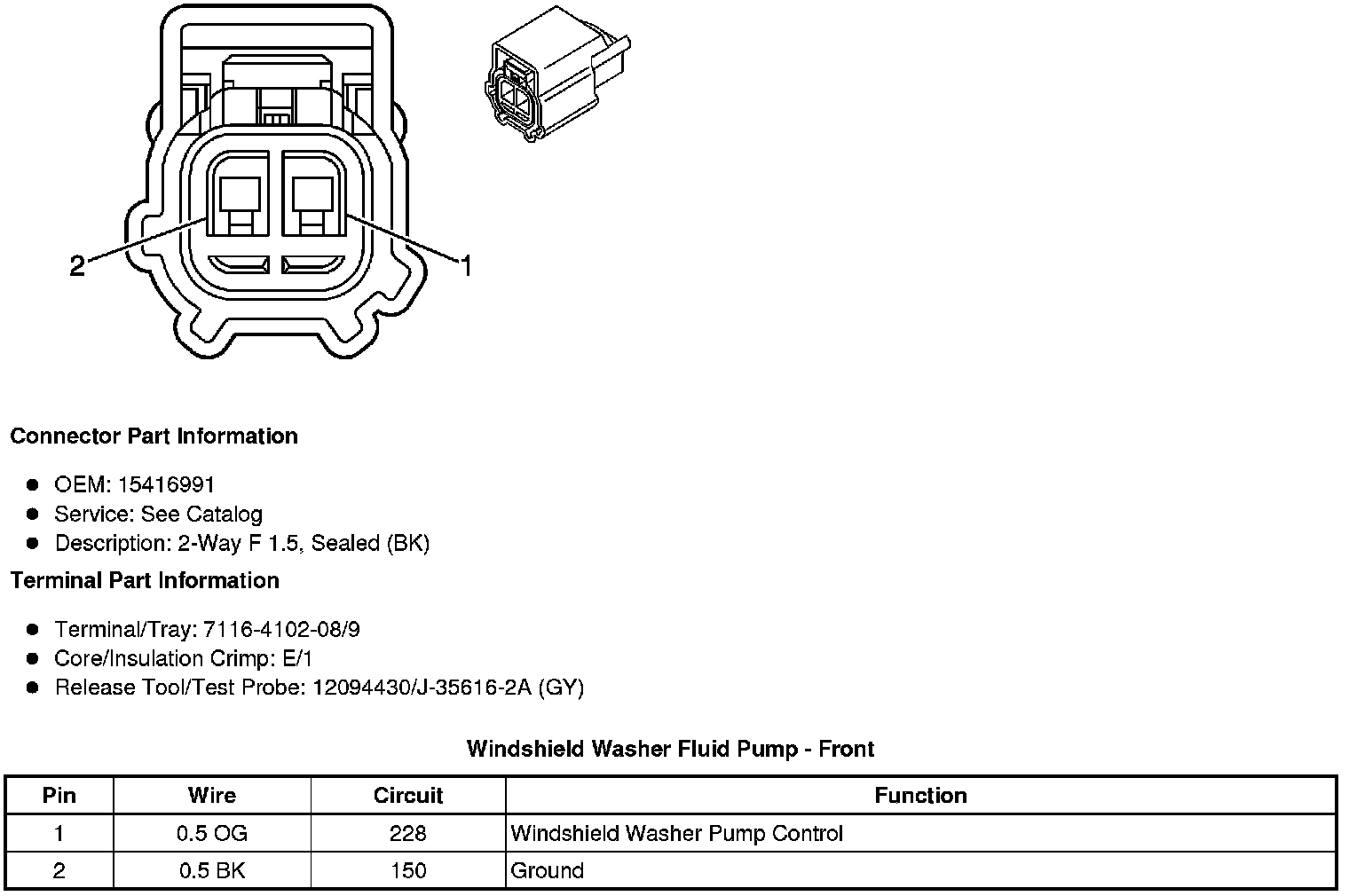

Windshield Washer Fluid Pump - Front
Windshield Washer Fluid Pump - Rear
