System Diagram
System Diagram
Starting and Charging
Schematics
Starting (LE5 2.4L/LY7 3.6L/LZ4-3.5L)

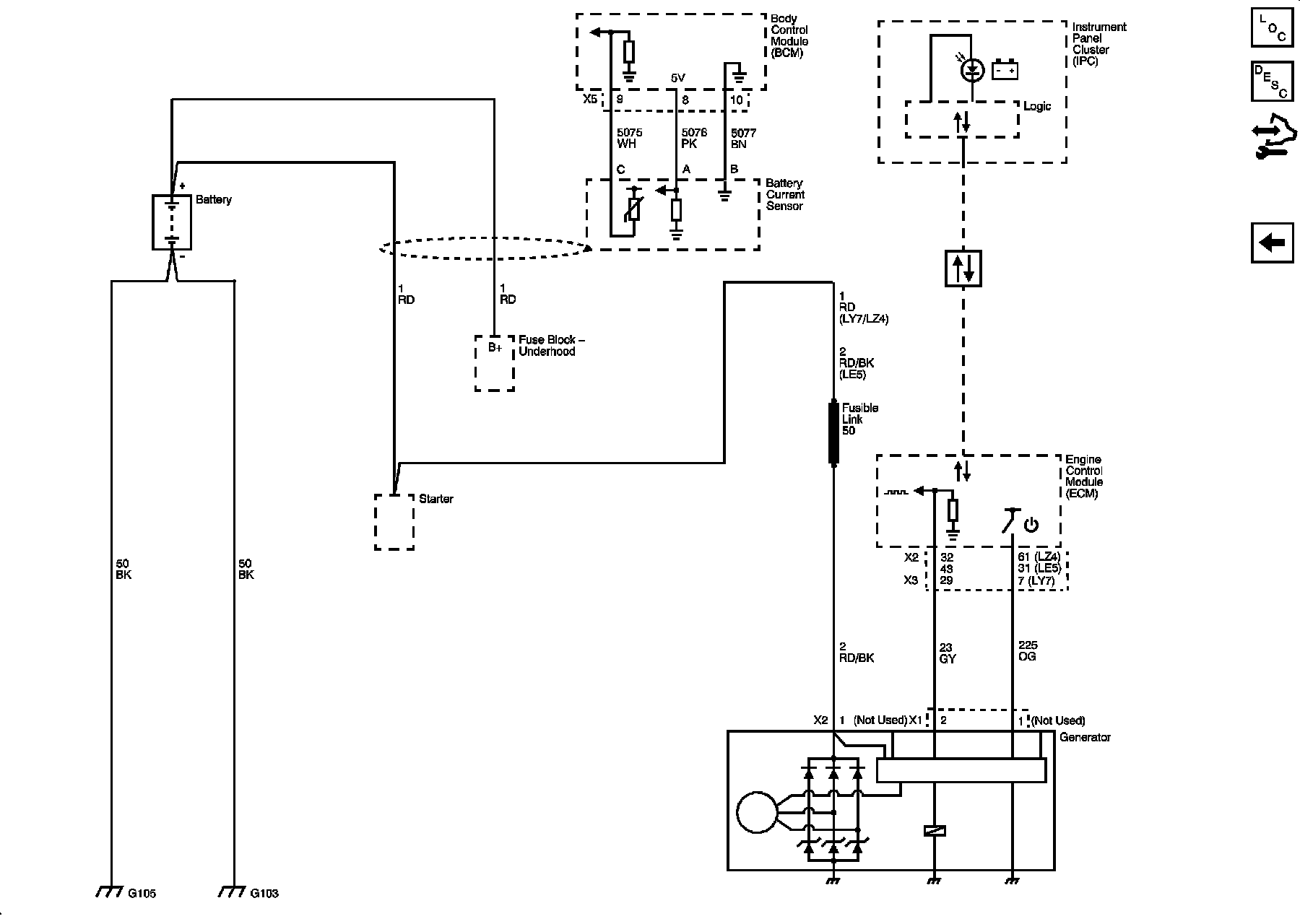

Charging (LE5 2.4L/LY7 3.6L/LZ4-3.5L)
