Interor Harnesses

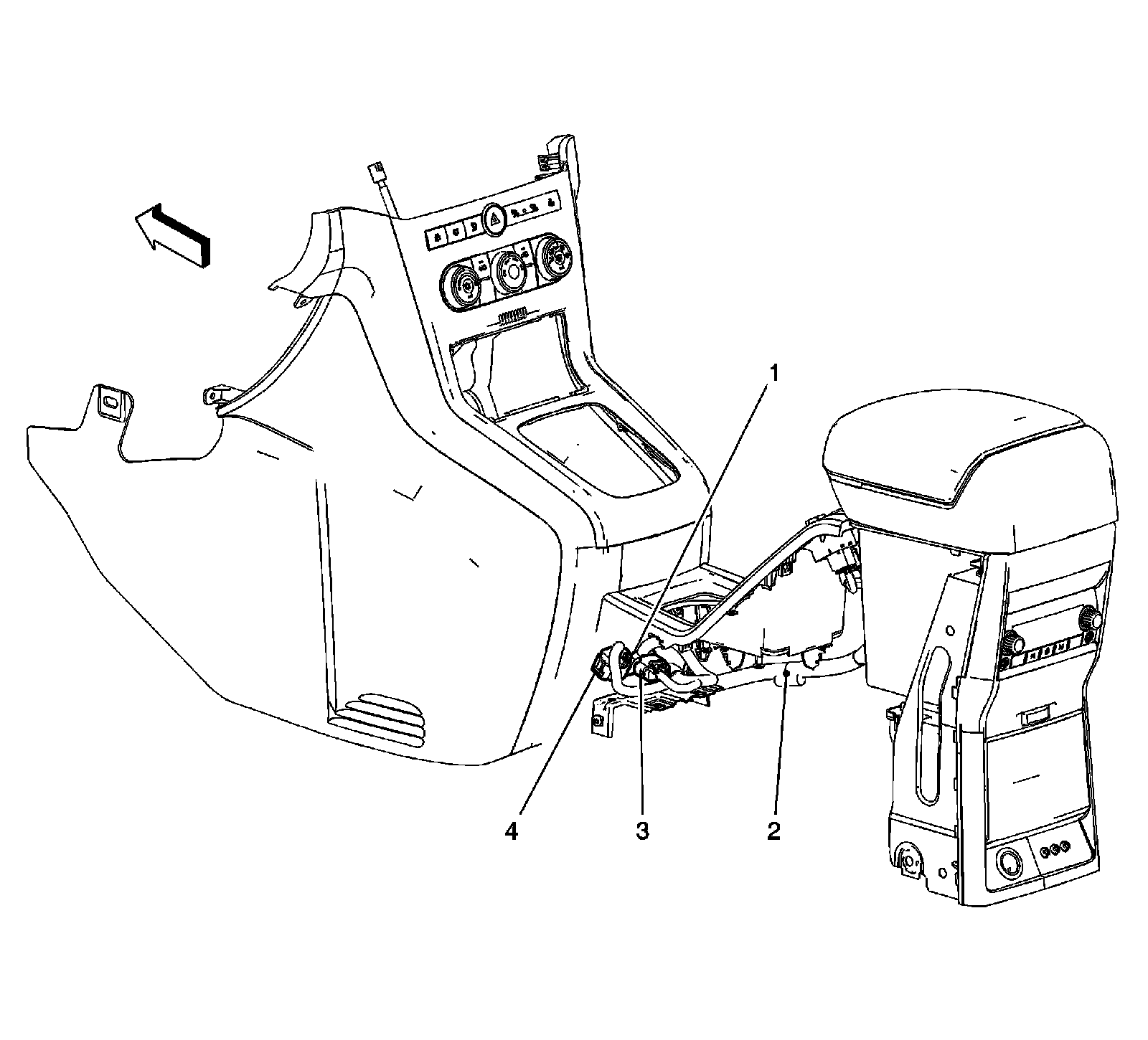

Floor Console




1 - X302
2 - J300
3 - X308
4 - X310

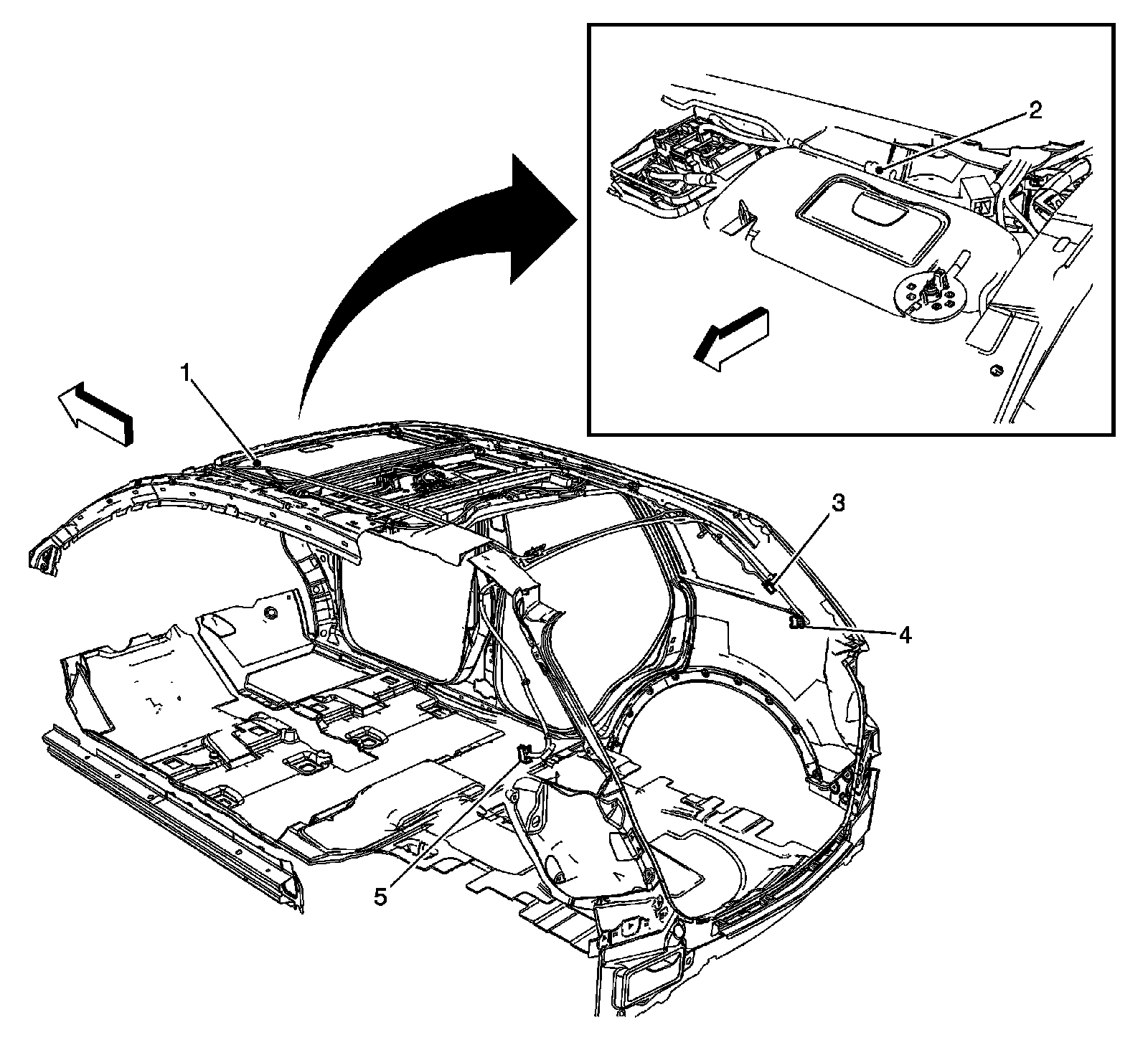

Headliner and Sunroof Harness




1 - J303
2 - J337
3 - X414
4 - X405 (UUC)
5 - X400

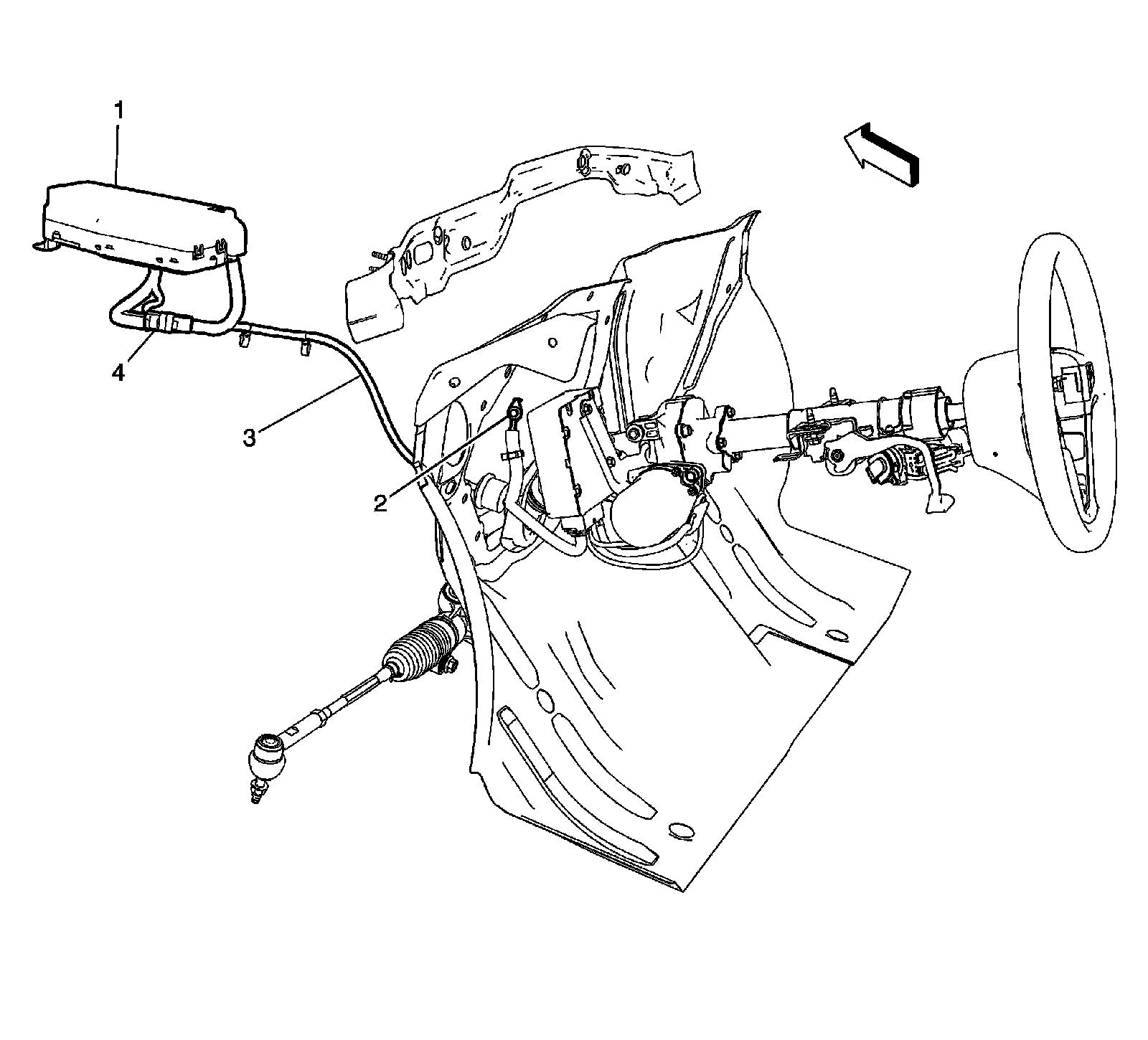

Electronic Power Steering (EPS) Harness




1 - Fuse Block - Underhood
2 - G205
3 - EPS Harness
4 - Inline Fuse
