73. Engine Front Cover Disassemble

Engine Front Cover Disassemble

Tools Required

J 45000 Seal Remover

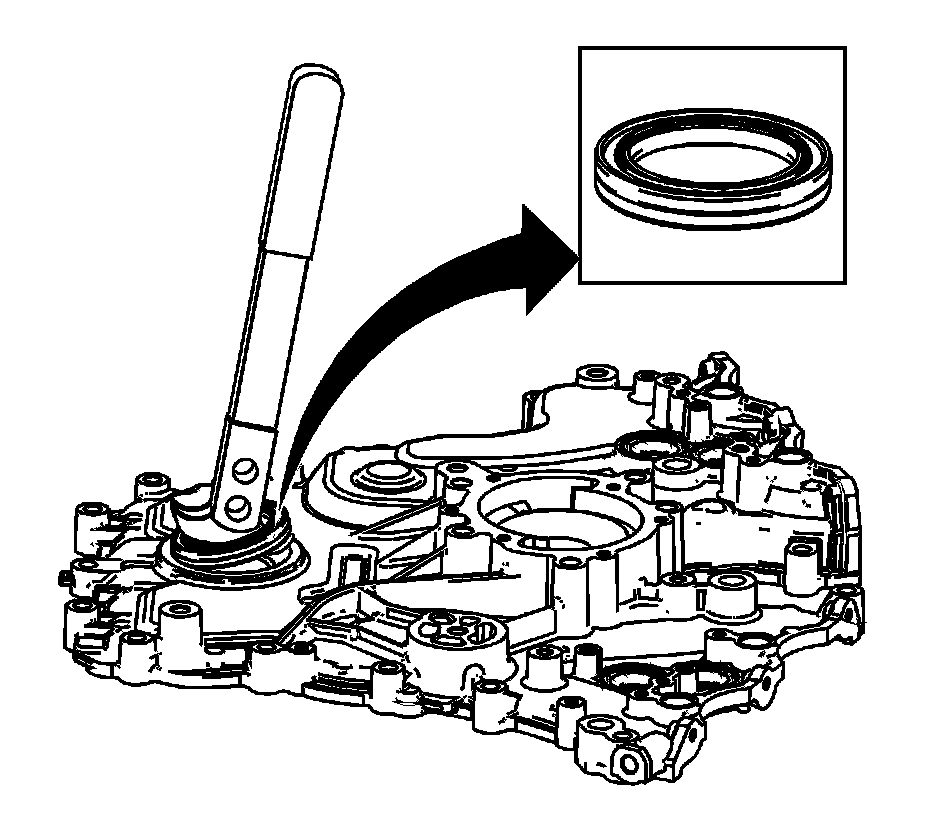

1. Remove the crankshaft front oil seal from the engine front cover using theJ 45000.

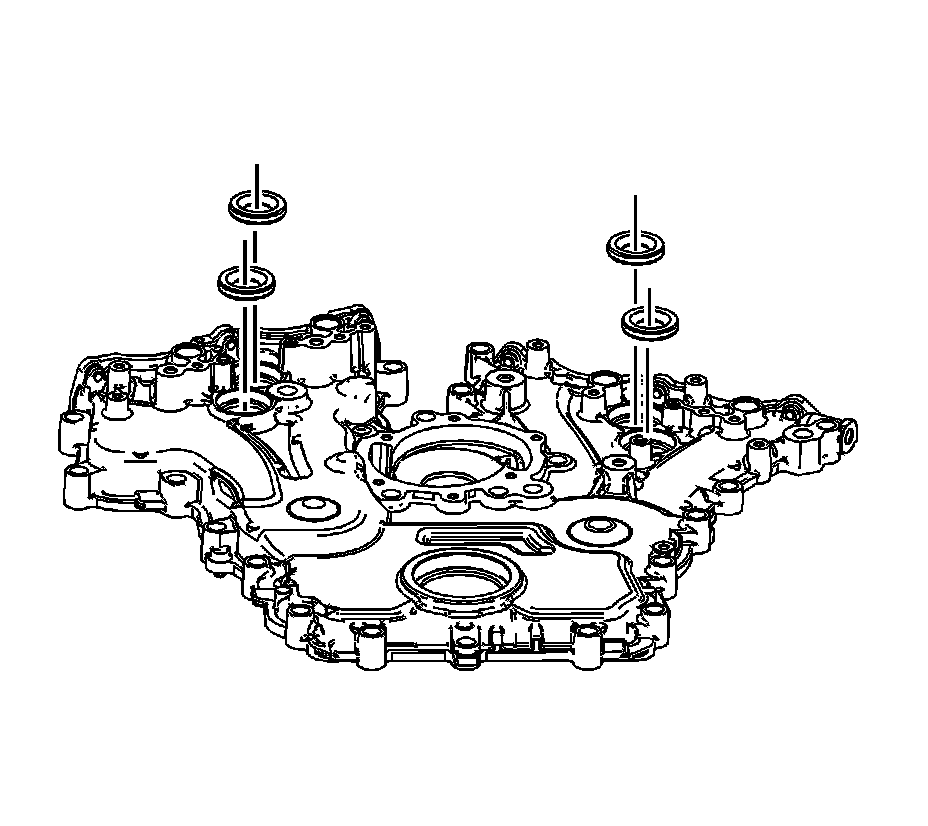

2. Remove the camshaft position actuator valve oil seals from the engine front cover.

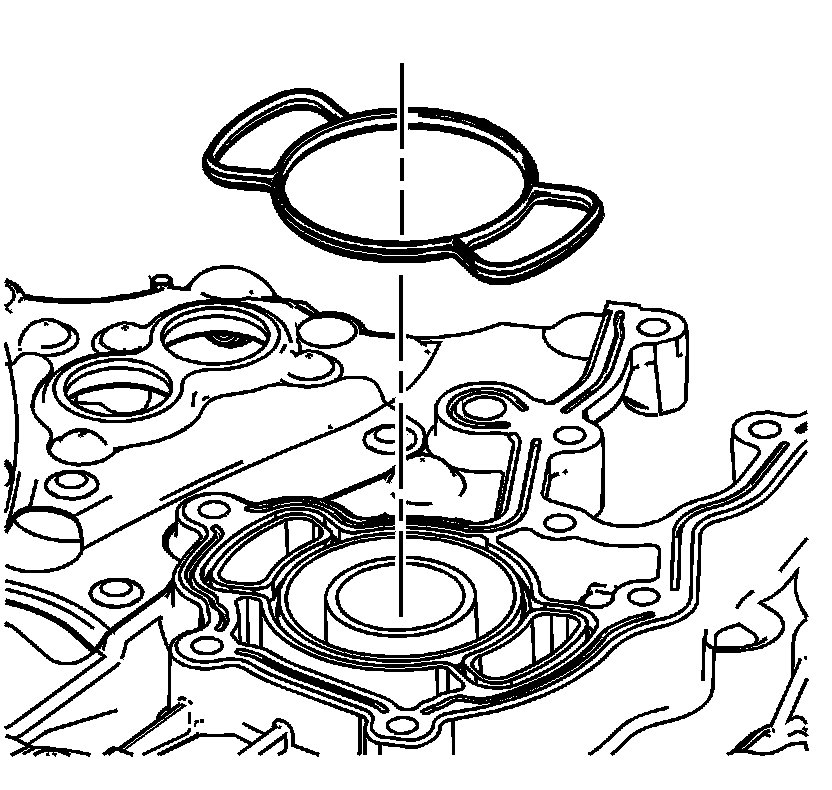

3. Remove the water pump seal from the engine front cover.
4. Discard the water pump seal.
