Fuse Block - I/P



Electrical Center Identification Views


Fuse Block - I/P Label













Fuse Block - I/P Top View






Fuse Block - I/P Bottom View






Fuse Block - I/P X1

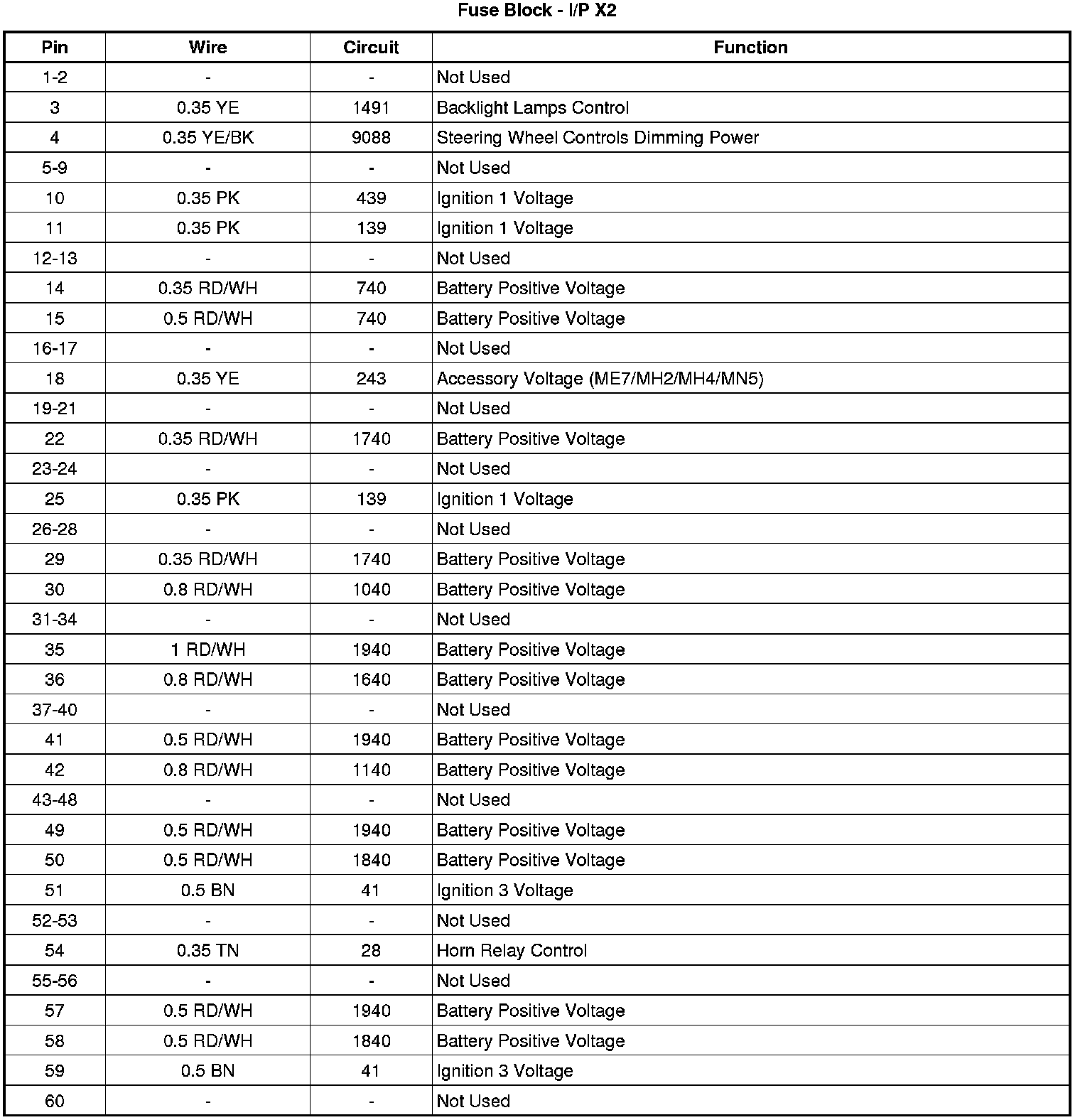

Fuse Block - I/P X2
