Dome Lamp: Diagrams

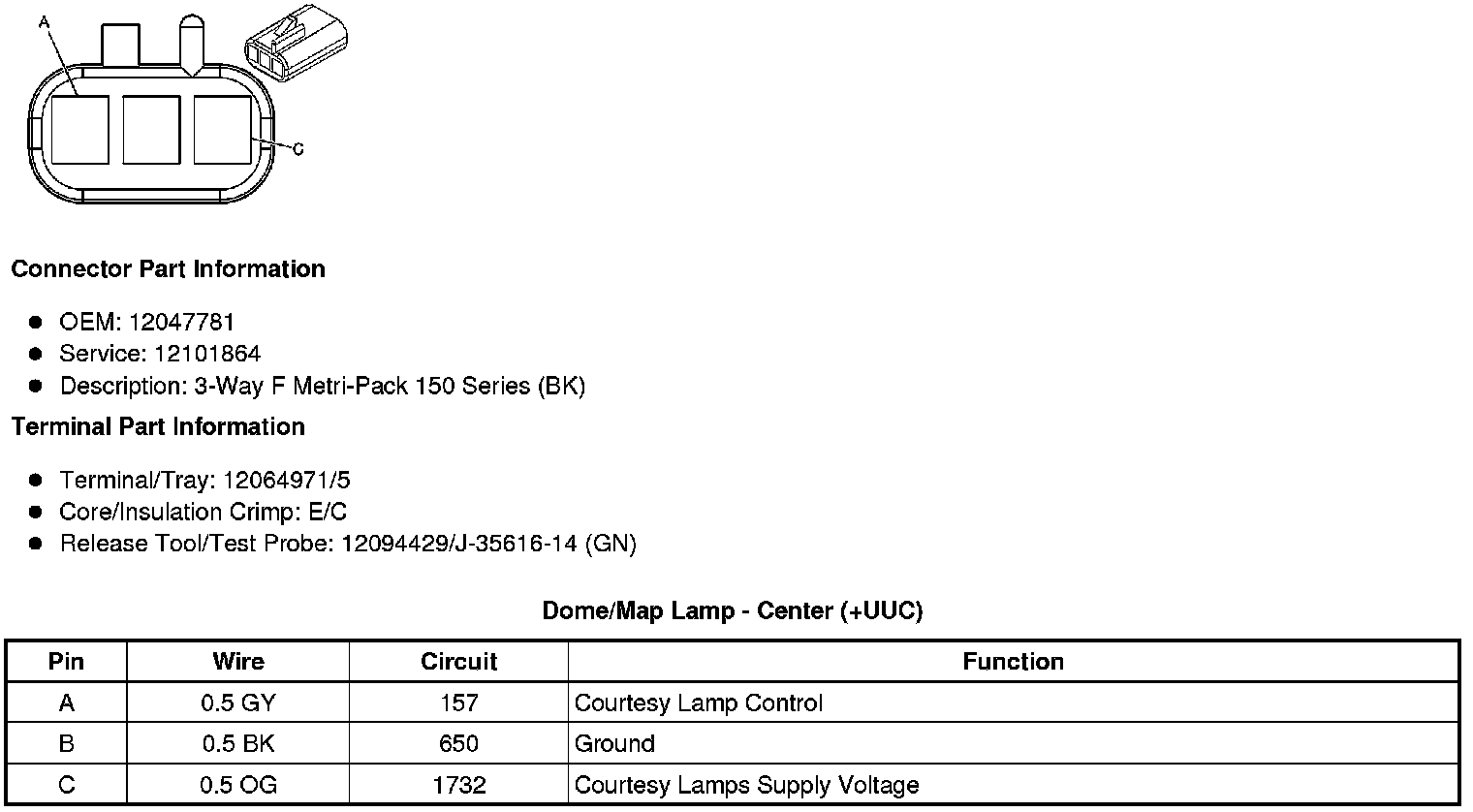

Dome/Map Lamp - Center (+UUC)






Dome/Map Lamp - Center (-UUC)

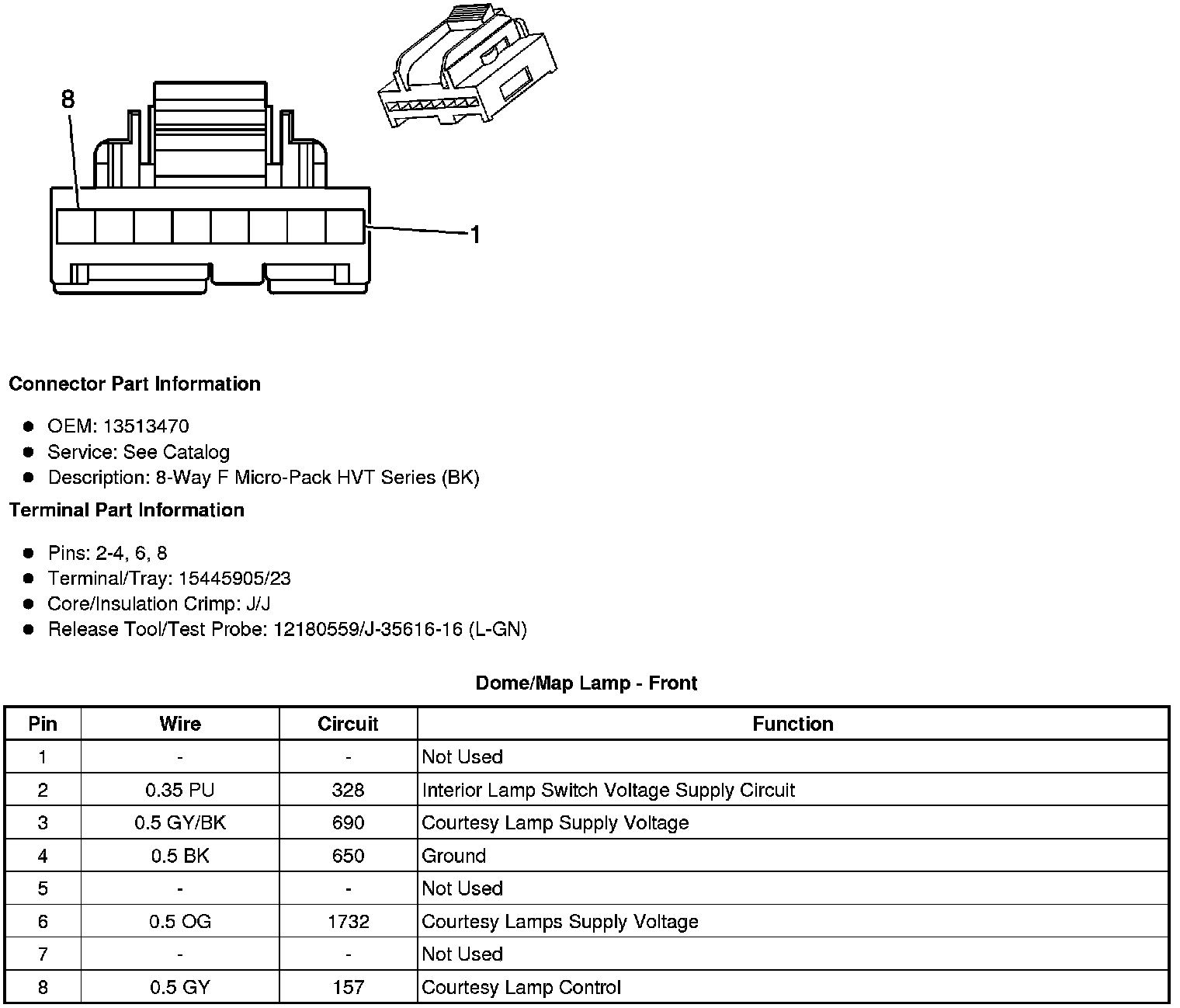

Dome/Map Lamp - Front
