Ignition Coil: Diagrams




Ignition Coil Module 1






Ignition Coil Module 2

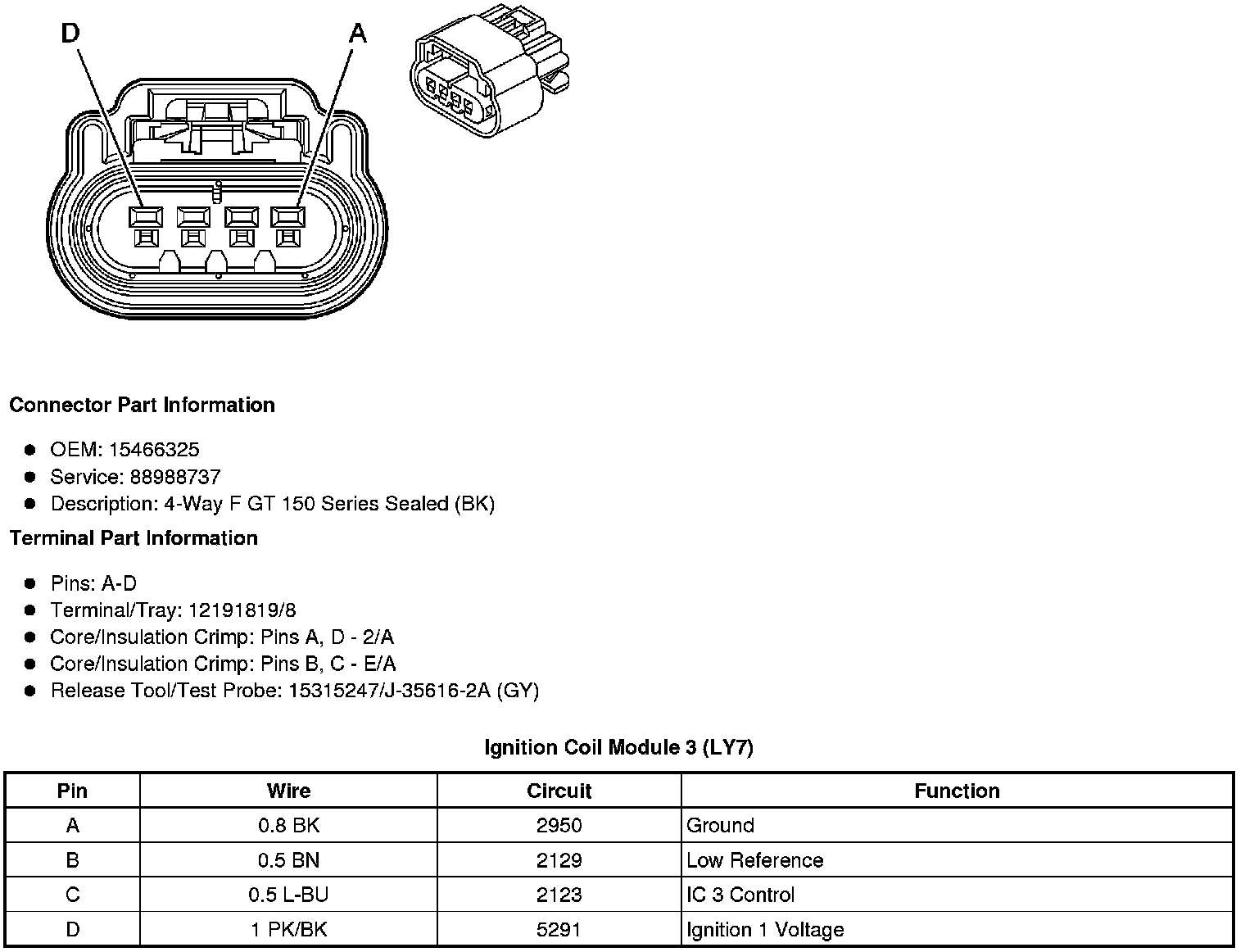

Ignition Coil Module 3

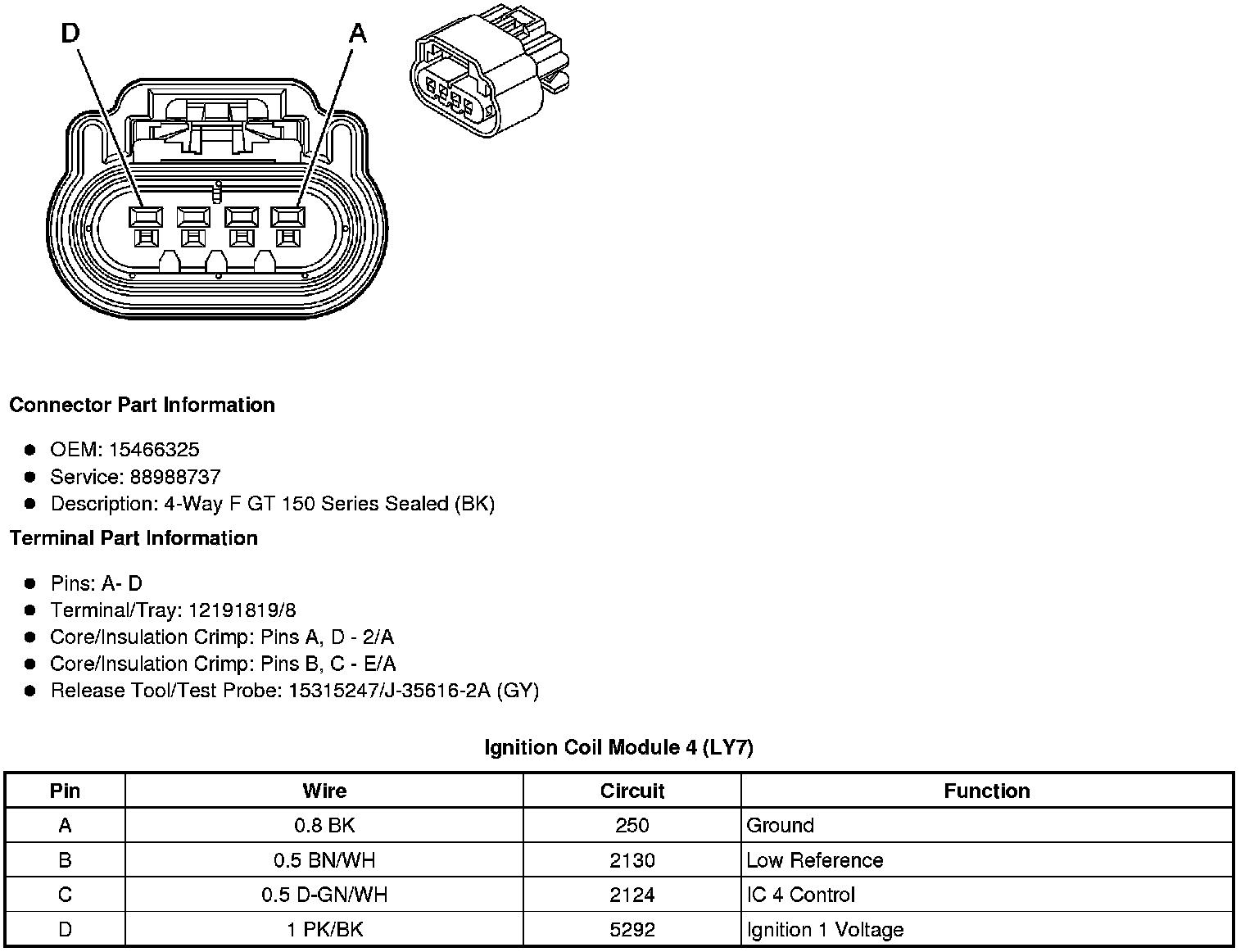

Ignition Coil Module 4






Ignition Coil Module 5






Ignition Coil Module 6
