Ignition Coil(s) Replacement - Bank 2

Ignition Coil Replacement - Bank 2

Removal Procedure





1. Remove the air fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement (Service and Repair) .

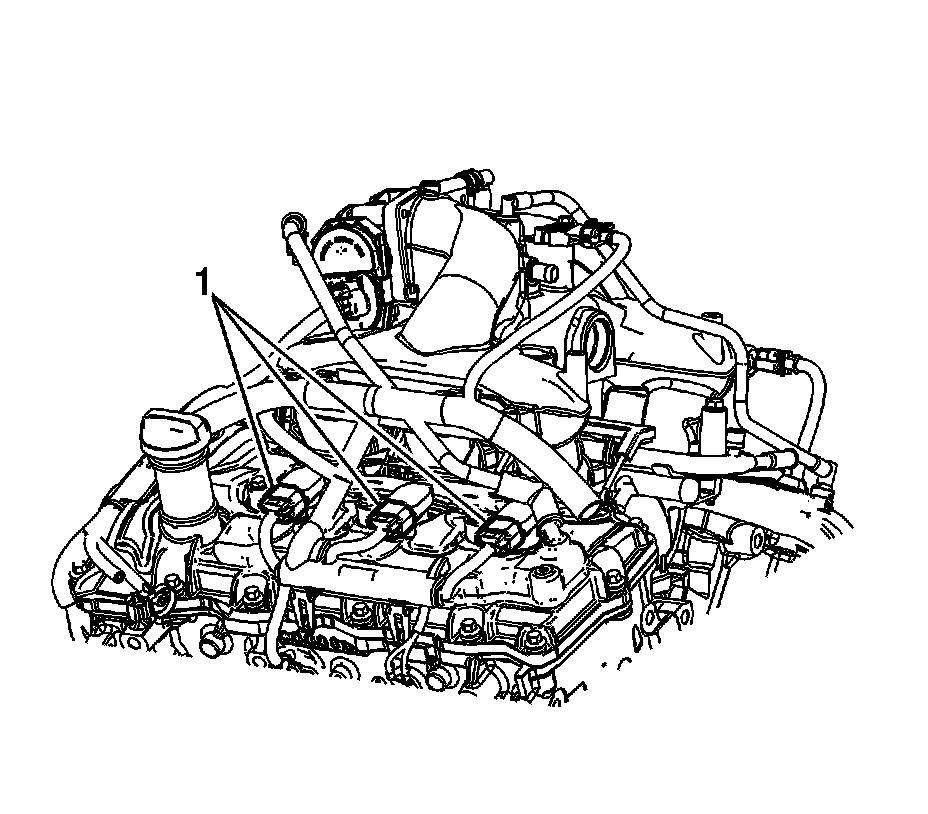

2. Disconnect the engine wiring harness electrical connectors (1) from the ignition coils.

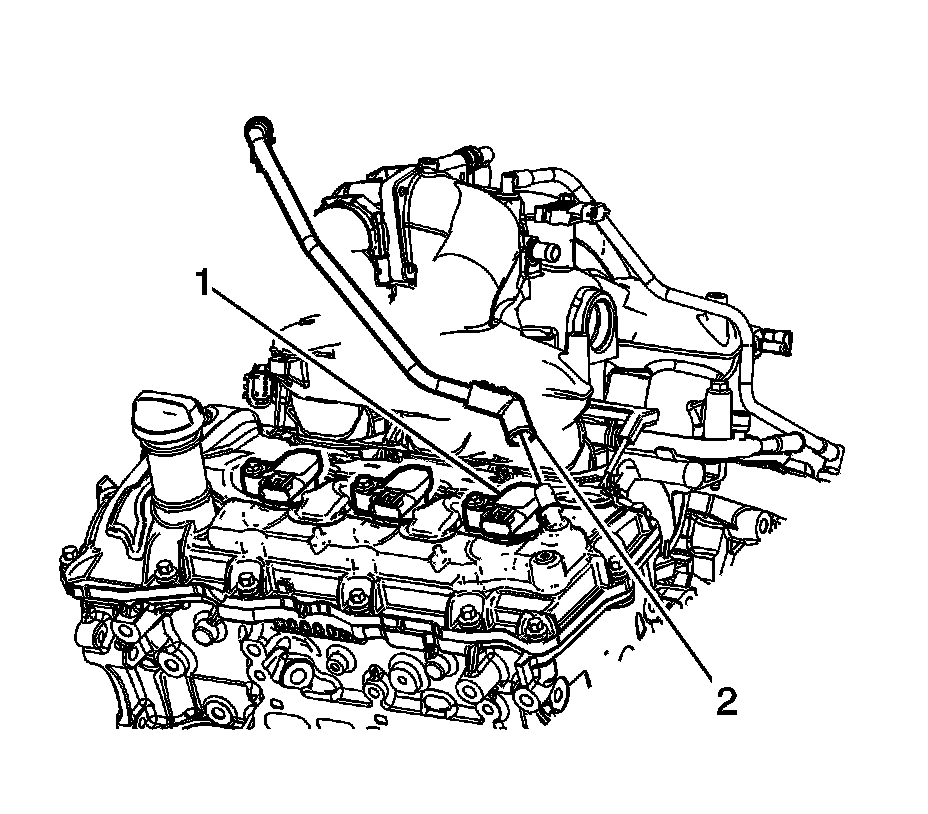

3. If removing the #6 ignition coil (1), disconnect the positive crankcase ventilation (PCV) fresh air line (2) from the camshaft cover.




4. Remove the ignition coil bolts.

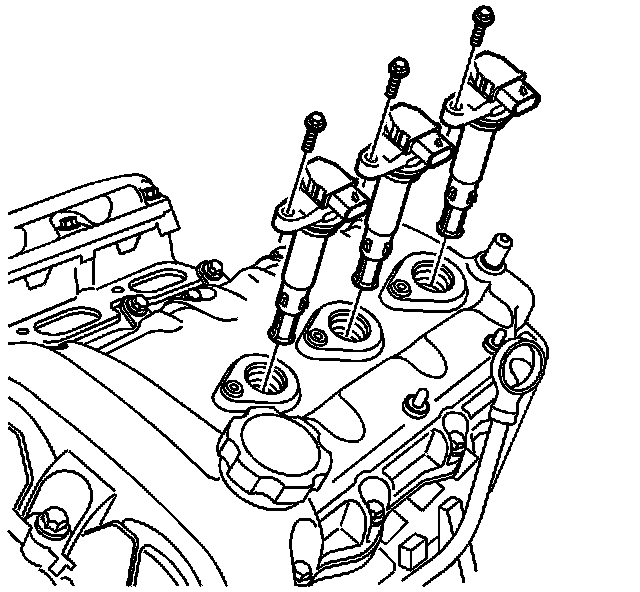

5. Remove the ignition coils.



Installation Procedure

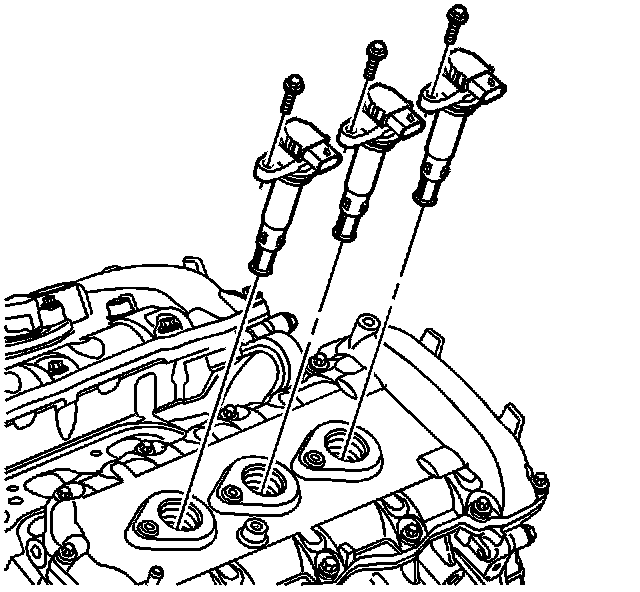

1. Install the ignition coils.

Notice: Refer to Fastener Notice (Fastener Notice) .

2. Install the ignition coil bolts.

Tighten the bolts to 10 N.m (89 lb in).





3. If the #6 ignition coil (1) was removed, connect the PCV fresh air line (2) to the camshaft cover.




4. Connect the engine wiring harness electrical connectors (1) to the ignition coils.
5. Install the air fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement (Service and Repair) .
