Transmission Speed Sensor: Diagrams




Automatic Transmission Input Shaft Speed (AT ISS) Sensor (ME7/MN5)

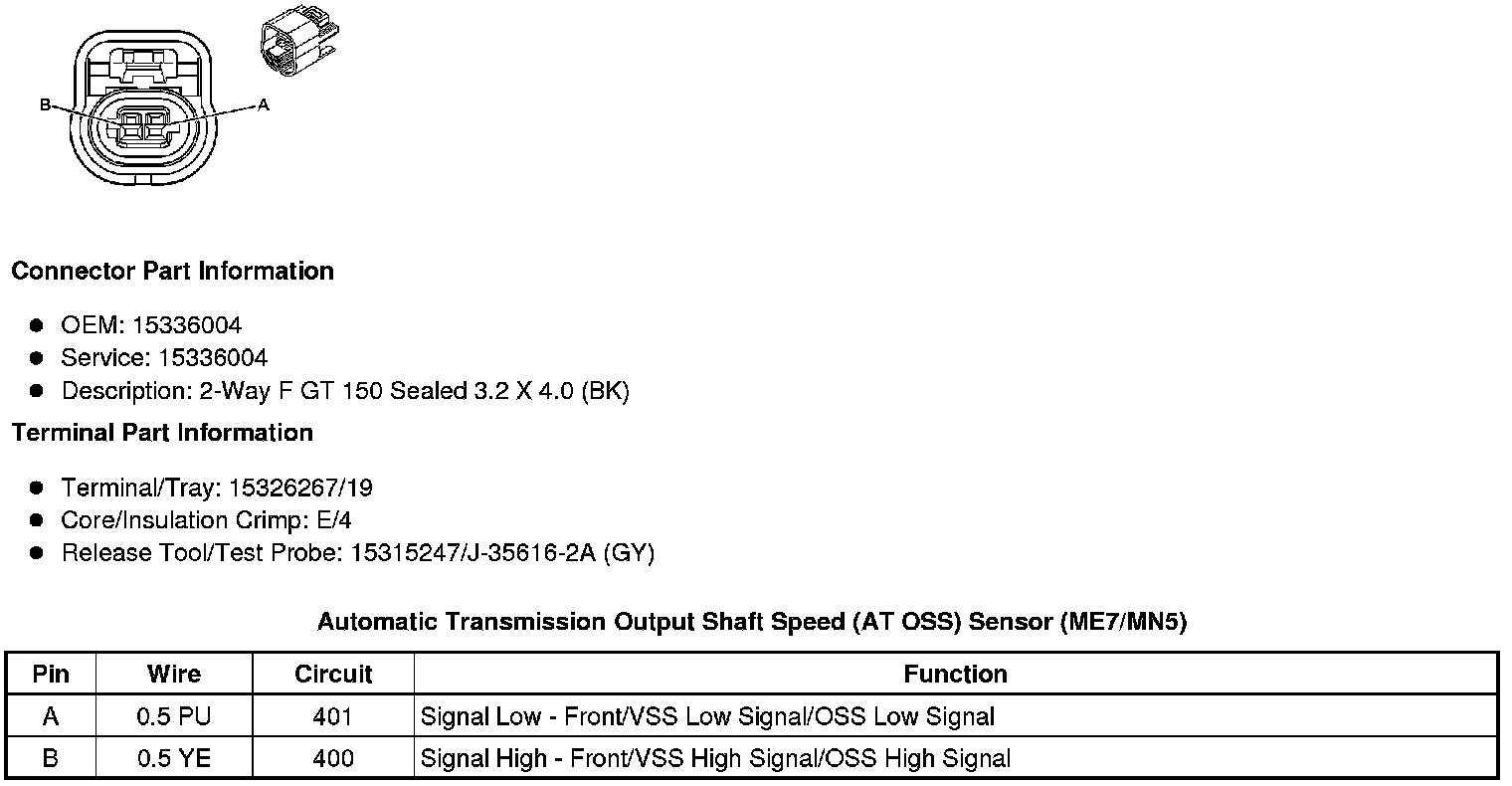

Automatic Transmission Output Shaft Speed (AT OSS) Sensor (ME7/MN5)
