Home >> Saturn >> 2008 >> VUE AWD V6-3.6L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Accessories and Optional Equipment >> Alarm Module >> Diagrams

Alarm Module: Diagrams

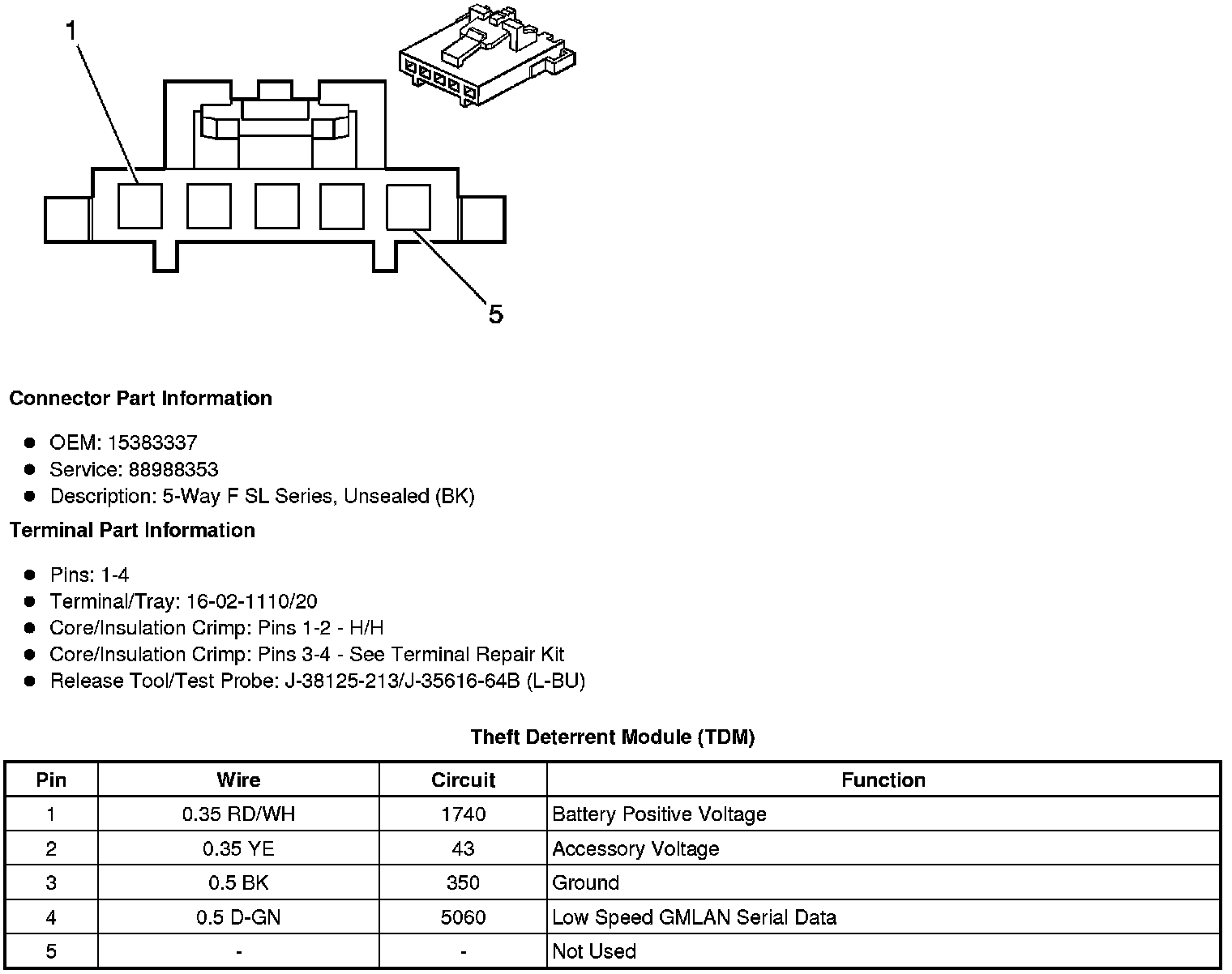

Theft Deterrent Module (TDM)
