Keyless Entry Module: Service and Repair

Remote Control Door Lock Receiver Replacement

Removal Procedure





Caution: Refer to Battery Disconnect Caution (Battery Disconnect Caution) .
1. Disconnect the negative battery cable.
2. Remove the driver knee bolster. Refer to Driver Knee Bolster Replacement (Service and Repair) .

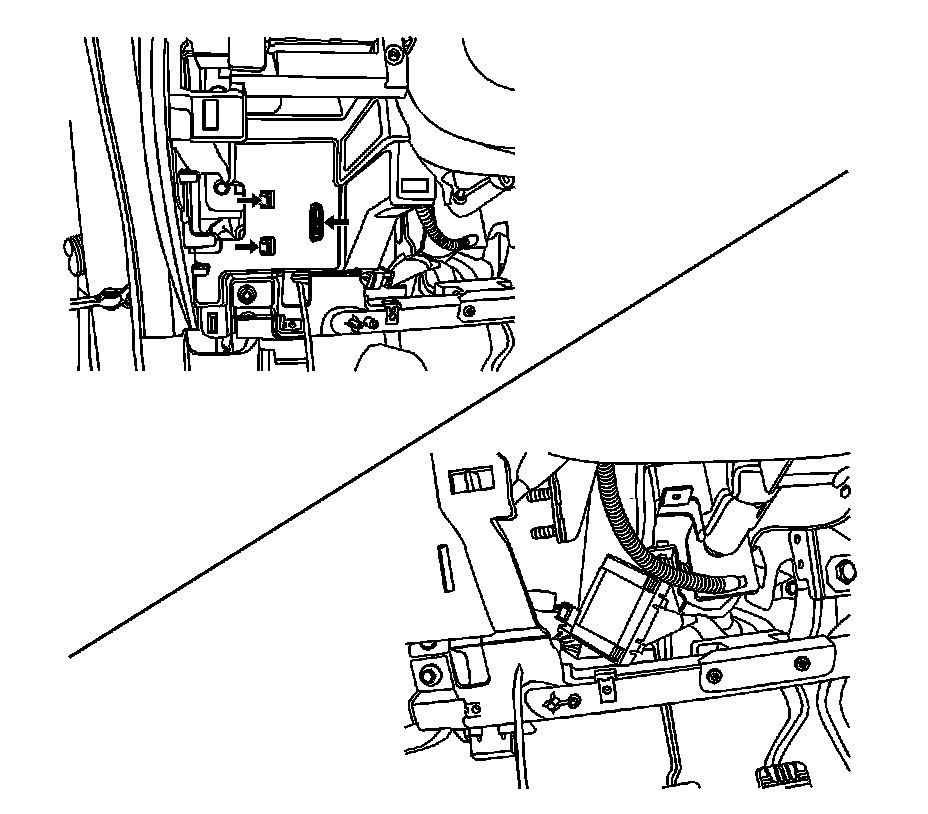

3. Remove the remote control door lock receiver.

Notice: Perform the SPO reprogramming when RFA receiver replaced.

4. Disconnect the electrical connector.



Installation Procedure





1. Connect the electrical connector.
2. Install the remote control door lock receiver.
3. Install the driver knee bolster. Refer to Driver Knee Bolster Replacement (Service and Repair) .
4. Connect the negative battery cable.
