Camshaft Position Sensor: Locations

Powertrain Component Views

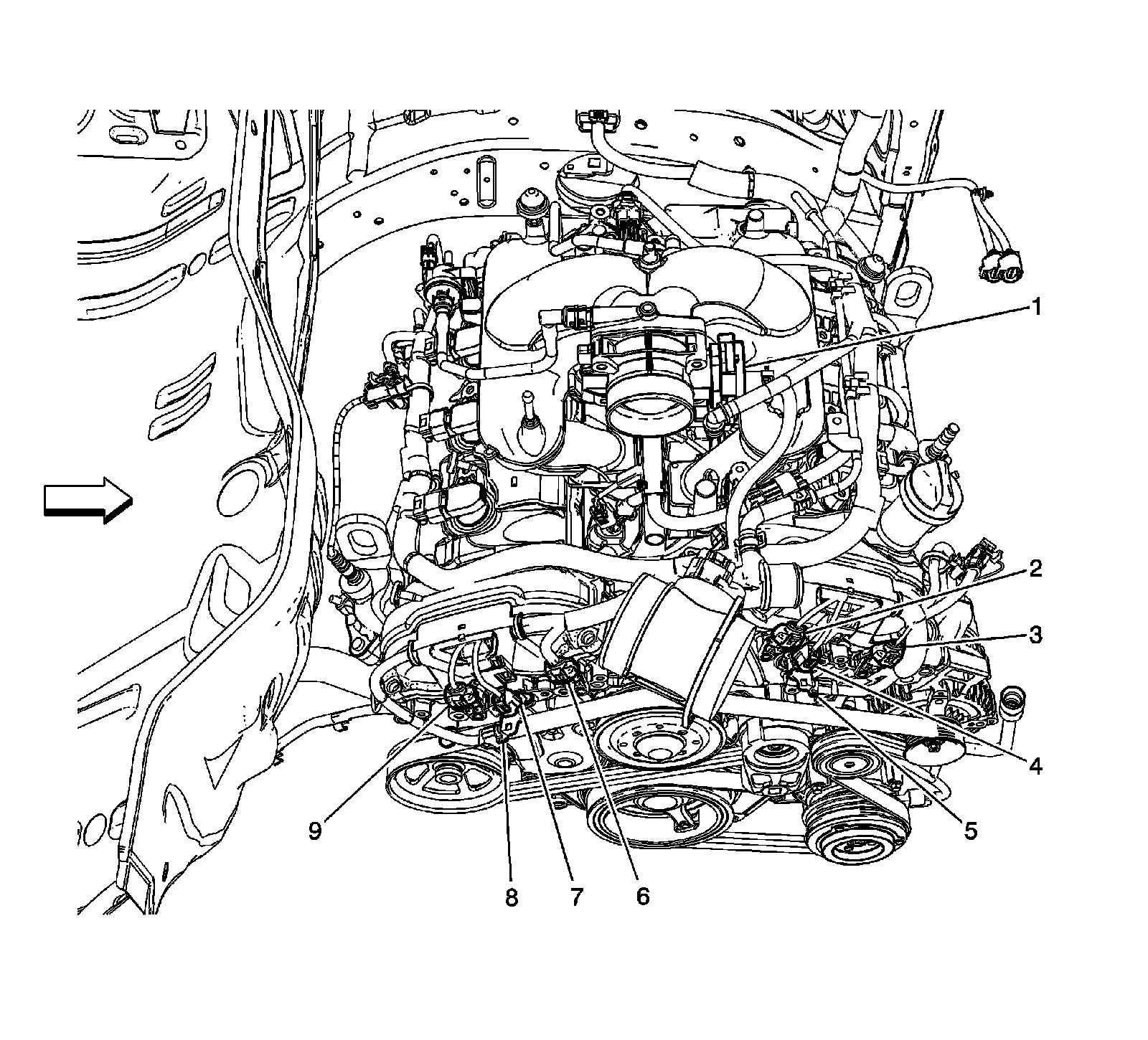

Right Side of the Engine




1 - Throttle Actuator Control (TAC) Module
2 - Camshaft Position (CMP) Sensor - Bank 2 Intake
3 - Camshaft Position (CMP) Sensor - Bank 2 Exhaust
4 - Camshaft Position (CMP) Actuator Solenoid - Bank 2 Intake
5 - Camshaft Position (CMP) Actuator Solenoid - Bank 2 Exhaust
6 - Camshaft Position (CMP) Sensor - Bank 1 Intake
7 - Camshaft Position (CMP) Actuator Solenoid - Bank 1 Intake
8 - Camshaft Position (CMP) Actuator Solenoid - Bank 1 Exhaust
9 - Camshaft Position (CMP) Sensor - Bank 1 Exhaust
