Final Drive and Differential Assembly Install



Final Drive and Differential Assembly Install

Tools Required

J 36850 TRANSJEL(TM)

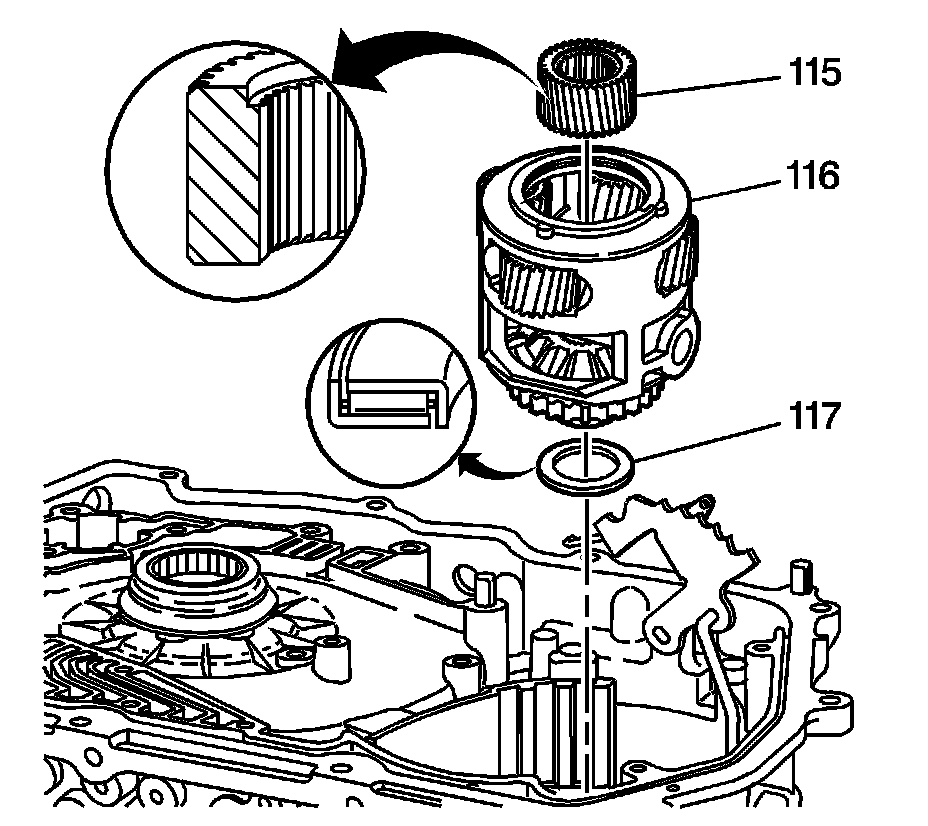

1. Install the final drive carrier to case thrust bearing (117) onto the final drive carrier. Retain the bearing withJ 36850 .
2. Install the complete final drive carrier assembly (116) into the transmission case (51).
3. Install the thrust bearing (700) into the final drive carrier assembly (116). Retain the bearing withJ 36850 .

Important: Install the sun gear with the grooved side up (flat side down).


4. Install the final drive sun gear (115) into the final drive carrier (116).
