Stub Shaft Removal

Stub Shaft Removal


Tools Required
* J 6125-1B Slide Hammer
* J 38868 Shaft Remover







Important: Handle the stub shaft carefully. The stub shaft sleeve is reusable if the sleeve is not damaged or removed from the stub shaft. Damage to the stub shaft sleeve will result in a transmission fluid leak.


1. Remove and discard the snap ring (57) from the end of the stub shaft (58). The stub shaft snap ring is not reusable.

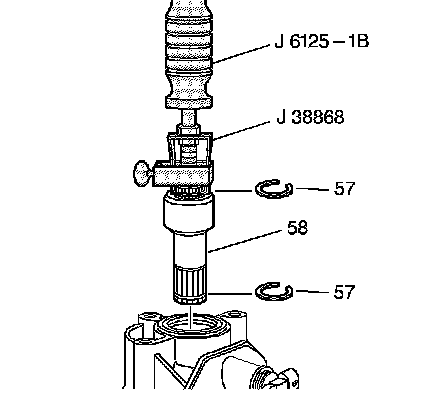

2. Attach theJ 6125-1B to theJ 38868 . Install theJ 38868 into the snap ring groove on the stub shaft (58). Tighten theJ 38868 securely to the stub shaft.
3. Pull lightly on the shaft and rotate it until the stub shaft snap ring at the differential seats in the taper on the differential side gear.

Notice: Confirm that the stub shaft snap ring (57) is properly seated in the differential side gear. If not damage may occur to the transmission when you attempt to remove the stub shaft.

4. Pull the stub shaft (58) out with the slide hammer impact.
