Shift Linkage: Service and Repair

Automatic Transmission Range Selector Lever Replacement

Removal Procedure

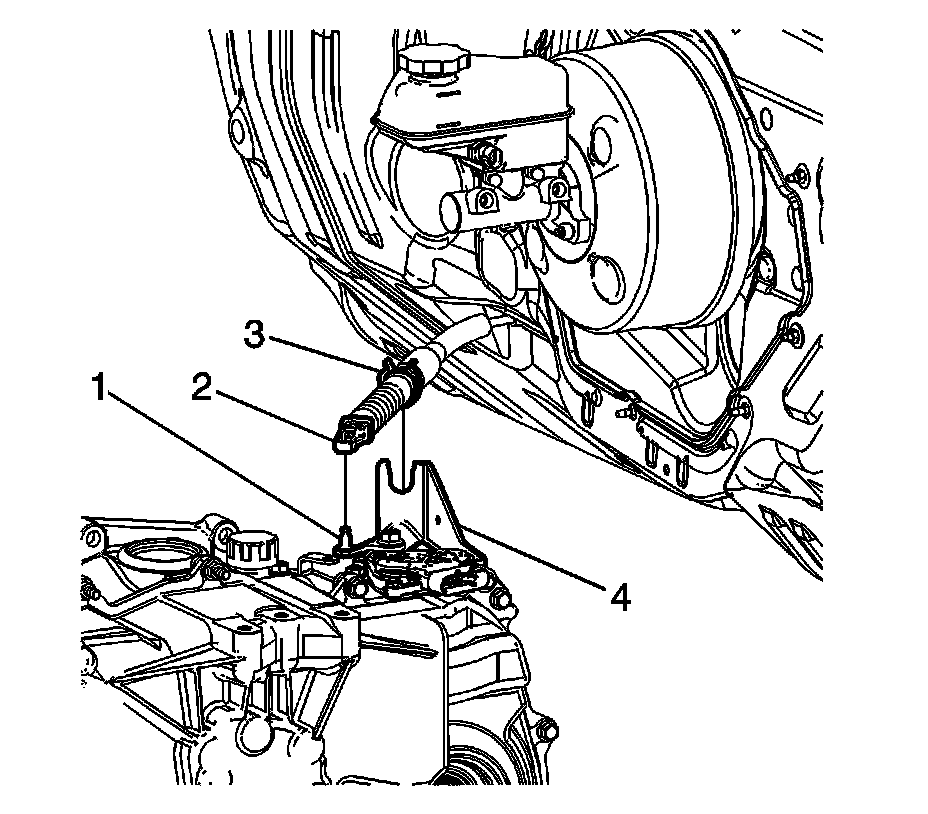

1. Disconnect the range select cable (2) from the range select lever (1).
2. Release the range select cable retaining clip (3) and remove the cable from the range select cable bracket (4).

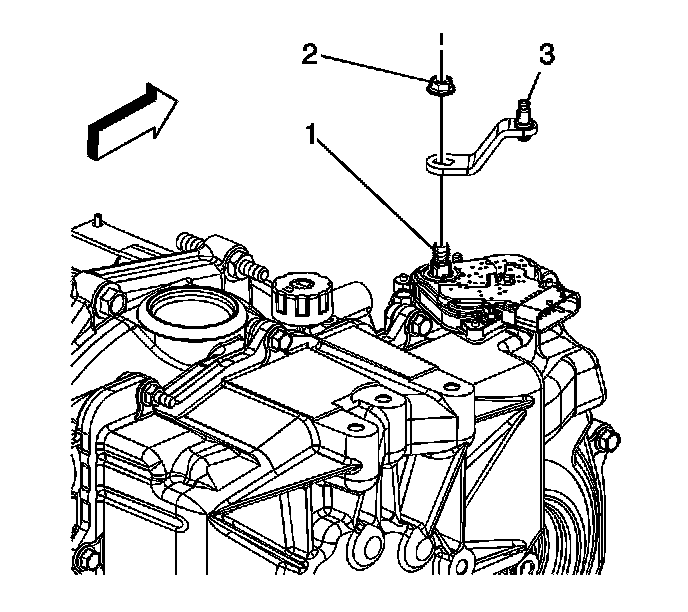

3. Remove the transmission range select lever nut (2).
4. Remove the transmission range select lever (3) from the transmission manual shaft (1).



Installation Procedure





1. Install the transmission range select lever (3) to the transmission manual shaft (1).

Notice: Refer to Fastener Notice (Fastener Notice) .

2. Install the transmission range select lever nut (2).

Tighten the nut to 35 N.m (26 lb ft).





3. Install the range select cable to the range select cable bracket (4). Ensure the cable retaining clip (3) is fully seated.
4. Install the shift control cable (2) to the range select lever (1).
