UNDERHOOD FUSE BLOCK

Main Underhood Fuse Block
The main underhood fuse block is located on the driver side of the engine compartment. The main underhood fuse block is the larger of the two fuse blocks in the engine compartment. Remove the fuse block cover for access to the fuses and relays. See Engine Compartment Overview for more information on its location. To remove fuses, hold the end of the fuse between your thumb and index finger and pull straight out or use the fuse puller located inside the fuse block.

Notice: Spilling liquid on any electrical components on your vehicle may damage it. Always keep the covers on any electrical component.

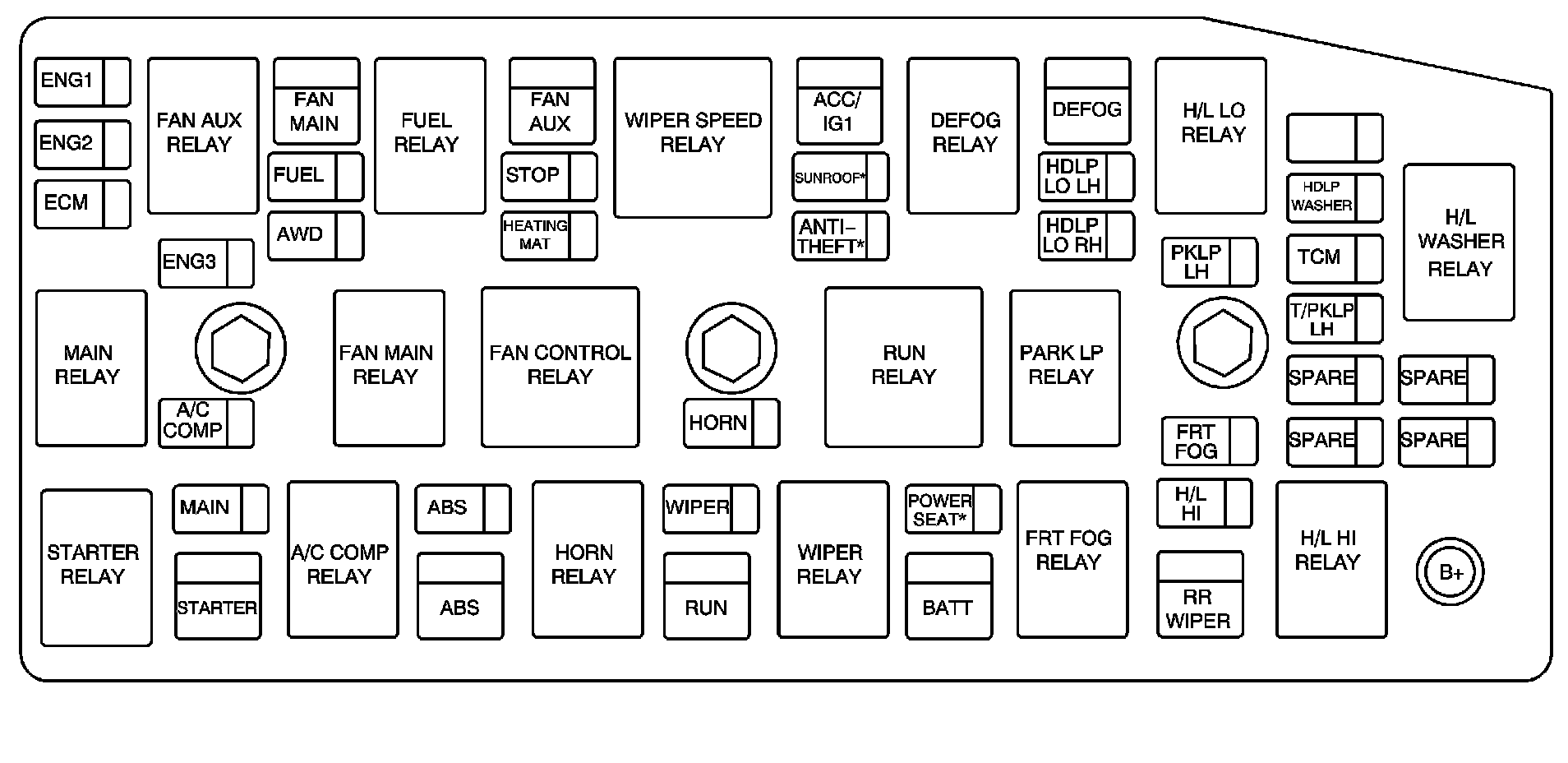

FUSES - USAGE
ENG 1 Engine 1
ENG 2 Engine 2
ECM Engine Control Module
ENG 3 Engine 3
A/C COMP Air Conditioning Compressor
MAIN Engine Control Module/CAM, Emissions, Injectors, Electronic Throttle Control
FUEL Fuel Pump
AWD Not Used
ABS Anti-lock Brake System Module (ABS)
STOP Stoplamp
HEATING MAT Heating Mat
HORN Horn
WIPER Windshield Wiper
SUNROOF* Sunroof (Option)
ANTI-THEFT* Theft Deterrent System (Option)
POWER SEAT* Power Seat (Option)
HDLP LO LH Left Headlamp Low-Beam
HDLP LO RH Right Headlamp Low-Beam
PKLP LH Left Parking Lamp
FRT FOG Front Fog Lamps
H/L HI H/L High
BLANK Not Used
HDLP WASHER Headlamp Washer
TCM Transmission Control Module
T/PKLP L H Left Turn Signal and Parking Lamp
SPARE Spare
SPARE Spare
SPARE Spare
SPARE Spare

RELAYS - USAGE
FAN AUX RELAY Cooling Fan Auxiliary Relay
FUEL RELAY Fuel Pump Relay
WIPER SPEED RELAY Windshield Wiper Speed Relay
DEFOG RELAY Defogger Relay
HI/LO RELAY High/Low Relay
H/L WASHER RELAY Washer Relay
MAIN RELAY Engine Control Module/CAM, Emissions, Injectors, Electronic Throttle Control Relay
FAN MAIN RELAY Cooling Fan Main Relay
FAN CONTROL RELAY Cooling Fan Control Relay
RUN RELAY Run Relay
PARK LP RELAY Parking Lamp Relay
STARTER RELAY Starter Relay
A/C COMP RELAY Air Conditioning Compressor Relay
HORN RELAY Horn Relay
WIPER RELAY Windshield Wiper Relay
FRT FOG RELAY Front Fog Lamp Relay
H/L HI RELAY H/L High Relay

HYBRID UNDERHOOD FUSE BLOCK
The Hybrid Underhood Fuse Block is located on the passenger side of the engine compartment. It is the smaller of the two fuse blocks in the engine compartment.






FUSES - USAGE
HYBRID PUMPS Hybrid Pumps
HILL HOLD VLVS Hill Hold Valves
AUX TRANSPUMP Auxiliary Transmission Pump
RELAYS - USAGE
HILL HOLD VLVS Hill Hold Valves
AUX TRANSPUMP Auxiliary Transmission Pump
