Operation CHARM
: Car repair manuals for everyone.
Home
>>
Saturn
>>
2008
>>
VUE FWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors By Number
>>
X200 - X299
>>
X202
X202

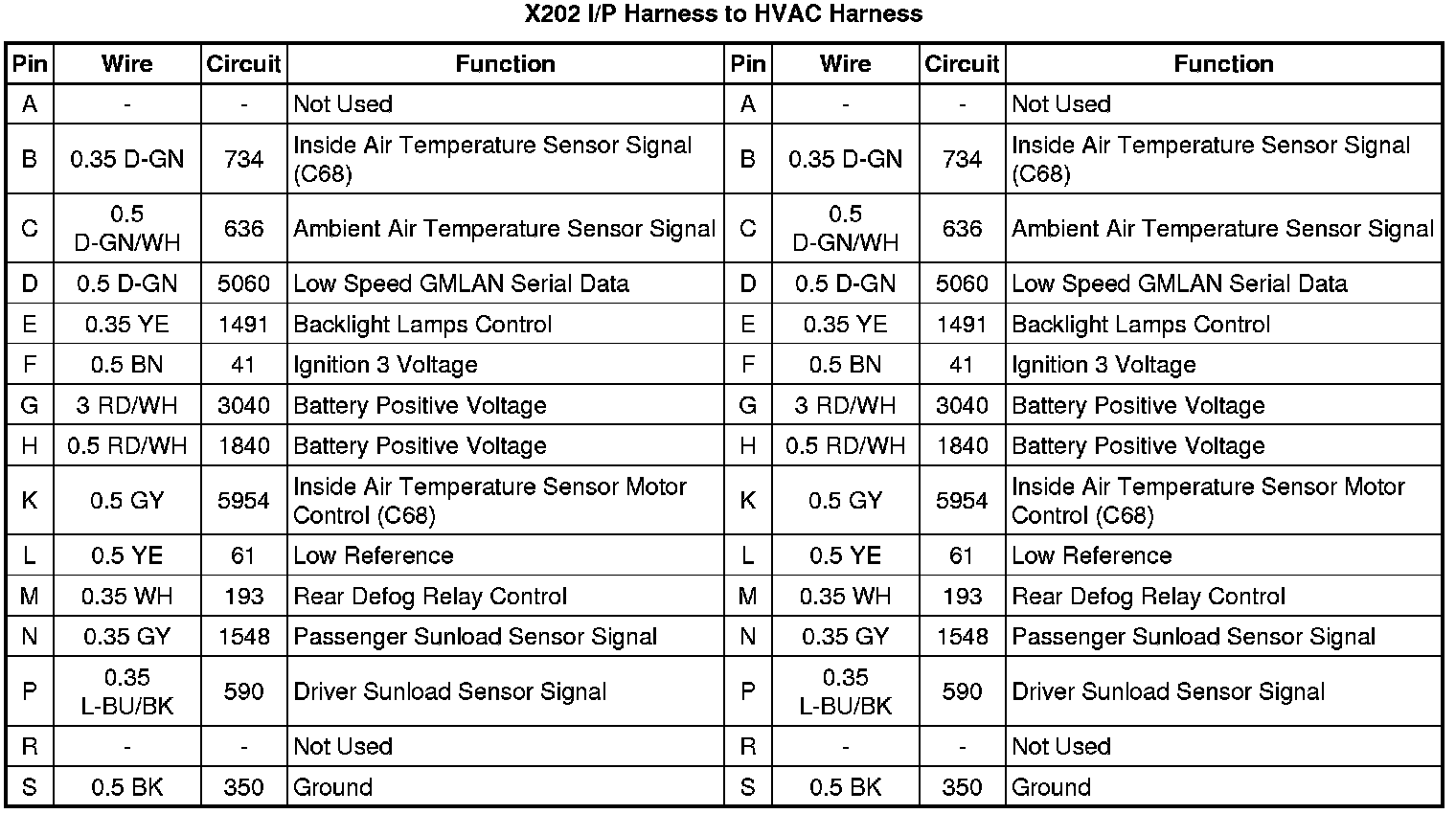

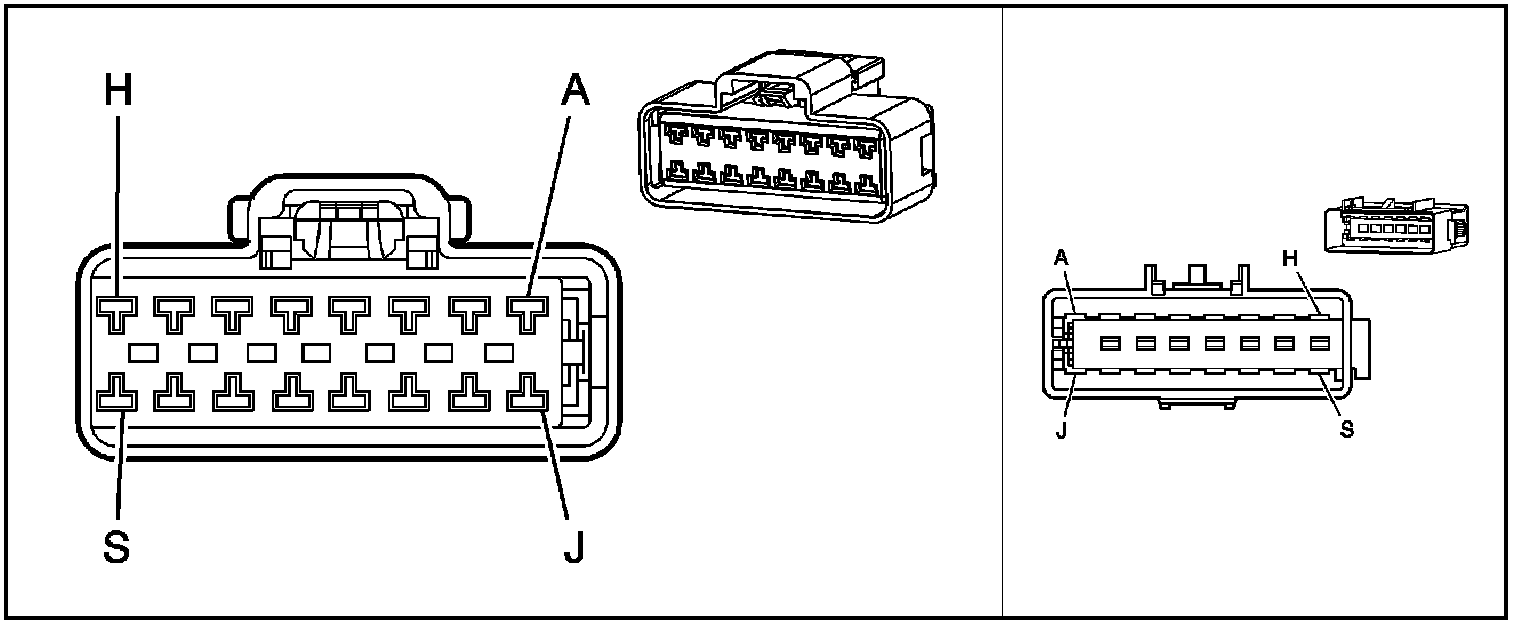

X202 I/P Harness to HVAC Harness
