131. Engine Coolant Thermostat Housing Installation

Engine Coolant Thermostat Housing Installation

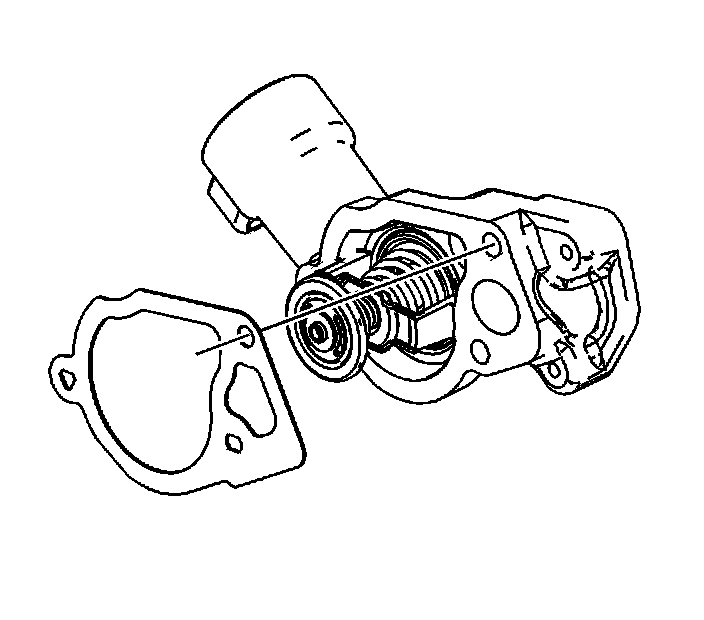

1. Install a NEW gasket onto the thermostat housing.




2. Install the thermostat housing.

Notice: Refer to Fastener Notice (Fastener Notice) .

3. Install the thermostat housing bolts.

Tighten the thermostat housing bolts to 10 Nm (89 lb in).





4. Install a NEW gasket and O-ring onto the heater inlet/outlet pipe assembly.




5. Install the heater inlet/outlet pipe assembly.
6. Install the heater inlet/outlet pipe assembly bolts.

Tighten the heater inlet/outlet pipe assembly bolts to 10 Nm (89 lb in).
