Variable High and 2-3-4 Clutch Assemble




Variable High and 2-3-4 Clutch Assemble

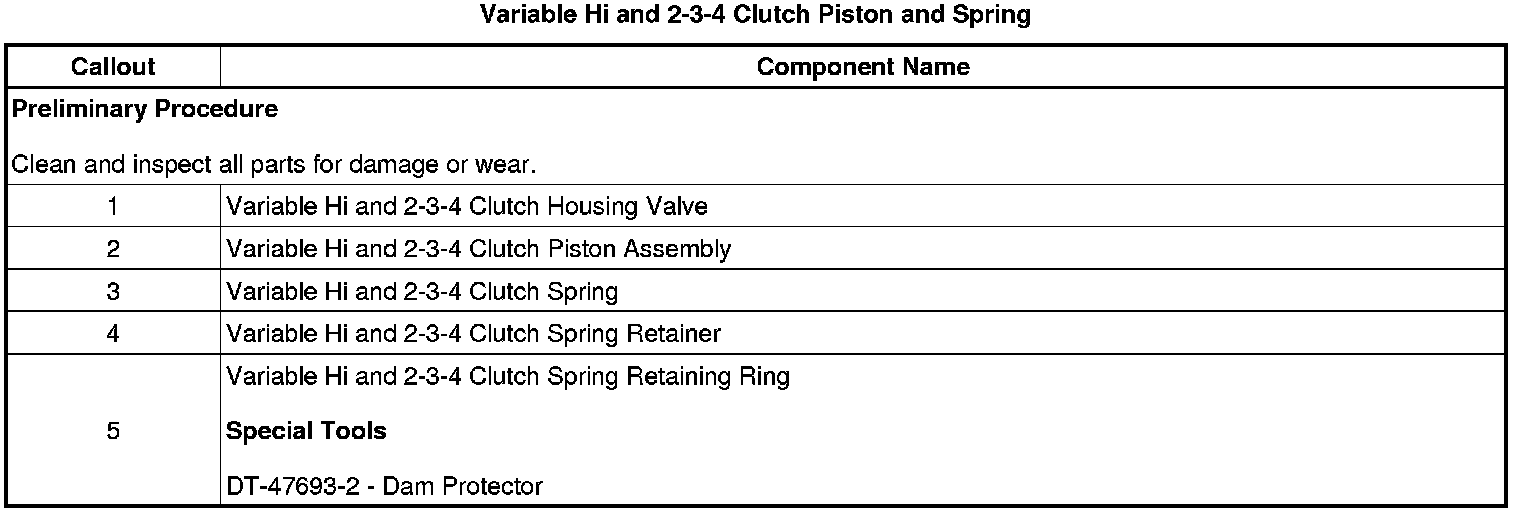

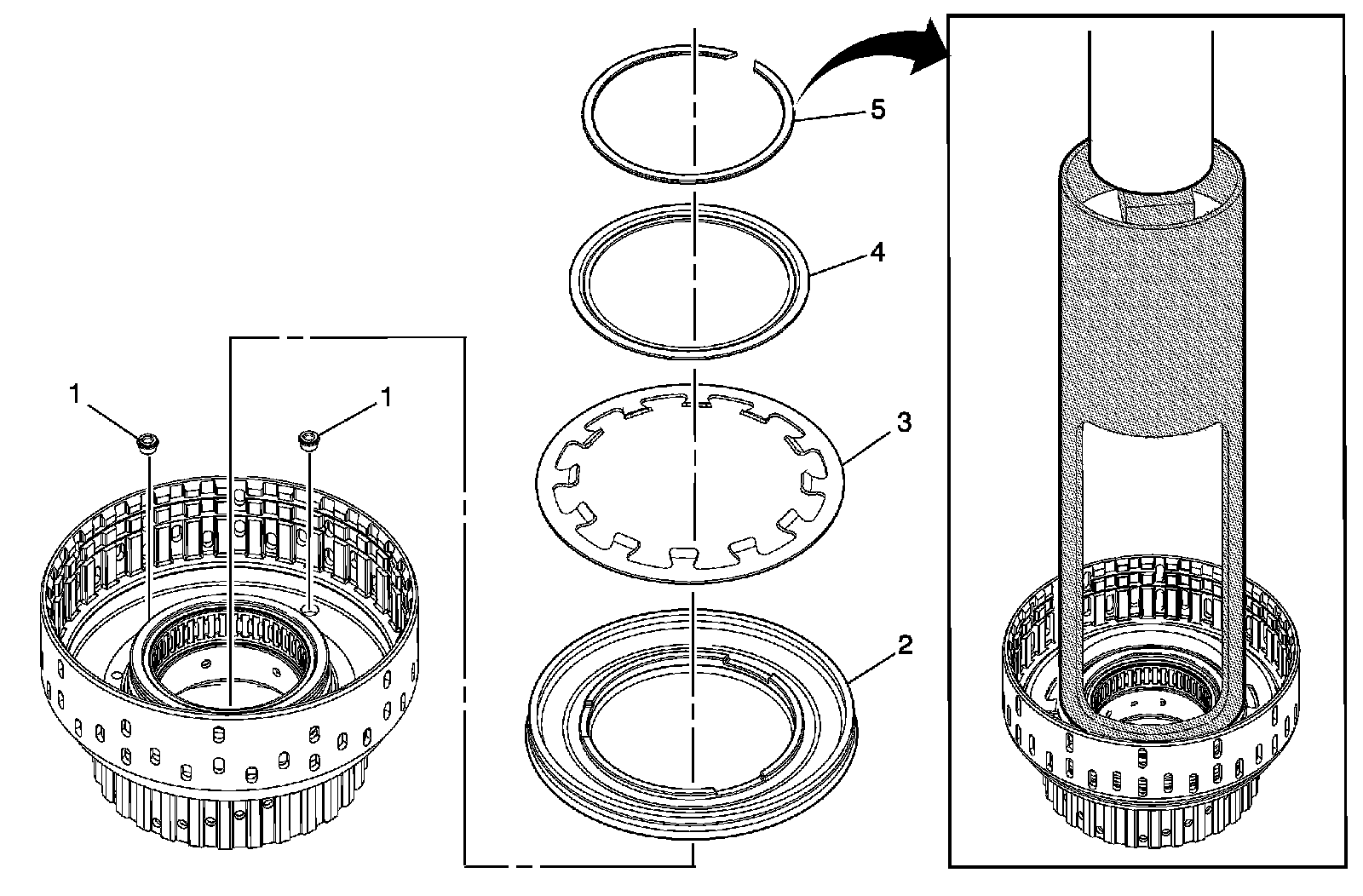

Variable Hi and 2-3-4 Clutch Piston and Spring

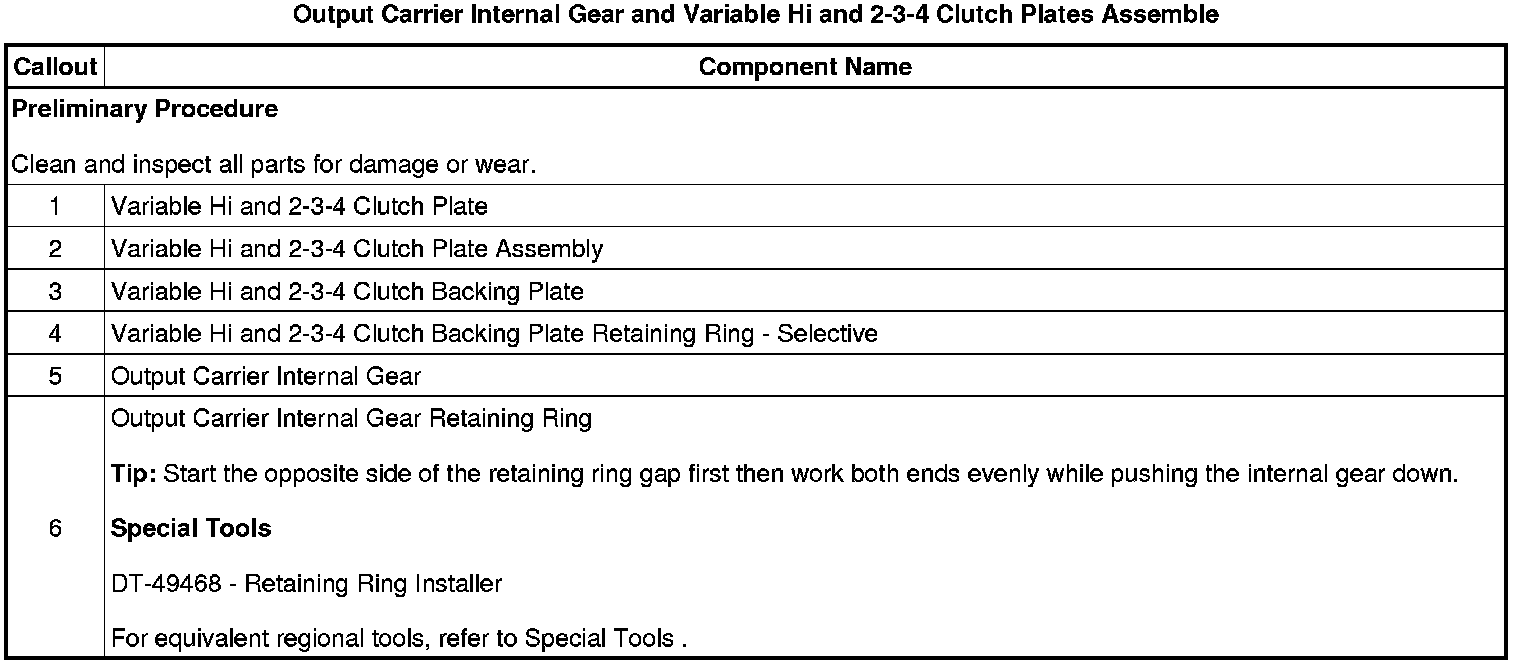

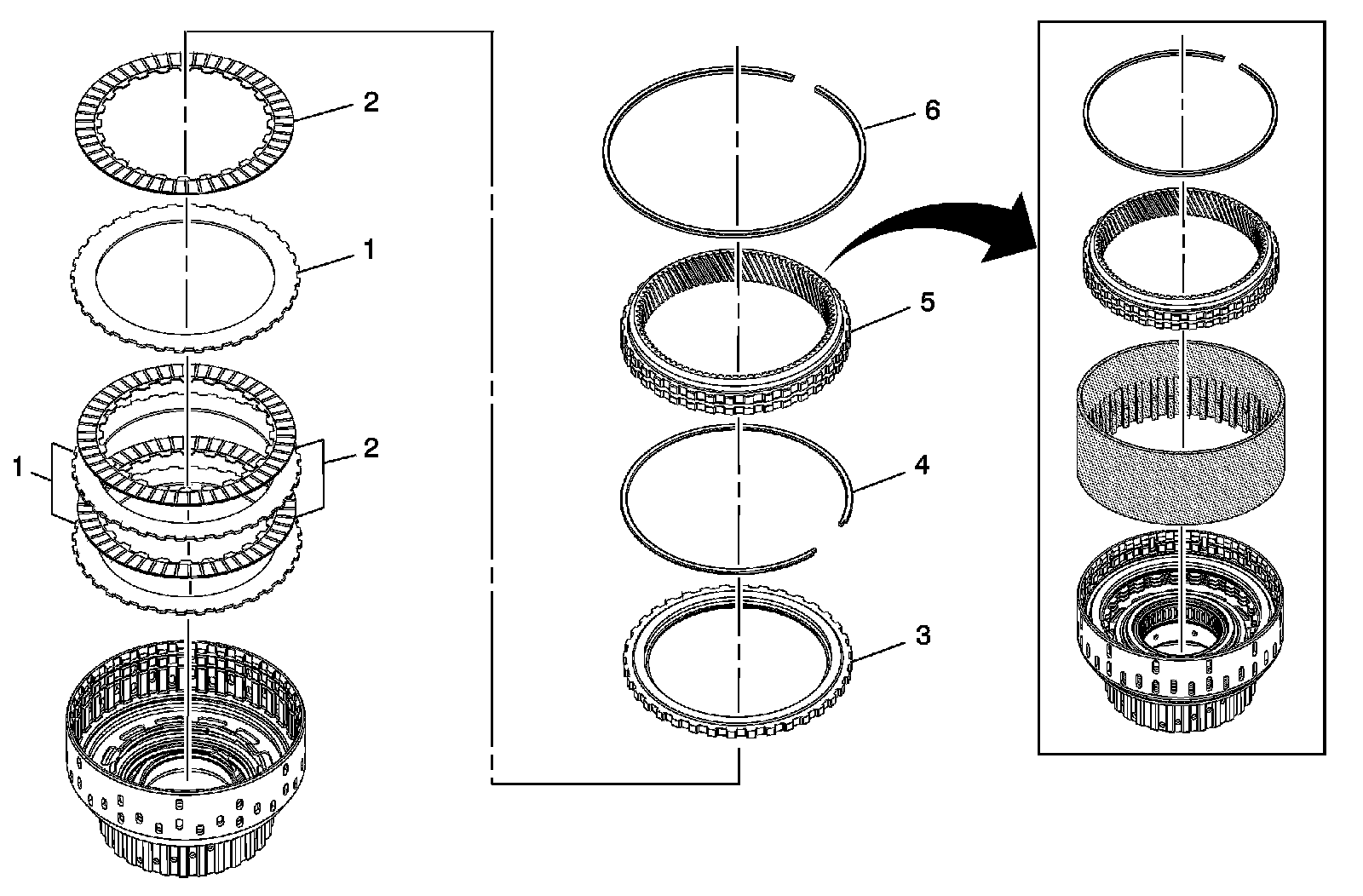

Output Carrier Internal Gear and Variable Hi and 2-3-4 Clutch Plates Assemble
