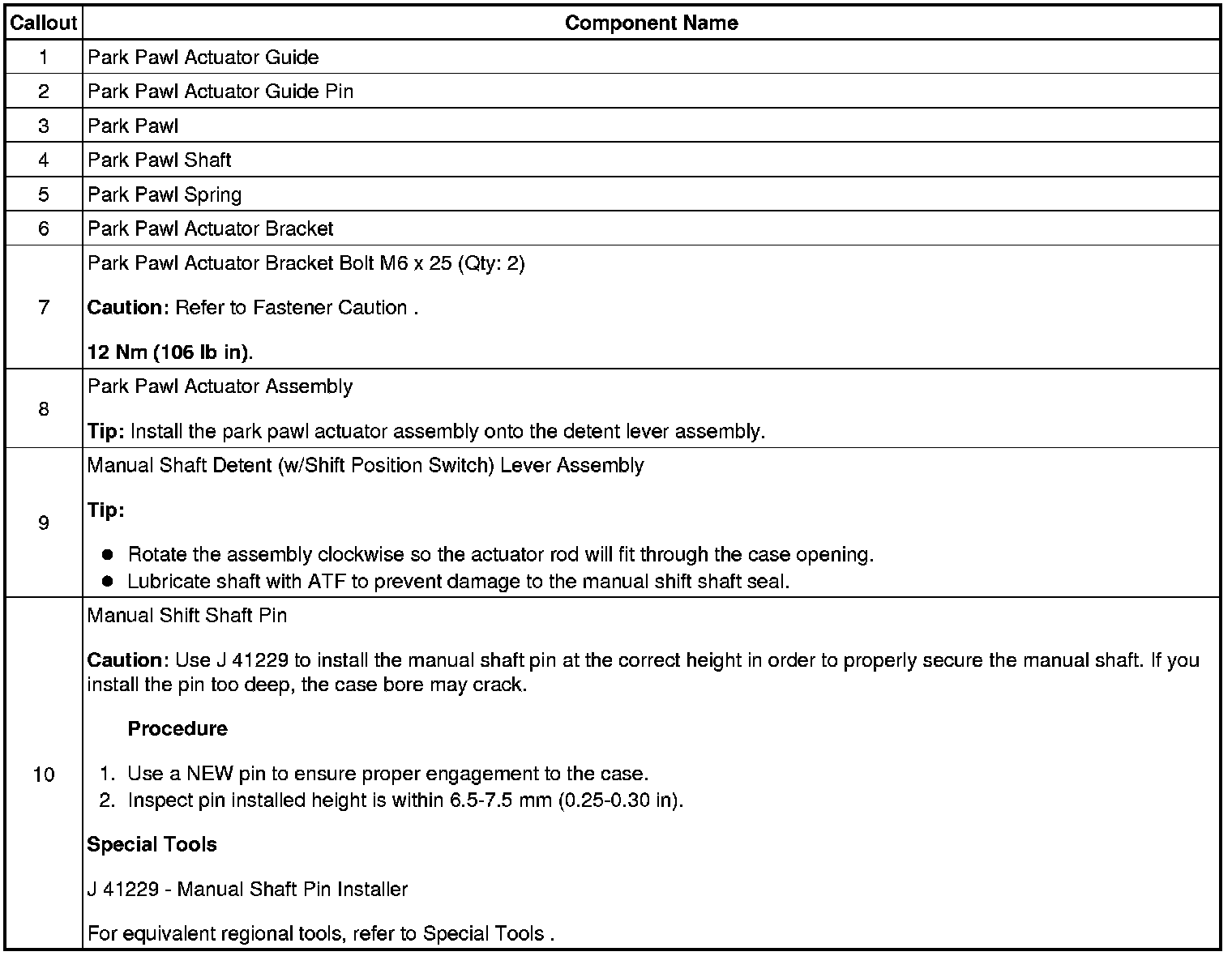

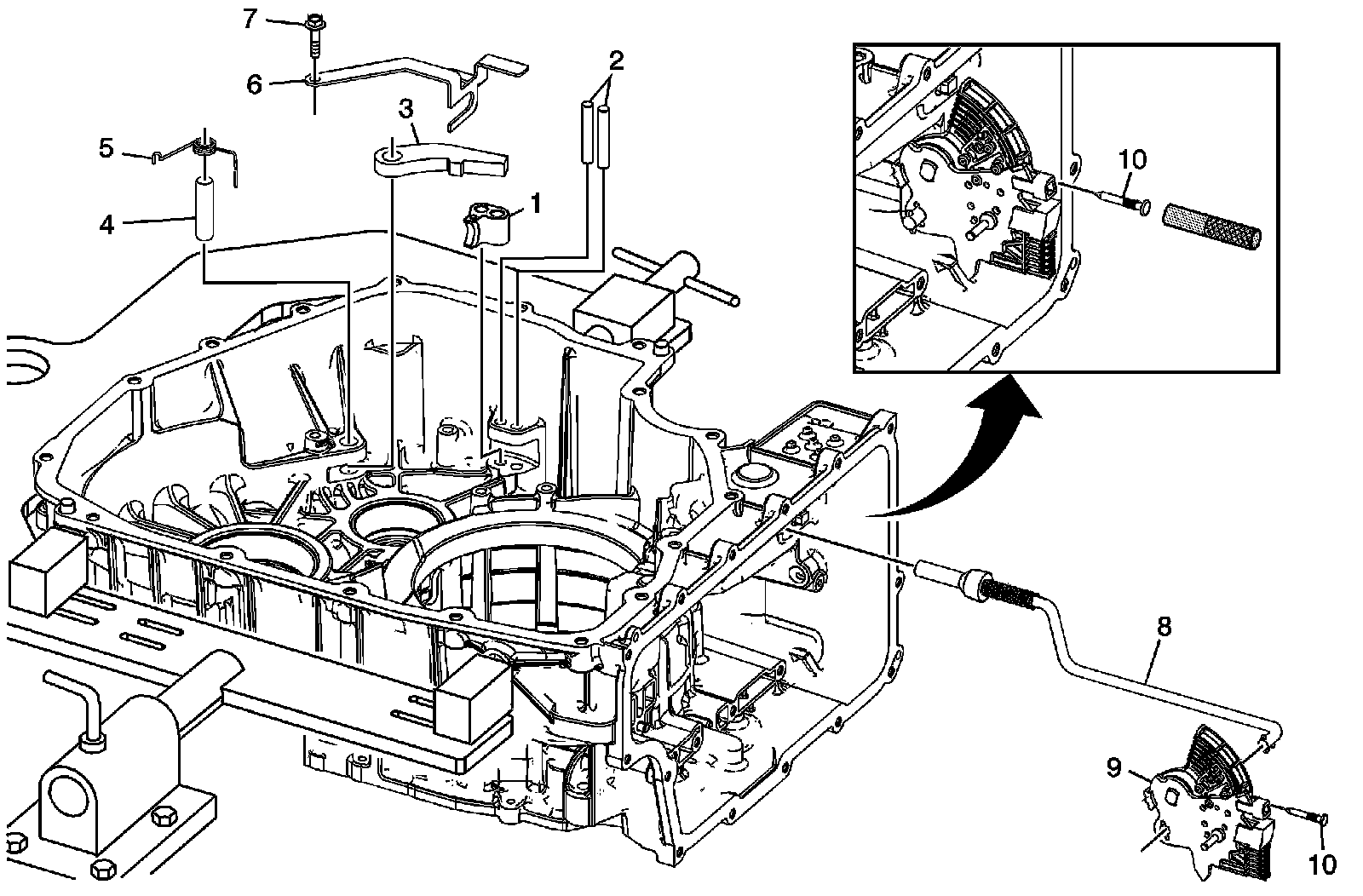

Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Installation




Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Installation
