Transmission Mode Indicator - A/T: Diagrams

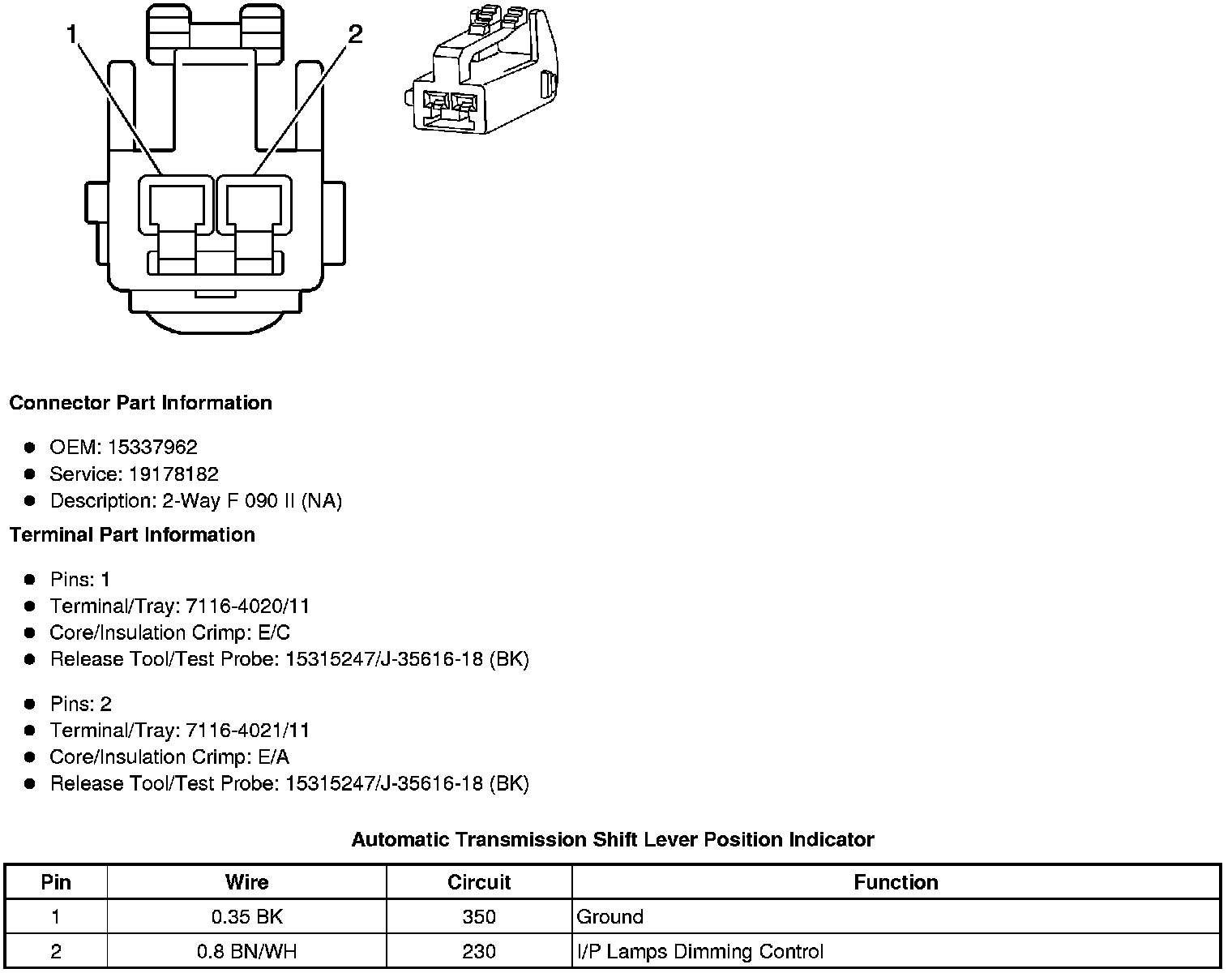

Component Connector End Views

Automatic Transmission Shift Lever Position Indicator
