2MT70 - Automatic Transmission
Disassembled Views

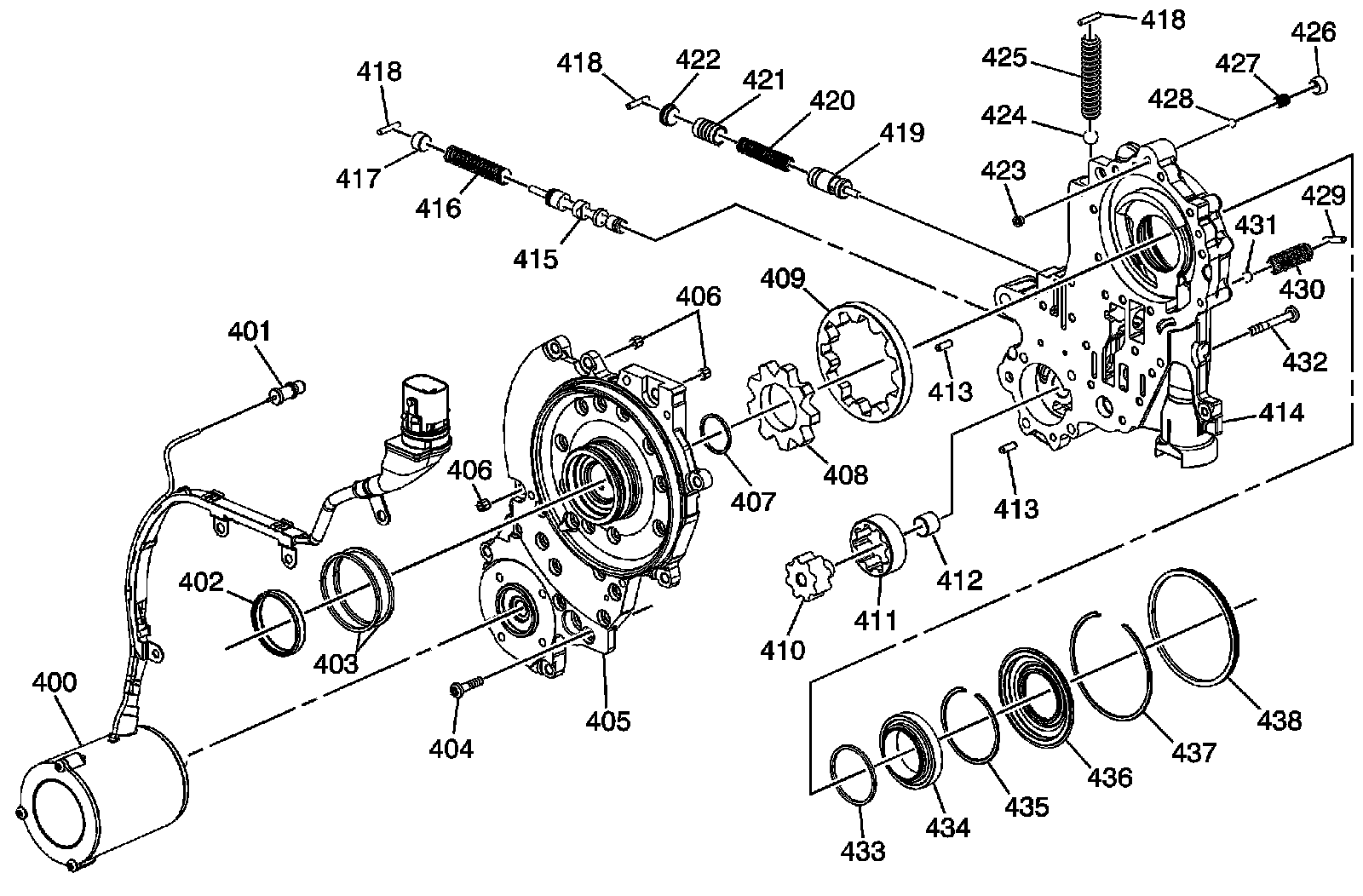

Fluid Pump Assembly
400 - Electric Auxiliary Pump Drive Motor Assembly
401 - A/Trans Auxiliary Fluid Pump Vent Fitting
402 - Input Shaft Bearing Assembly
403 - 1-3 Reverse Clutch Housing Seal
404 - A/Trans Fluid Pump Cover Bolt M6 x 25 mm Qty: 20
405 - A/Trans Fluid Pump Cover
406 - Harness Bolt Retainers Qty: 3
407 - A/Trans Fluid Pump Seal
408 - A/Trans Fluid Pump Drive Gear - Selective
409 - A/Trans Fluid Pump Driven Gear - Selective
410 - A/Trans Auxiliary Fluid Pump Drive Gear
411 - A/Trans Auxiliary Fluid Pump Driven Gear
412 - A/Trans Fluid Pump Drive Shaft Bushing
413 - A/Trans Fluid Pump Locator Pin
414 - A/Trans Fluid Pump Body Assembly
415 - Pressure Regulator Valve
416 - Pressure Regulator Valve Spring
417 - Pressure Regulator Valve Bore Plug
418 - Pressure Regulator Valve Bore Plug Retainer
419 - A/Trans Fluid Pump Cutoff Valve
420 - A/Trans Fluid Pump Cutoff Valve Spring
421 - A/Trans Fluid Auxiliary Pump Cutoff Valve
422 - A/Trans Fluid Pump Cutoff Valve Bore Plug
423 - 1-3 Reverse Clutch Housing Air Bleed Valve
424 - Pressure Relief Ball Valve - Main Pump
425 - Pressure Relief Ball Valve Spring
426 - A/Trans Torque Dampener Pressure Regulator Valve Bore Plug
427 - Control Valve Body Ball Check Valve Spring
428 - Control Valve Body Ball Check Valve
429 - Pressure Regulator Valve Bore Plug Retainer
430 - Pressure Relief Ball Valve Spring
431 - Pressure Relief Ball Valve - Auxiliary Pump
432 - A/Trans Auxiliary Fluid Pump Bolt M6 x 45 mm Qty: 4
433 - A/Trans Torque Dampener Bearing Seal
434 - A/Trans Torque Dampener Bearing Assembly
435 - A/Trans Torque Dampener Bearing Retaining Ring
436 - A/Trans Torque Dampener Fluid Seal Assembly
437 - A/Trans Torque Dampener Seal Retaining Ring
438 - A/Trans Fluid Pump Seal
Control Valve Body Assembly (2 of 2)
521 - Valve Retaining Clip
522 - Shift Solenoid Valve Spring
523 - Shift Solenoid Valve
524 - Variable Hi and 2-3-4 Clutch and Drive Motor/Generator Stator Cooling Regulator Boost Valve Spring
525 - Variable Hi and 2-3-4 Clutch and Drive Motor/Generator Stator Cooling Regulator Boost Valve
526 - Valve Bore Plug
527 - A/Trans Torque Dampener Bypass Clutch Spring
528 - A/Trans Torque Dampener Bypass Clutch Valve
529 - Actuator Feed Limit Valve Spring - Outer
530 - Actuator Feed Limit Valve Spring - Inner
531 - Actuator Feed Limit Valve
532 - Control Valve Body Ball Check Valve
533 - Control Valve Body
534 - Cooler Feed Limit Valve
535 - Cooler Feed Limit Valve Spring
536 - 1-3 Reverse Clutch and Generator/Drive Motor Stator Cooling Regulator Valve Spring
537 - 1-3 Reverse Clutch and Generator/Drive Motor Stator Cooling Regulator Valve
538 - Variable Hi and 2-3-4 Clutch and Drive Motor/Generator Stator Cooling Regulator Valve Spring
539 - Variable Hi and 2-3-4 Clutch and Drive Motor/Generator Stator Cooling Regulator Valve
540 - Variable Low and 1-2 Reverse and 4th Clutch and Drive Motor/Generator Stator Cooling Regulator Valve
541 - Variable Low and 1-2 Reverse and 4th Clutch and Drive Motor/Generator Stator Cooling Regulator Feedback Valve
542 - Variable Low and 1-2 Reverse and 4th Clutch and Drive Motor/Generator Stator Cooling Regulator Valve Spring
543 - Variable Low and 1-2 Reverse and 4th Clutch and Drive Motor/Generator Stator Cooling Regulator Feedback Valve Bushing
544 - Valve Retaining Clip
545 - Shift Solenoid Valve
546 - Shift Solenoid Valve Spring
547 - 1-2 Reverse and 4th Clutch Regulator Boost Valve
548 - 1-2 Reverse and 4th Clutch Regulator Boost Valve Spring
549 - Modulated Fluid Pressure Orifice
550 - Variable Low and 1-2 Reverse and 4th Clutch and Drive Motor/Generator Stator Cooling Regulator Feedback Valve Retainer
Case and Associated Parts
1 - Control Valve Body Cover Bolt M6 x 30 mm Qty: 15
2 - Control Valve Body Cover Assembly
3 - Control Valve Body Cover Gasket
4 - Generator/Drive Motor Position Sensor Bolt M5 x 16 mm Qty: 2
5 - Transmission Fluid Cooler Outlet Pipe Assembly
6 - Transmission Fluid Cooler Outlet Washer
7 - Transmission Fluid Cooler Outlet Seal
8 - Control Valve Body Bolt M6 x 80 mm Qty: 1
9 - Variable Drive Pulley Retaining Nut
10 - A/Trans Wiring Extension Harness Assembly
11 - Control Valve Body Bolt M6 x 65 mm Qty: 5
12 - Control Solenoid Valve Spring
13 - Control Valve Body Cover Wiring Connector Hole Seal
14 - Control Valve Body Bolt M6 x 75 mm Qty: 4
15 - Control Valve Body Bolt M6 x 42 mm Qty: 6
16 - Control Solenoid (w/Body and TCM) TEHCM Valve Assembly
17 - Control Solenoid Valve Filter Plate
18 - Control Valve Channel Plate Assembly
19 - Control Valve Body Bolt M6 x 48 mm Qty: 12
21 - Control Valve Body
22 - Control Valve Body Ball Check Valve Qty: 2
23 - Front Differential Bearing Spacer
24 - Front Drive Pinion Gear Shaft Thrust Bearing Assembly (LHS)
25 - Front Differential Drive Pinion Gear Bearing Thrust Washer - Selective
26 - Front Differential Drive Pinion (w/Transfer Gear) Gear Assembly
27 - Front Differential Drive Pinion Gear Bearing Thrust Washer (RHS)
28 - Front Drive Pinion Gear Shaft Thrust Bearing Assembly Selective (RHS)
29 - Front Differential Transfer Drive Gear Fluid Passage Tube Assembly
30 - A/Trans Wiring Harness Assembly
31 - Wiring Connector Seal
35 - Transmission Fluid Fill Tube Cap Assembly
36 - Transmission Fluid Fill Tube
37 - A/Trans Fluid Fill Tube Bolt M6 x 20 mm Qty: 1
38 - Transmission Fluid Filler Tube Seal
39 - A/Trans Torque Dampener Assembly
40 - Torque Dampener and Differential Housing Bolt M10 x 35 mm Qty: 17
41 - Torque Dampener and Differential (w/Fluid Pump) Housing Assembly
42 - A/Trans Pump Fluid Outlet Seal Assembly
43 - A/Trans Output Speed Sensor Bolt M6 x 30 mm Qty: 1
44 - A/Trans Output Speed Sensor Assembly
45 - Front Differential Carrier Assembly (FWD)
46 - Torque Dampener Housing Outer Seal
47 - A/Trans Case Assembly
48 - A/Trans Case Cover Gasket
49 - A/Trans Wiring Harness Shield Bolt M6 x 20 mm Qty: 1 External
50 - A/Trans Case Cover Assembly
51 - A/Trans Case Cover Bolt M8 x 30 mm Qty: 11
