ABS Warning Light Circuit (Does Not Light Up)

ABS Warning Light does not Come ON

DESCRIPTION

If the ECU detects trouble, it will prohibit ABS control, turn on the ABS warning light, and store a DTC. Connect terminals TC and CG of the DLC3 to make the ABS warning light blink and output a DTC.

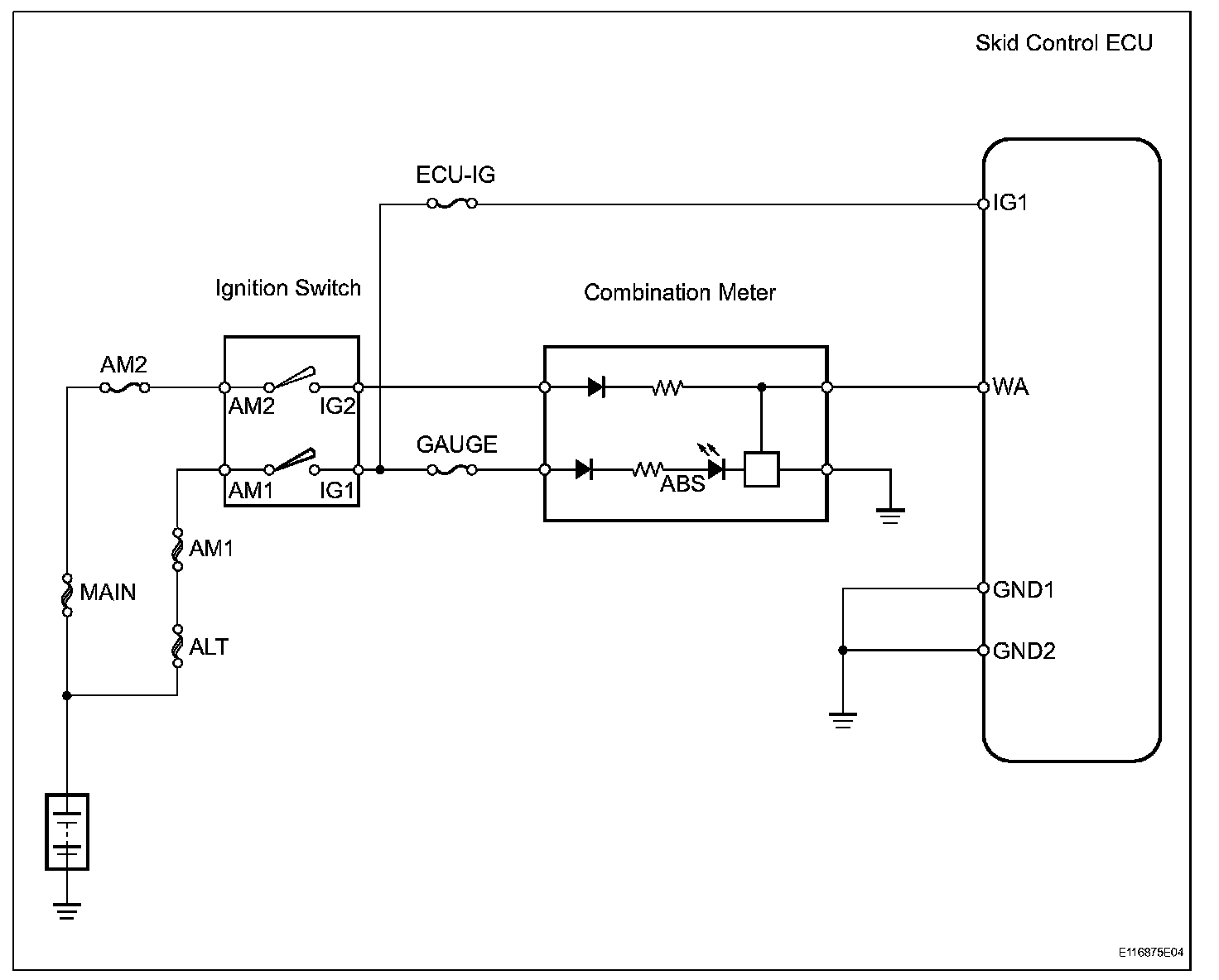

Wiring Diagram:

Step 1:

Step 1(Continued)-3:

Step 4:

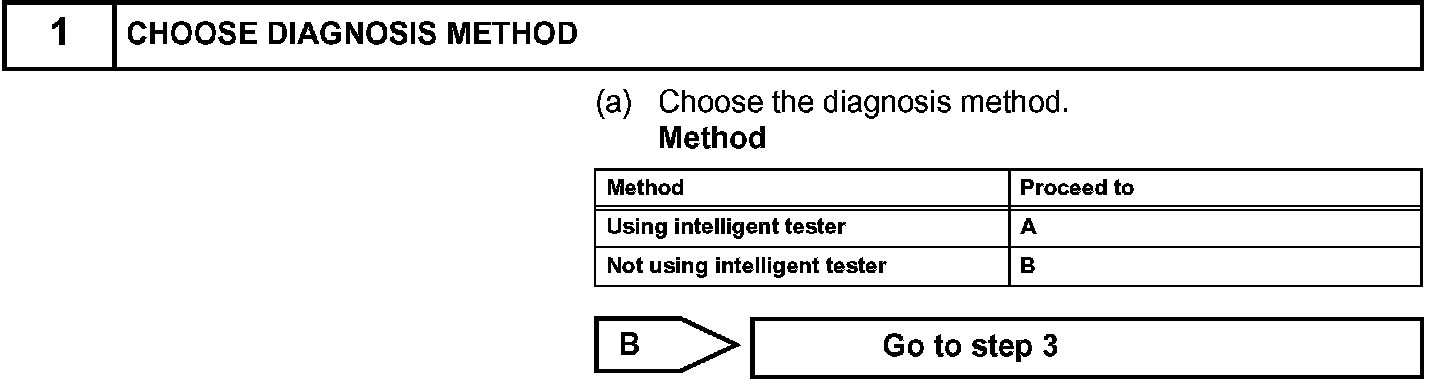

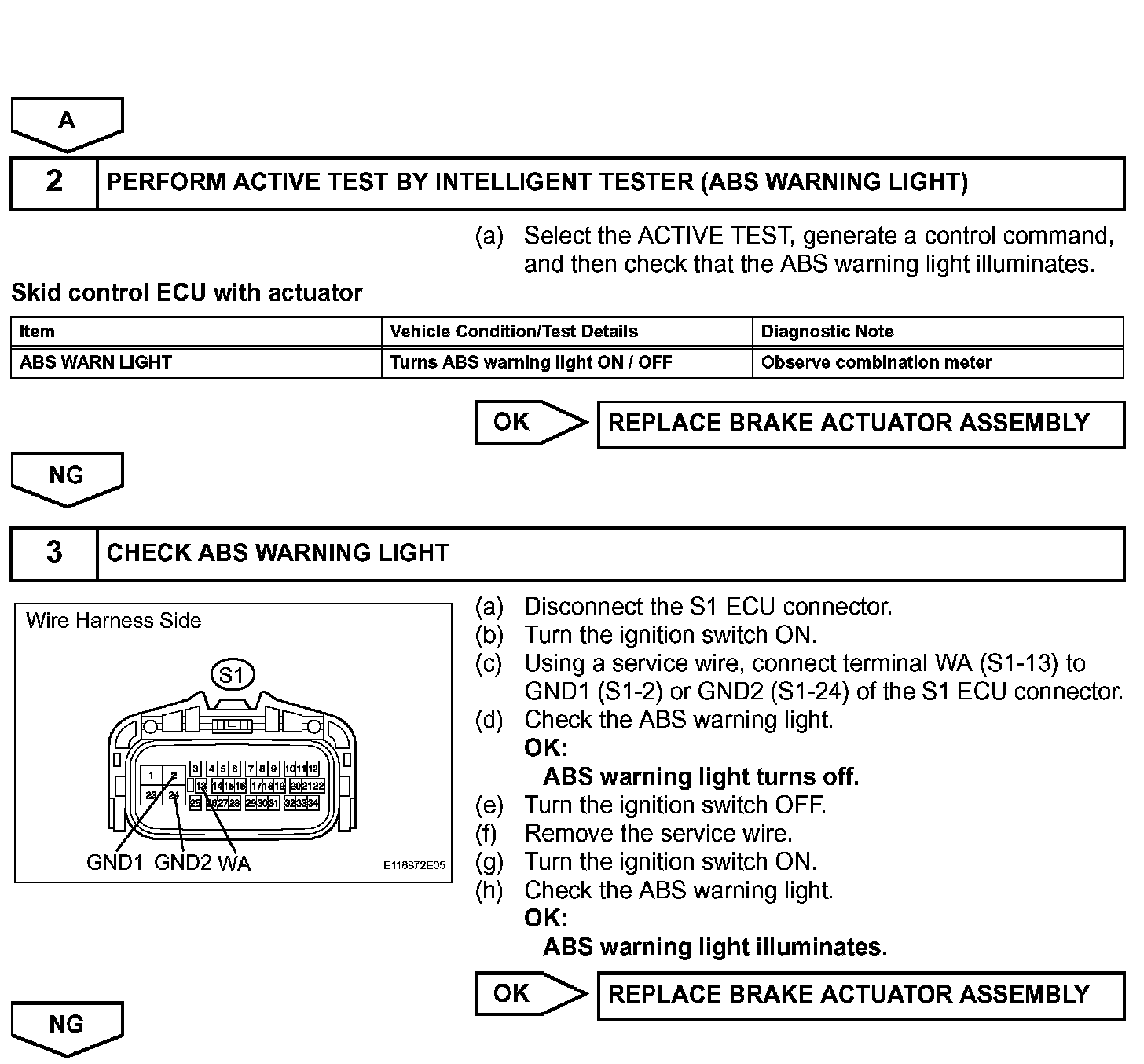

INSPECTION PROCEDURE
