Electrical Diagrams

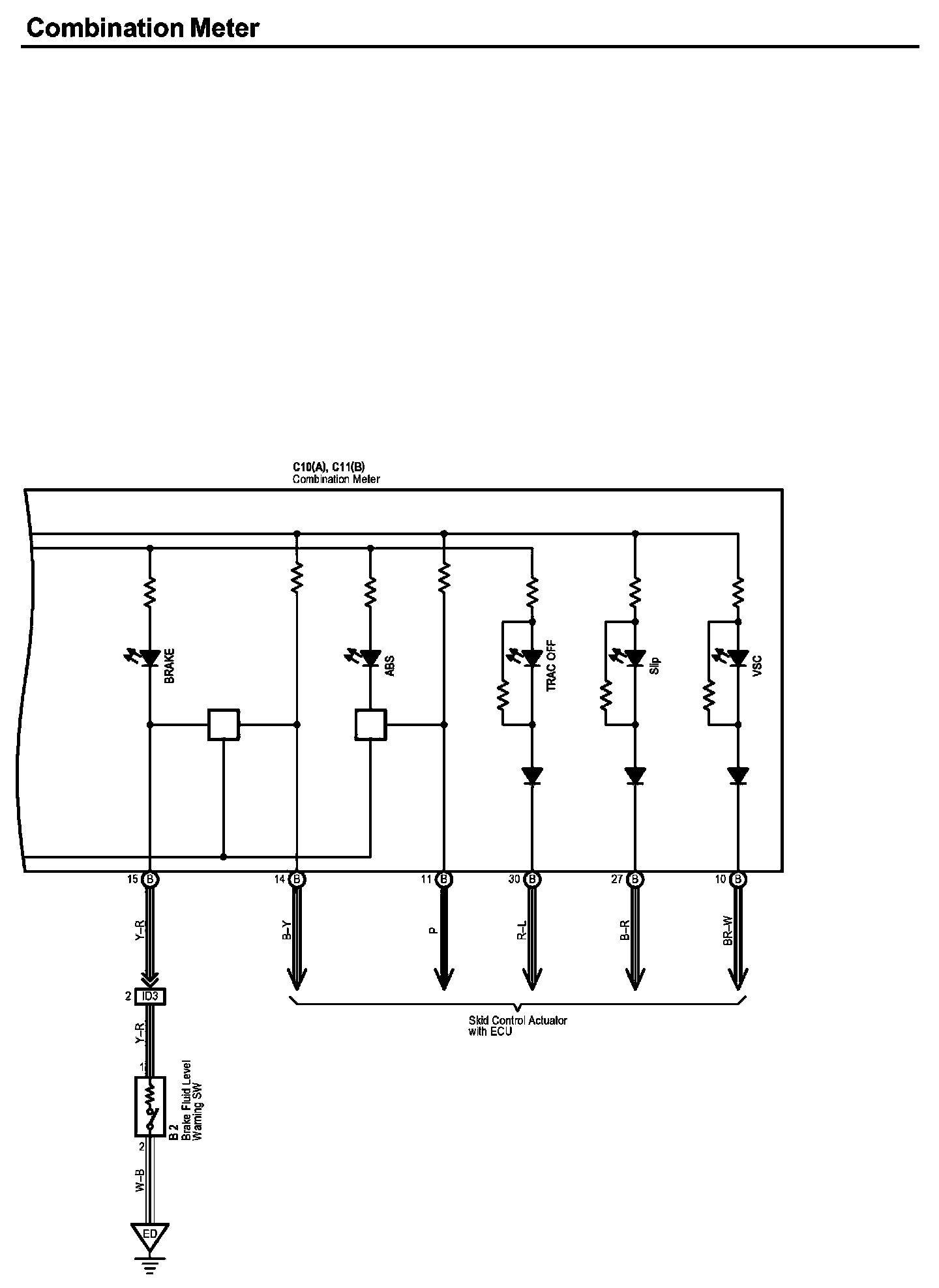

Combination Meter (Part 1):

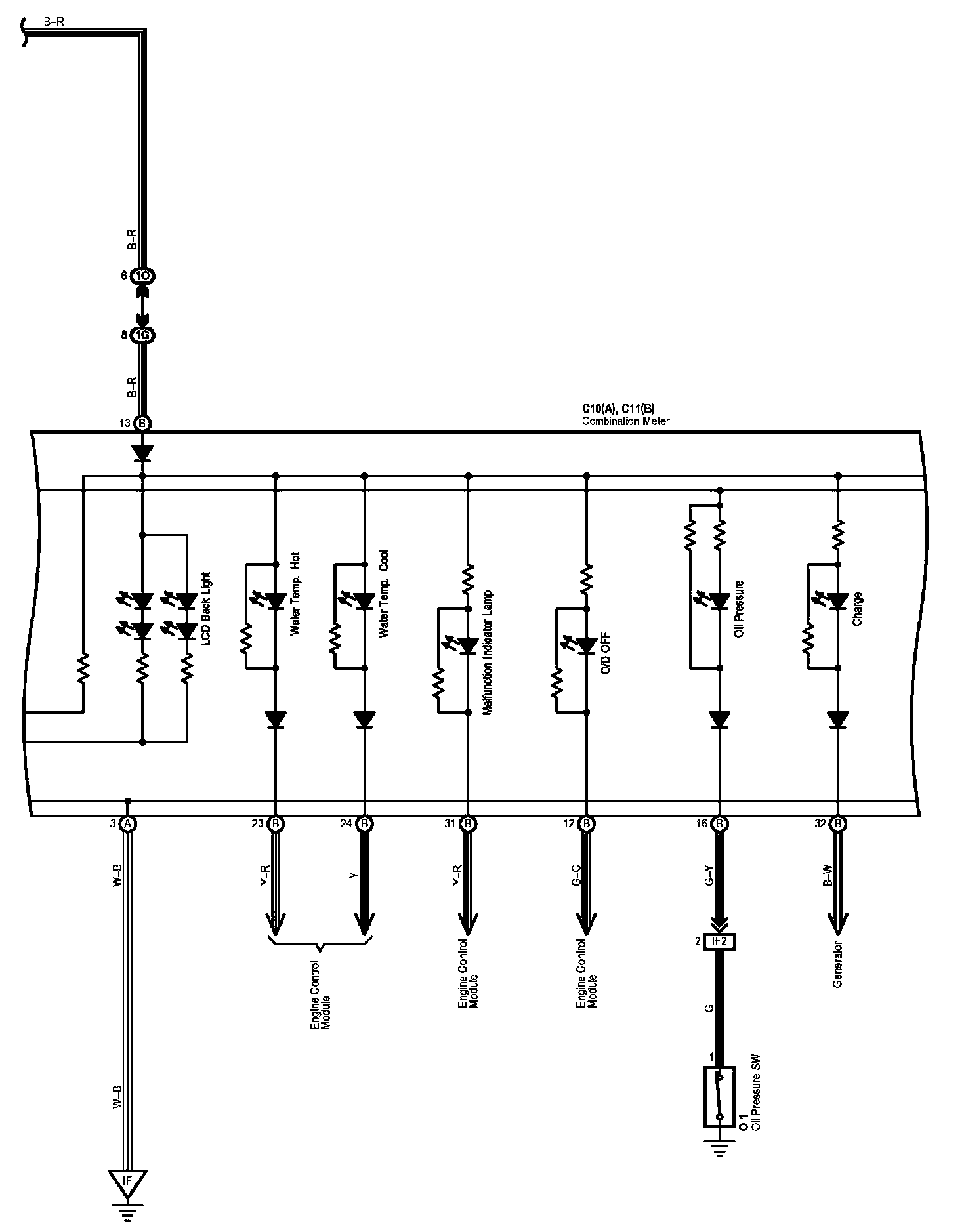

Combination Meter (Part 2):

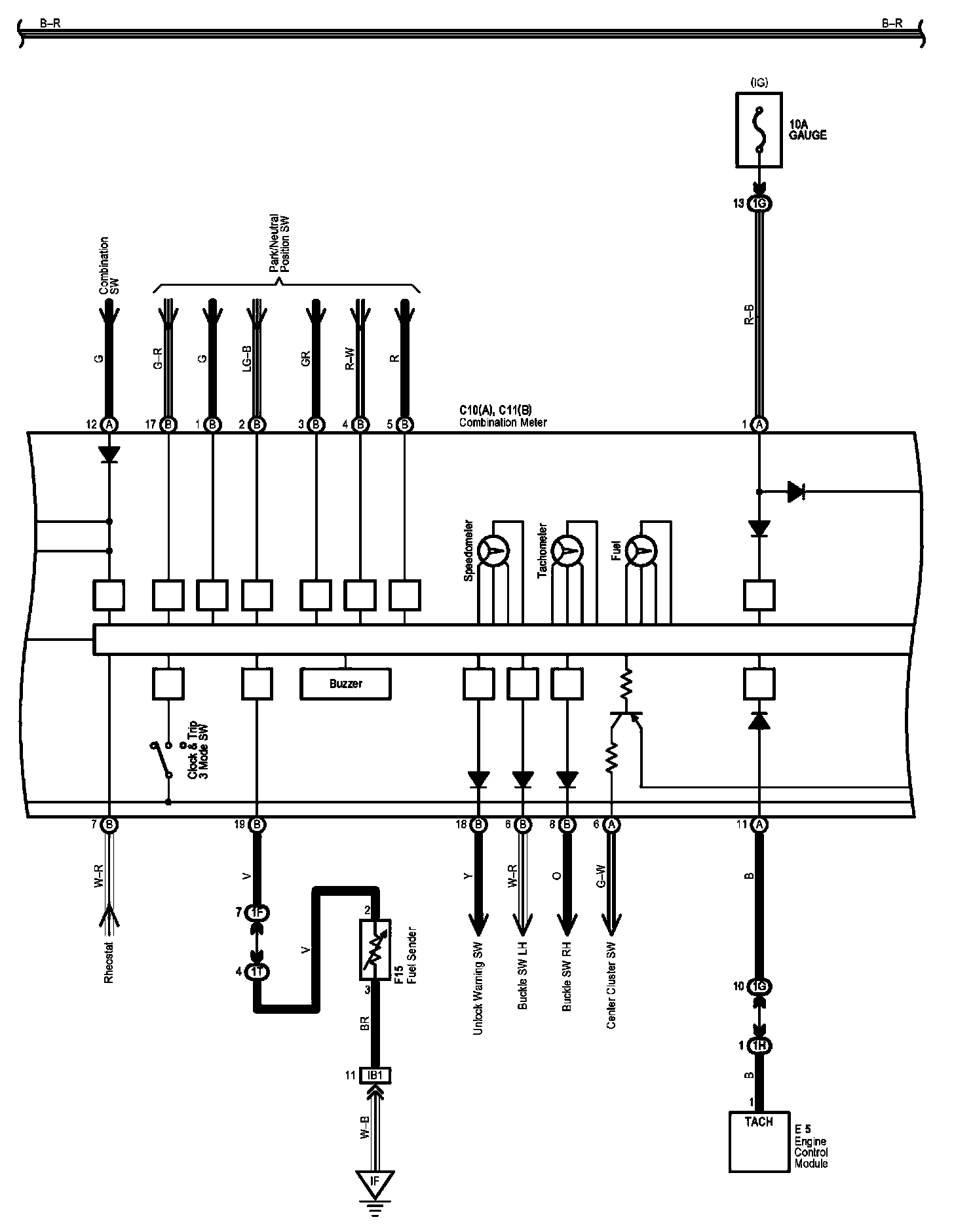

Combination Meter (Part 3):

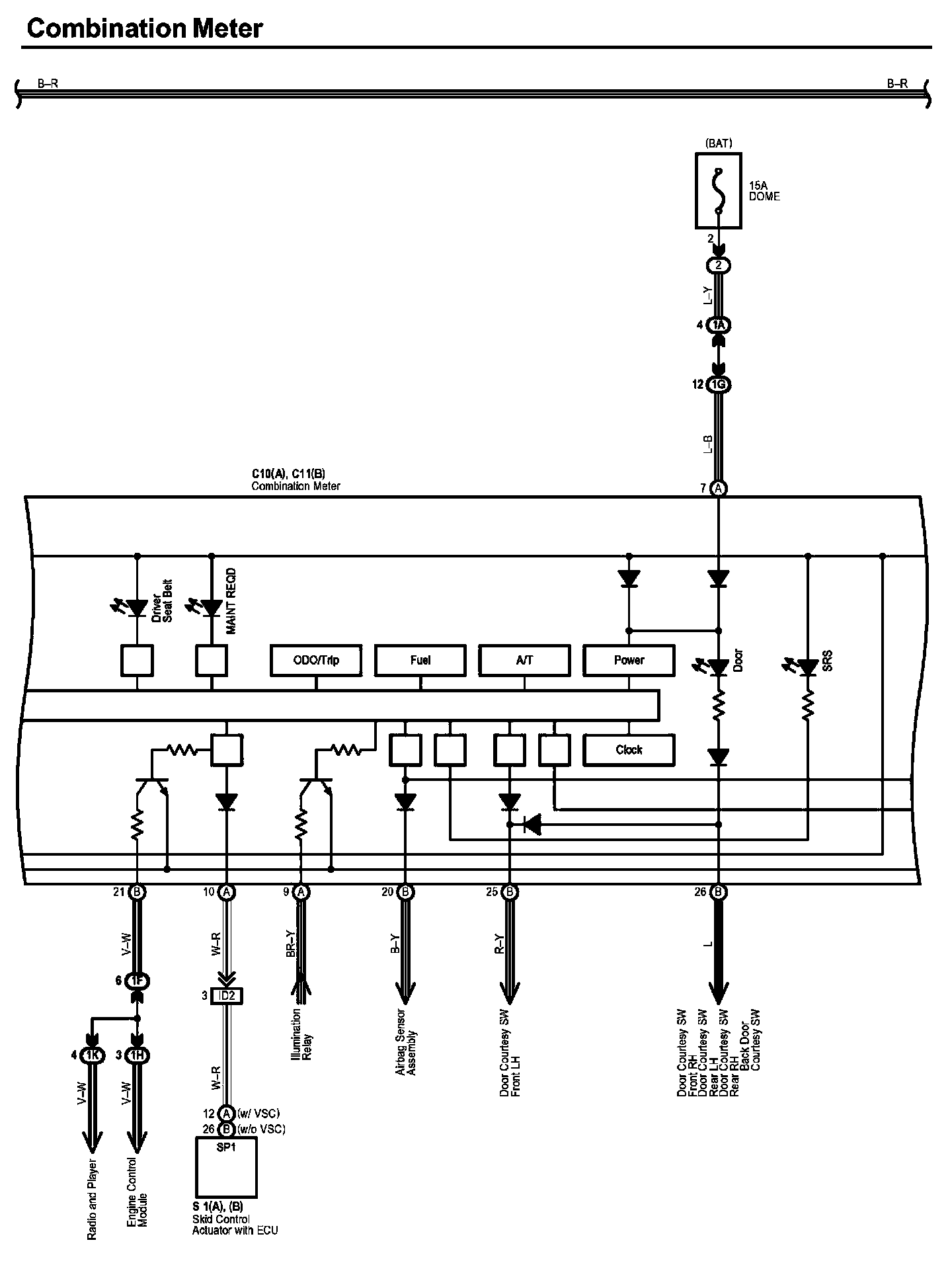

Combination Meter (Part 4):

Combination Meter (Part 5):

Diagram Legend:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at the Vehicle level Connector Views. Connector Views
