Electrical Diagrams

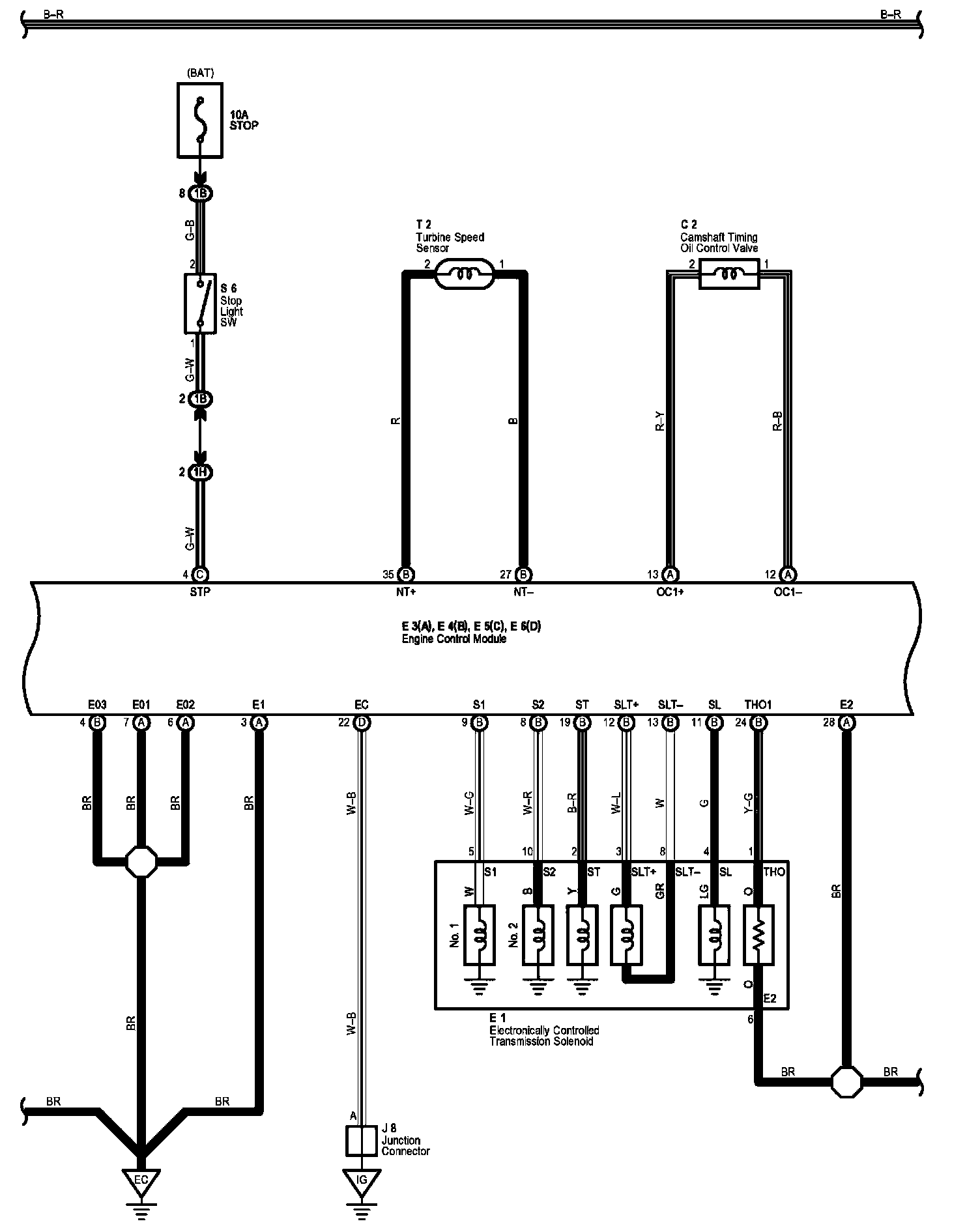

ECT And A/T Indicator (Part 1):

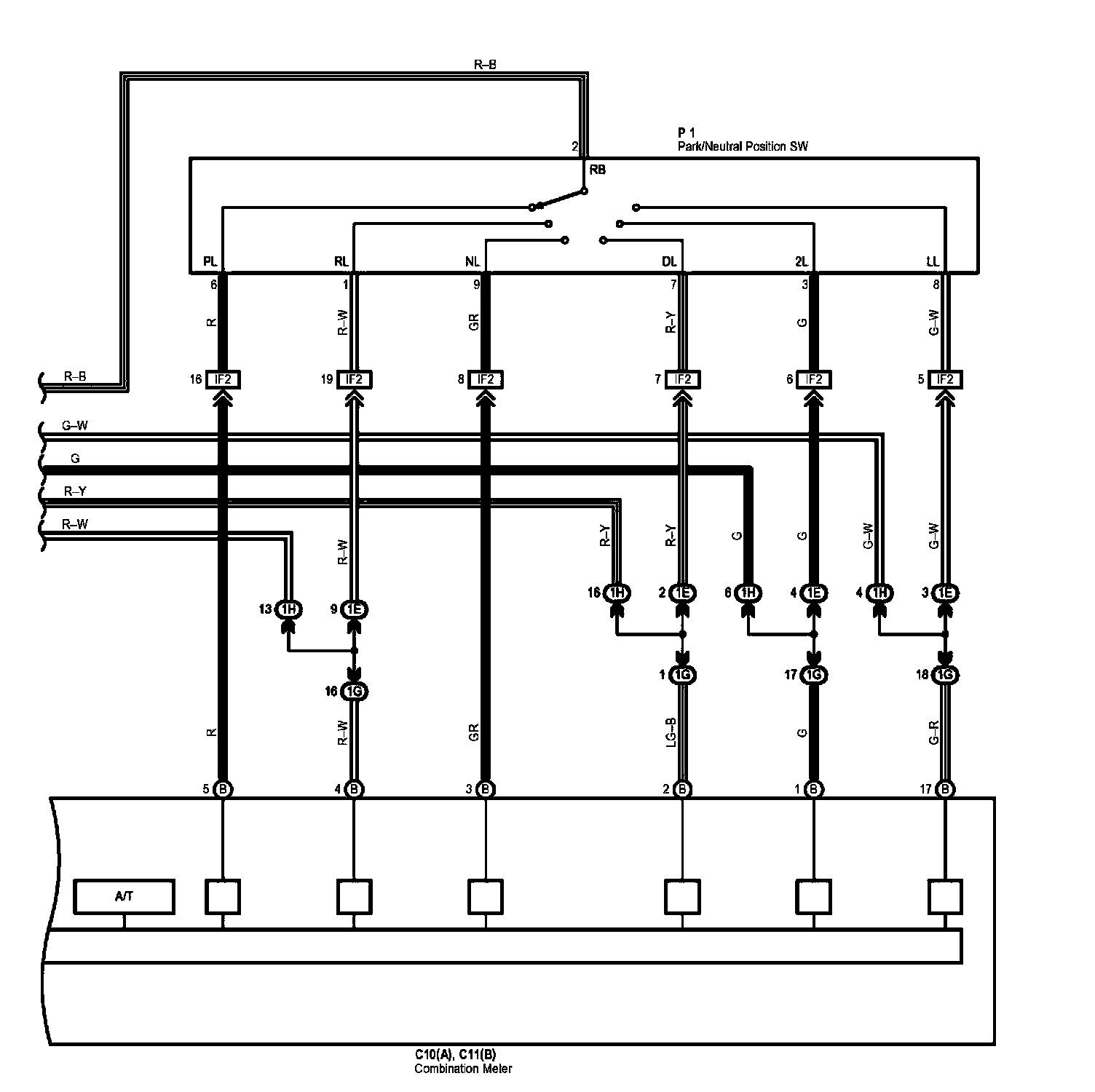

ECT And A/T Indicator (Part 2):

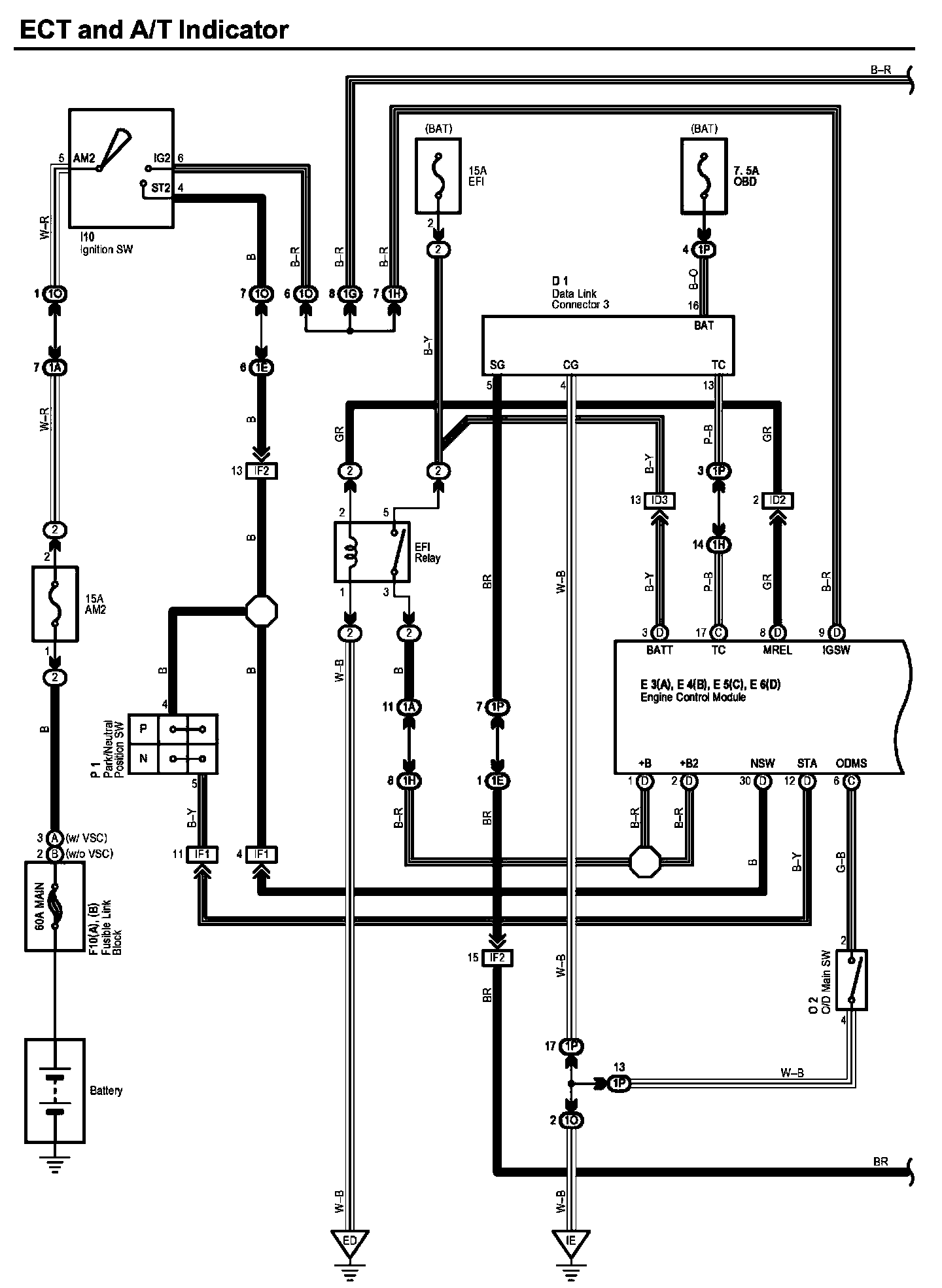

ECT And A/T Indicator (Part 3):




ECT And A/T Indicator (Part 4):

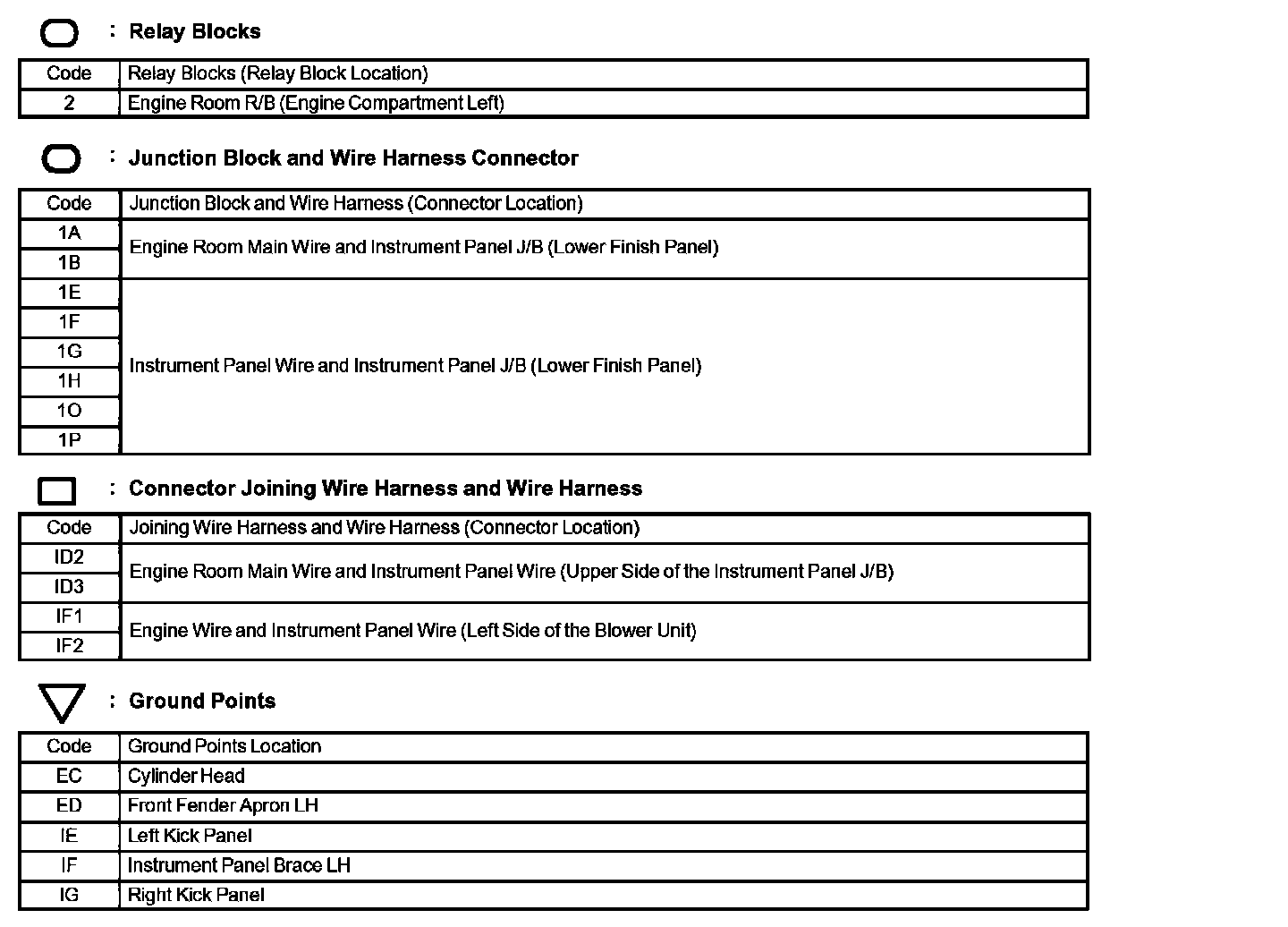

Diagram Legend:






Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at the Vehicle level Connector Views. Connector Views
