SRS Warning Light Remains ON

SRS Warning Light Remains ON

DESCRIPTION

The SRS warning light is located on the combination meter.

When the SRS is normal, the SRS warning light comes on for approximately 6 seconds after the ignition switch is turned from the LOCK position to ON position, and then turns off automatically.

If there is a malfunction in the SRS, the SRS warning light lights up to inform the driver of the abnormality. When terminal TC and CG of the DLC3 are connected, the DTC is indicated by blinking the SRS warning light.

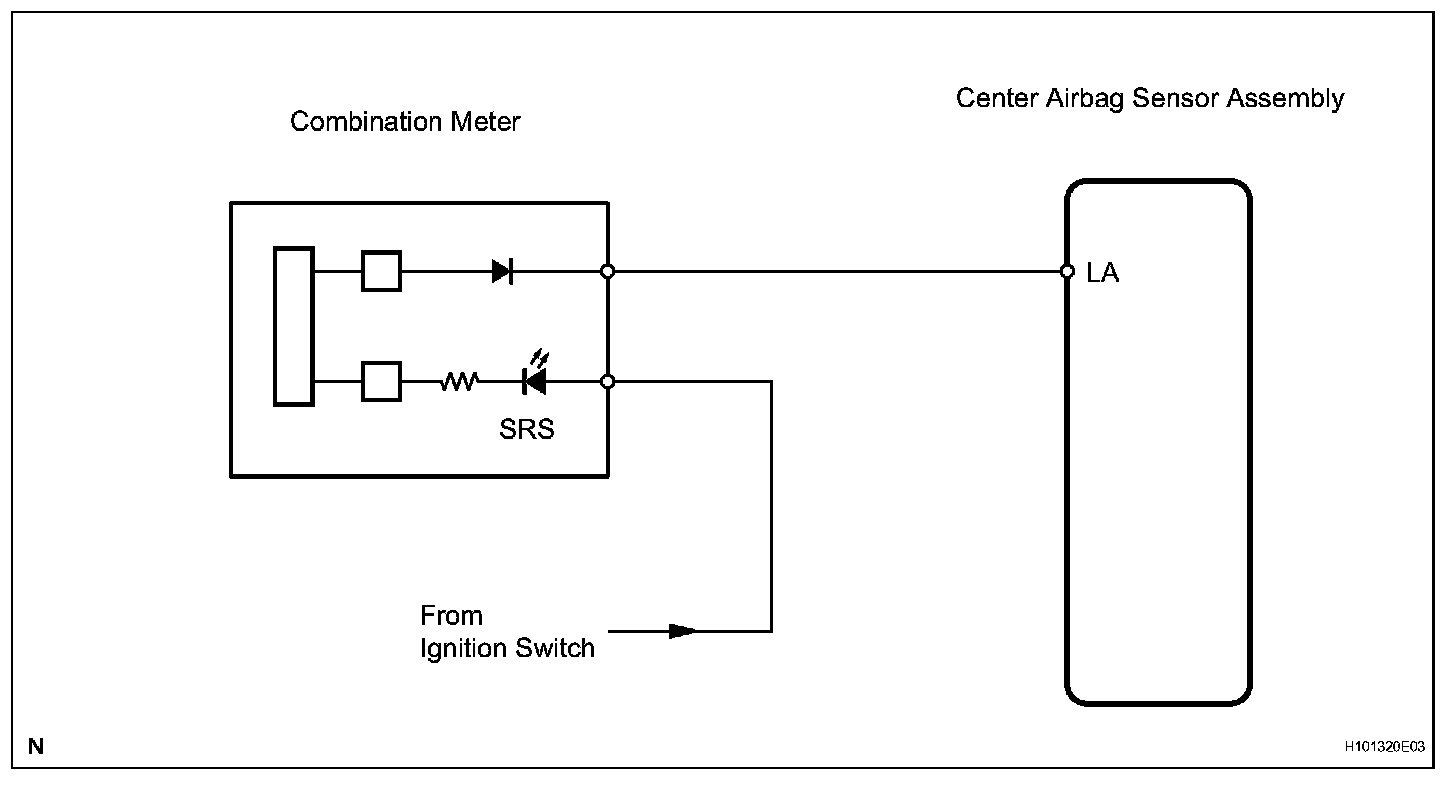

Wiring Diagram:

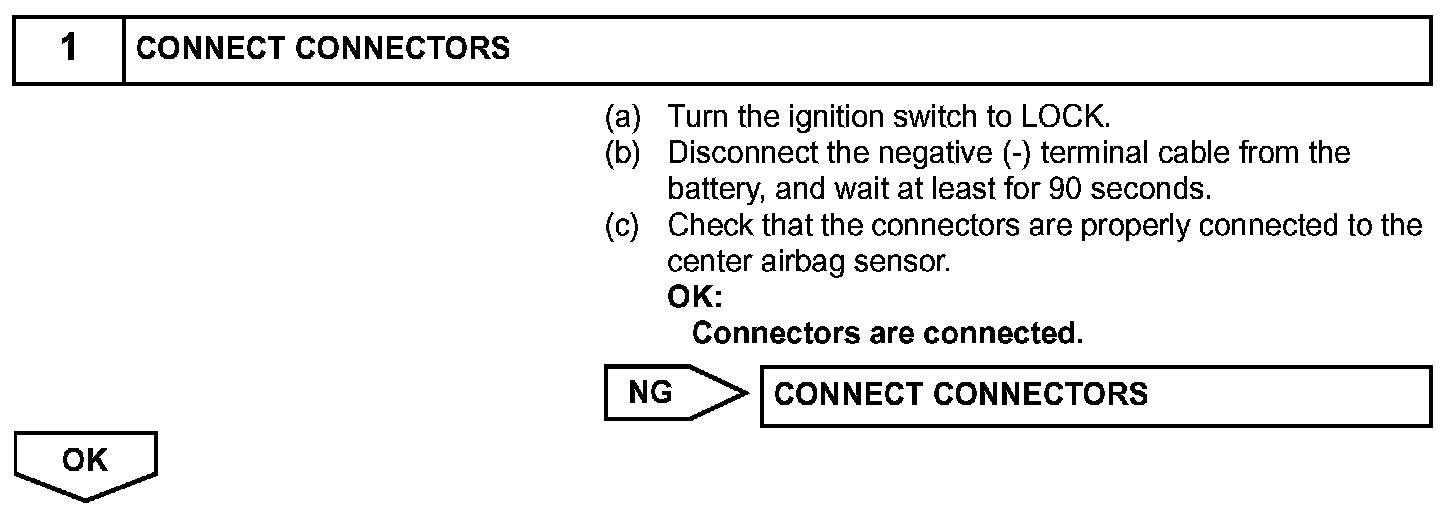

Step 1:

Step 2-4:

Step 4(continued)-5:

INSPECTION PROCEDURE
